High Speed Centrifuge with Quiet Operation for Comfortable Use

Applications:Hospitals,Veterinary clinics,Food labs,Universities & colleges, Pharmaceutical labs, Cell culture labs,Infant stations
Max.Speed16500rpm
Max.RCF19480xg
Max.Capacity10*5ml
Matched RotorsFixed angle rotors
DisplayLCD
Model Number:MI16 (old model:TG16W)
Certification:CE, ISO13485,ISO9001, SFDA
1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty.
  • Description
  • Video
  • Technical Specifications
  • Rotors and Accessories
  • Competitive Advantage

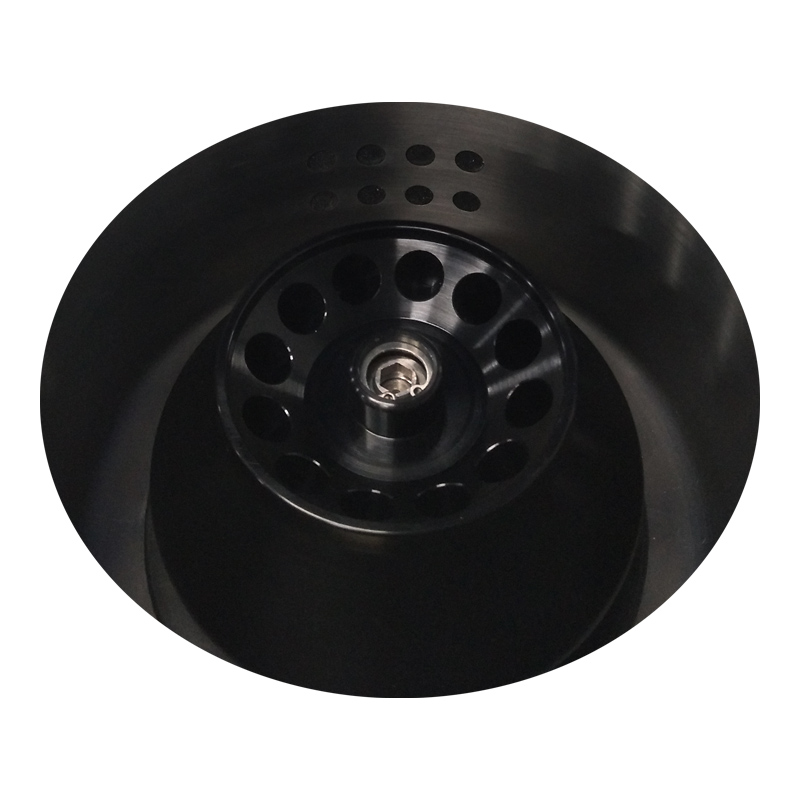

The MI16 micro centrifuge is equipped with fixed-angle rotors, from 2ml to 5ml micro-litre tubes.

It is a versatile tool in the laboratory and are used in many different applications where small volumes of samples need to be separated or processed, which is commonly used in laboratories for a variety of applications, such as separation of biological samples, DNA analysis, cell culture, biochemistry.

Design

● Metal housing, metal lid, and stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.

● Observations window on lid for speed calibration and noise measurement.

● Microprocessor control with frequency conversion A.C. motor drive

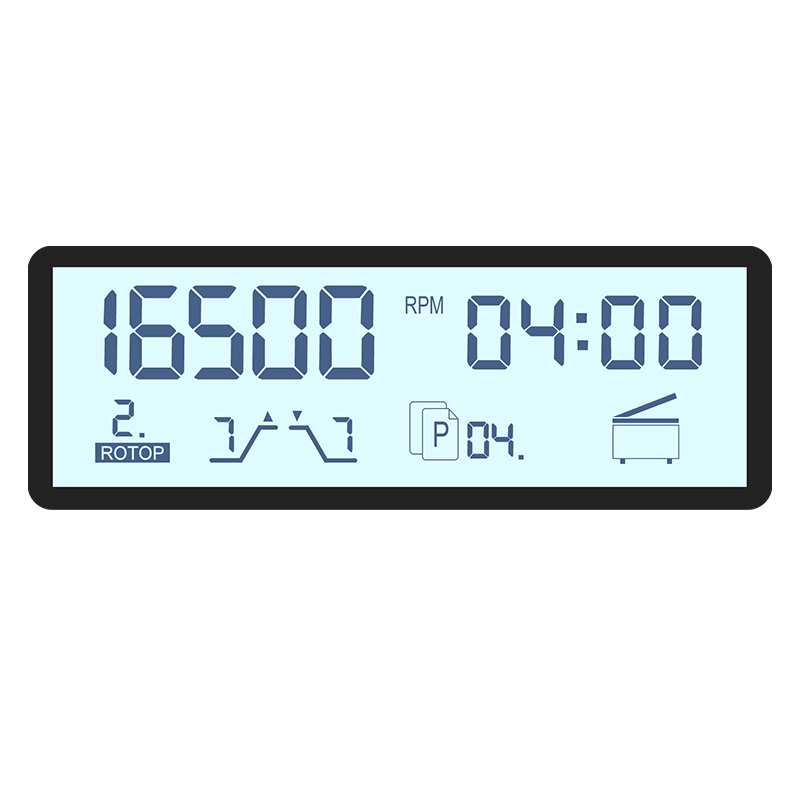

● LCD Display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.

● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.

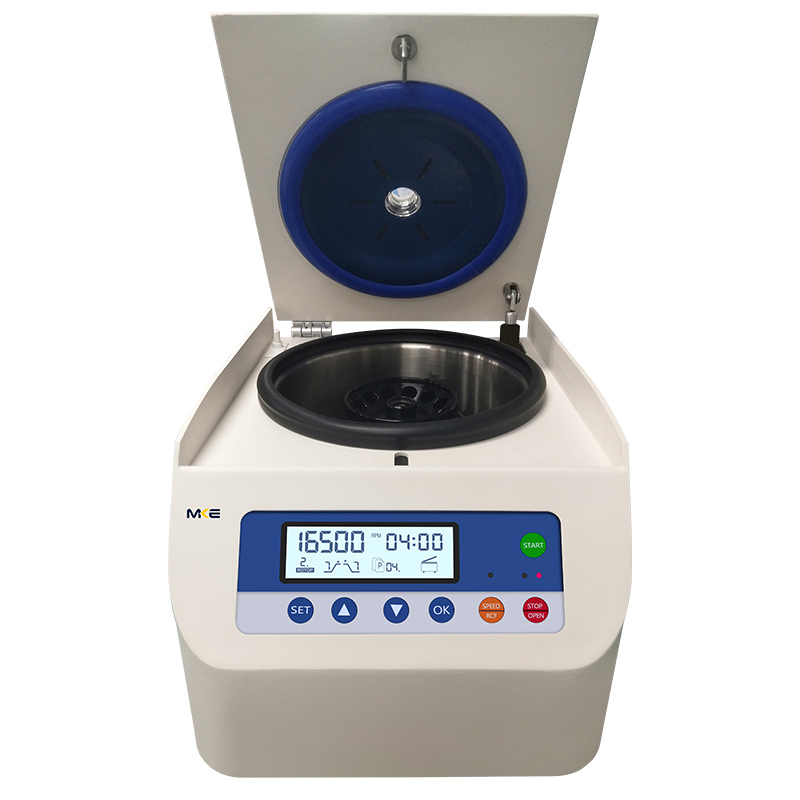

MI16 laboratory low noise high speed micro centrifuge

User friendless

● 3 levels damping for anti vibration. Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.

● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.

● Automatic lid-locking and holding during rotor run

● Easily exchangeable rotors

● Automatic troubleshooting with indication of error code and alarm on the screen.

● “Mute”patent technology. Noise level lower than 55 decibel at the highest rotational speed.

● Speed up to 16500rpm depends on rotor type

MI16 laboratory low noise high speed micro centrifuge

Safety

● Produced according to international safety regulations (e.g. IEC 61010)

● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.

● Emergency lid-lock release when power failure.

● Gas hinge for lid drop protection.

● Safety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.

MI16 laboratory low noise high speed micro centrifuge

Speed range(rpm)0-16500rpm adjustableTime range1-99minutes 59s adjustable
Max Capacity(ml)10*5mlSpeed accuracy±10r/min
RCF range (xg)0-19480xg adjustableDimension(mm)525*470*330mm
Noise(dBA)≦55dB(A)Net weight(without rotor)13KGS
ACC/DEC1-10 ratesPower supplyAC220V,50HZ,10A, 600W
No.ItemCapacityMax. speedMax.RCFNote
NO.12Angle rotor12×1.5/2.2ml16500r/min19175xgPP/PC tube
Adapter12×0.5、0.2mlPP/PC tube
NO.23Angle rotor10×5ml16500r/min19480xgPP/PC tube
Adapter10×1.5mlPP/PC tube
Adapter10×0.5/0.2mlPP/PC tube
未命名-4

1. Professional centrifuge manufacturer, competitive price.

2. ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.

3. Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.

4. We can also offer customized solutions for clients' special requirements.

5. Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
