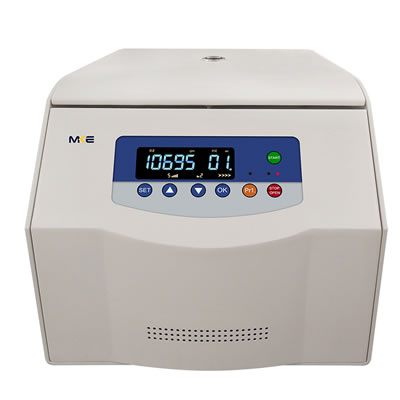

Laboratory Centrifuge Machine Table Top High Speed Fixed Angle Rotor Lab

Applications:Hospitals,Veterinary clinics,Food labs,Universities & colleges, Pharmaceutical labs, Cell culture labs,Infant stations
Max.Capacity4*100ml fixed angle rotor
Matched RotorsFixed angle rotors
Model Number:T20-M (old model:TG20WS)
Certification:CE, ISO13485,ISO9001, SFDA
Warranty1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty.
  • Description
  • Video
  • Technical Specifications
  • Rotors and Accessories
  • Competitive Advantage

Our high speed centrifuge T21-M has a wide range of fixed-angle rotors, this all-purpose centrifuge can hold PCR tubes, test tubes, round-bottom tubes, and it provides extraordinary capacity with 4 x 100 ml in a fixed angle rotor.

With an extensive range of rotors and accessories and high RCF values up to 31,061 x g, it is suitable for a wide variety of applications.


● Metal housing, metal lid, and stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.

● Observations window on lid for speed calibration and noise measurement.

●Microprocessor control with frequency conversion A.C. motor drive

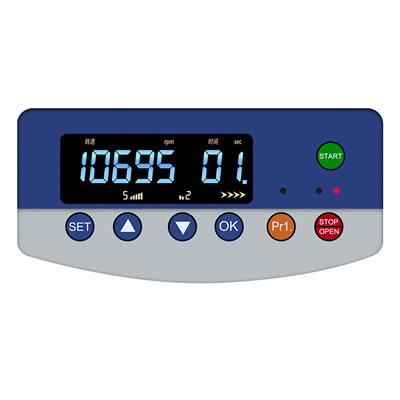

●LCD Display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.

● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.

T20-M Desktop

User friendly

● 3 levels damping for anti vibration. Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.

● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.

● Automatic lid-locking and holding during rotor run

● Automatic rotor identification system, coded rotor identification prevents the rotor from over speeding.

● Easily exchangeable rotors, special rotor connector which makes it easy to load and unload rotor.

● Automatic troubleshooting with indication of error code and alarm on the screen.

● “Mute”patent technology. Noise level lower than 58 decibel at the highest rotational speed.

● peed up to 21000rpm depends on rotor type

T20-M Desktop


● Produced according to international safety regulations (e.g. IEC 61010)

● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.

● Emergency lid-lock release when power failure.

● Gas hinge for lid drop protection.

● Safety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.

T20-M Desktop

Speed range(rpm)0-21000rpm adjustableSpeed accuracy±10rpm
Max Capacity(ml)4*100mlRCF range (xg)0-31061xg adjustable
Display7”LCDTime range0-99minutes 59s adjustable
Noise(dBA)≦58dB(A)Acceleration /Deceleration rates1-- 10
Dimension(mm)470x345x295mmMotorFrequency Converter motor
Net weight(without rotor)30KGSPower supplyAC220V,50HZ,10A,600W

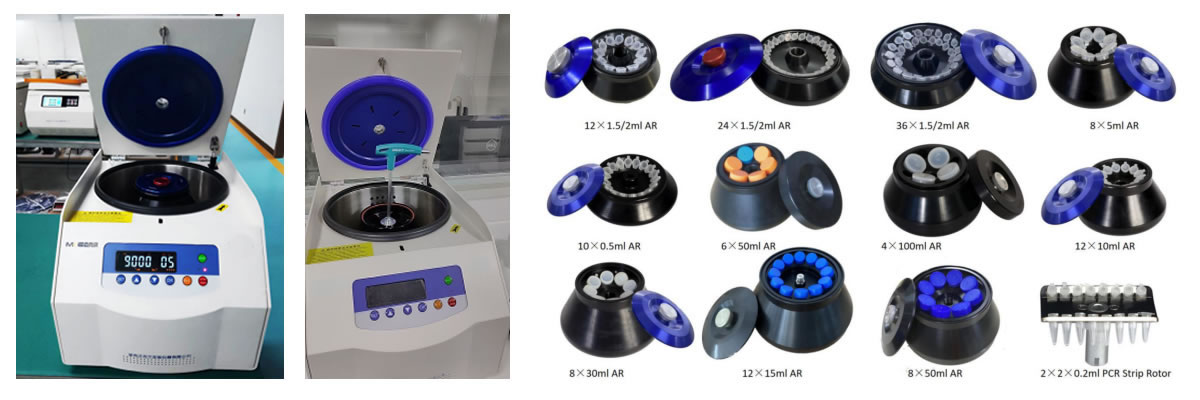

NO.13Angle rotor12×1.5/2.2ml21000r/min31061xgPP/PC tube
Adapter12×0.5/0.2mlPP/PC tube
NO.24Angle rotor24×1.5/2.2ml16000r/min22896xgPP/PC tube
Adapter24×0.5/0.2mlPP/PC tube
NO.35Angle rotor48×1.5/2.2ml14000r/min20378xgPP/PC tube
Adapter48×0.5/0.2mlPP/PC tube
NO.46Angle rotor12×5ml16000r/min18317xgPP/PC tube
Adapter12×1.5mlPP/PC tube
Adapter12×0.5/0.2mlPP/PC tube
NO.57Angle rotor12×8×0.2ml14000r/min23120xgPCR8 PCR 8-tube strips
NO.68Angle rotor12×10ml15000r/min23120xgPP/PC tube
Adapter12×5mlPP/PC tube
Adapter12×1.5mlPP/PC tube
Adapter12×0.5/0.2mlPP/PC tube
NO.79Angle rotor6×50ml13000r/min17005xgPP/PC tube
Adapter6×15mlPP/PC tube
Adapter6×3×1.5mlPP/PC tube
NO.810Angle rotor10×15ml13000r/min20595xgPP/PC tube
Adaptor10×5mlPP/PC tube
Adapter10×1.5/0.5/0.2mlPP/PC tube
NO.911Angle rotor4×100ml11000r/min13280xgPP/PC tube
Adapter4×50mlPP/PC tube
Adapter4×15/10mlPP/PC tube
Adapter4×5/1.5mlPP/PC tube

1. Professional centrifuge manufacturer, competitive price.

2. ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.

3. Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.

4. We can also offer customized solutions for clients' special requirements.

5. Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
