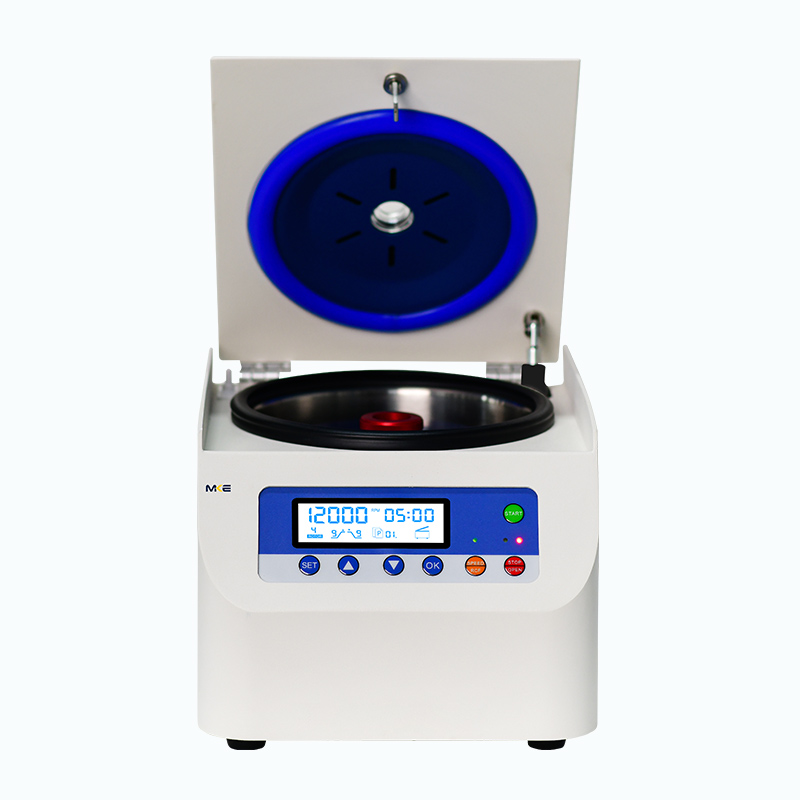

Efficient Hematocrit Centrifuge High Speed for Laboratory

Applications:Hospitals,Veterinary clinics,Food labs,Universities & colleges, Pharmaceutical labs, Cell culture labs,Infant stations
Max.Speed16500rpm
Max.RCF19480xg
Max.Capacity10*5ml
Matched RotorsFixed angle rotors
DisplayLED Display
Model Number:MI16 (old model:TG16W)
Certification:CE, ISO13485,ISO9001, SFDA
1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor.Free replacement parts and shipping within warranty.
  • Description
  • Video
  • Technical Specifications
  • Rotors and Accessories
  • Competitive Advantage

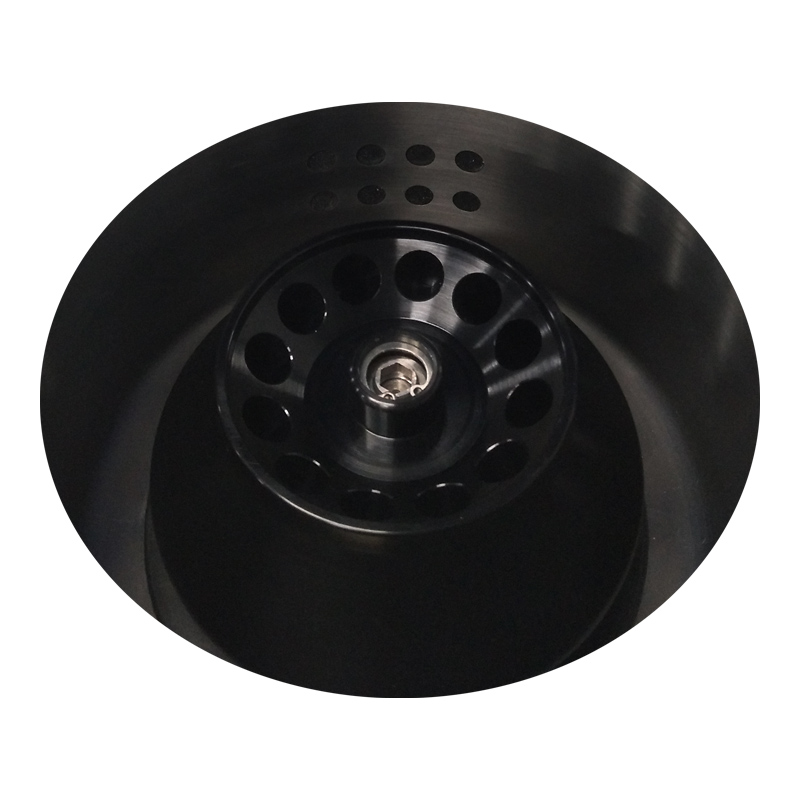

The TG16W microcentrifuge is furnished with fixed-angle rotors suitable for 2ml to 5ml microcentrifuge tubes. It finds extensive utility across laboratories, chemical facilities, hospitals, and in any domain requiring high-speed functionality for micro-capacity tasks. Additionally, it features a rotor specially designed for centrifuging micro-hematocrit capillary tubes, accommodating up to 24 capillaries per run.

As a versatile laboratory instrument, it serves various purposes, including the separation and processing of small sample volumes. This centrifuge is a staple in laboratories for a multitude of applications such as biological sample separation, DNA analysis, cell culture, and biochemistry tasks.

Design

● Metal housing, metal lid, and stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.

● Observations window on lid for speed calibration and noise measurement.

● Microprocessor control with frequency conversion A.C. motor drive

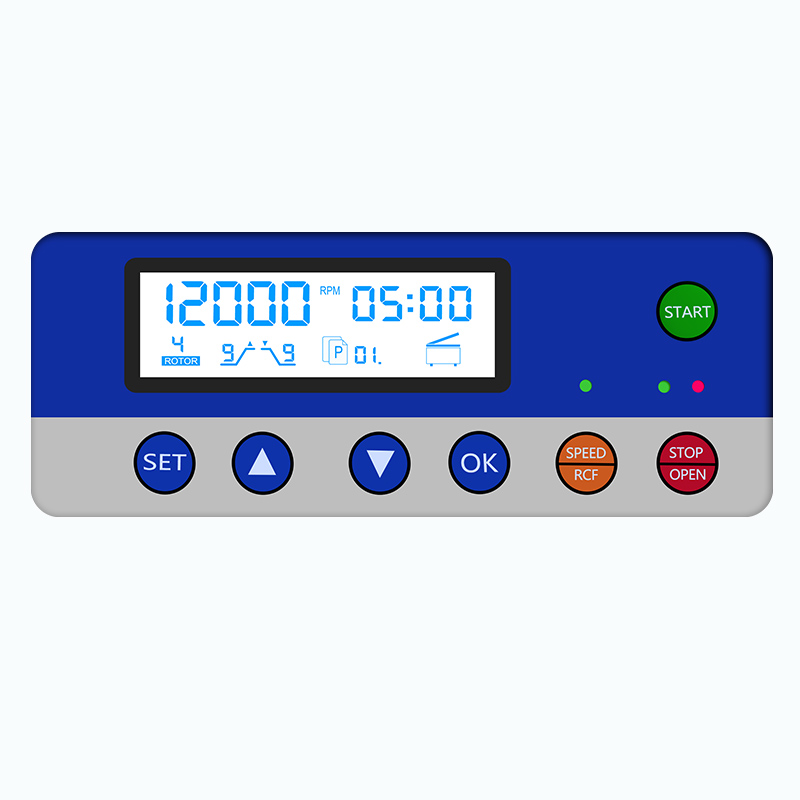

● LED Display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.

● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.

未命名-5
MI16H Benchtop

User friendly

● 3 levels damping for anti vibration. Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.

● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.

● Automatic lid-locking and holding during rotor run

● Easily exchangeable rotors

● Automatic troubleshooting with indication of error code and alarm on the screen.

● “Mute”patent technology. Noise level lower than 55 decibel at the highest rotational speed.

● Speed up to 16500rpm depends on rotor type

Safety

● Produced according to international safety regulations (e.g. IEC 61010)

● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.

● Emergency lid-lock release when power failure.

● Gas hinge for lid drop protection.

● Safety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.

1685085672671463

Speed range(rpm)0-16500rpm adjustableTime range1-99minutes 59s adjustable
Max Capacity(ml)10*5mlSpeed accuracy±10r/min
RCF range (xg)0-19480xg adjustableDimension(mm)340*260*220mm
Noise(dBA)≦55dB(A)Net weight(without rotor)15KGS
ACC/DEC1-10 ratesPower supplyAC220V,50HZ,10A, 400W
No.ItemCapacityMax. speedMax.RCFNote

NO.1

01

Angle rotor12×1.5/2.2ml16500r/min19175xgPP/PC tube
Adapter12×0.5/0.2mlPP/PC tube

NO.2

02

Angle rotor10×5ml16500r/min19480xgPP/PC tube
Adapter10×1.5mlPP/PC tube

NO.3

03

Capillary  rotor24 pieces12000r/min13684xgCapillary tube
1698406097551643

1.Professional centrifuge manufacturer, competitive price.

2.ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.

3.Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.

4.We can also offer customized solutions for clients' special requirements.

5.Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
