HOT PRODUCTS
Low Noise Centrifuge 4000rpm with 5ml 20ml Angle Totor
| Applications: | Hospitals,Veterinary clinics,Food labs,Universities & colleges, Pharmaceutical labs, Cell culture labs,Infant stations |
| Max.Speed | 4000rpm |
| Max.RCF | 2680xg |
| Max.Capacity | 12*20ml angle rotor |
| Matched Rotors | Fixed angle rotors |
| Display | LCD |
| Model Number: | TDZ4-WS |
| Certification: | CE, ISO13485,ISO9001, SFDA |
| Warranty | 1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty. |
- Description
- Video
- Technical Specifications
- Rotors and Accessories
- Competitive Advantage
The benchtop centrifuge TDZ4-WS is available with numerous fixed-angle rotors. The extensive range of accessories can accommodate tubes from 2 ml to 50 ml, separation of blood samples in clinical tests , hospital laboratories, beauty salons, dental hospitals, etc.
Design
● Metal housing, metal lid, and 304# stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.
●Aluminum alloy rotor
●Observations window on lid for speed calibration and noise measurement.
●Microprocessor control with maintenance-free brushless DC motor

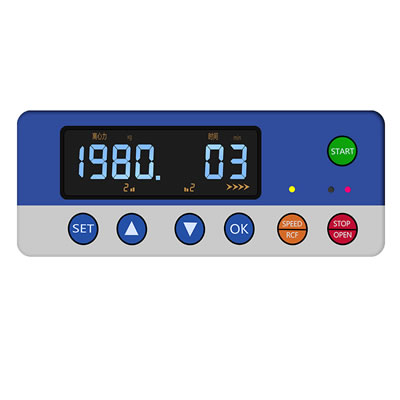

●LCD display the parameters of Speed, Timer, RCF.
User friendly
● Automatic lid-locking and holding during rotor run
● Easily exchangeable rotors
● Automatic troubleshooting with indication of error code and alarm on the screen.
● “Mute”patent technology. Noise level lower than 55 decibel at the highest rotational speed.
Safety
● Produced according to international safety regulations (e.g. IEC 61010)
● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
● Emergency lid-lock release when power failure.
● Gas hinge for lid drop protection.
● Safety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.
| Speed range(rpm) | 0-4000rpm adjustable | Speed accuracy | ±10rpm |
| Max Capacity(ml) | 12*20ml | RCF range (xg) | 0-2680xg adjustable |
| Noise(dBA) | ≦55dB(A) | Time range | 0-99minutes adjustable |
| Dimension(mm) | 430x320x270mm | Net weight(without rotor) | 18KGS |
| Power supply | AC220V,50HZ,5A,60W | ||

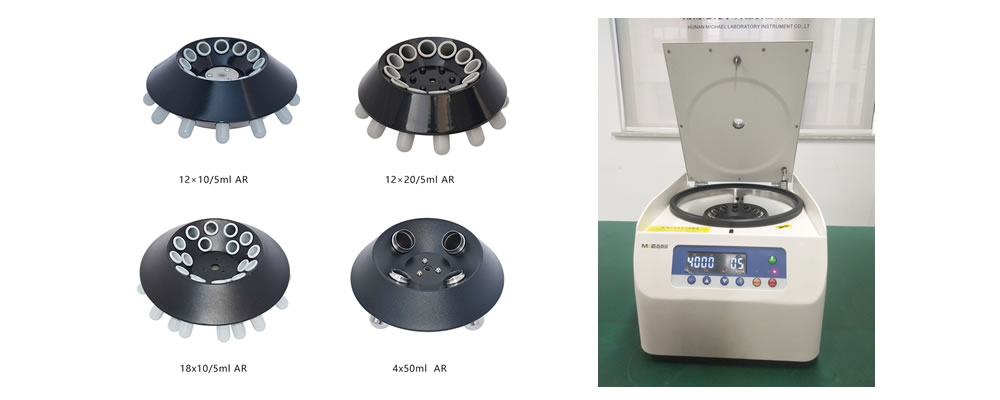

| No. | Rotor | Capacity | Max.speed | Max.RCF | Note |
NO.1 | Angle rotor | 12×10/5ml | 4000r/min | 2680xg | PP/PC tube / Vacuum blood collection tubes |
| Adapter | 12×2ml | Vacuum blood collection tubes | |||
NO.2 | Angle rotor | 12×20/15/10/5ml | 4000r/min | 2680xg | Vacuum blood collection tubes |
| Adapter | 12×2ml | Vacuum blood collection tubes | |||
NO.3 | Angle rotor | 18×10/5ml | 4000r/min | 2680xg | PP/PC tube/Vacuum blood collection tubes |
| Adapter | 18×2ml | Vacuum blood collection tubes | |||
| Adapter | 18×1.5ml | PP/PC tube | |||
NO.4 | Angle rotor | 4×50ml | 4000r/min | 2680xg | PP/PC tube |
| Adapter | 4×15/10ml | Vacuum blood collection tubes | |||
| Adapter | 4×5/2ml | Vacuum blood collection tubes | |||
 | |||||
1. Professional centrifuge manufacturer, competitive price.
2. ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.
3. Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.
4. We can also offer customized solutions for clients' special requirements.
5. Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
