HOT PRODUCTS
Medical Cyto Centrifuge 2Ml Cell Smear Cytological Cytology Cytospin
| Applications: | The Cell Smear Centrifuge is used for thin layer production for cervical cell, pleural effusion cell,cerebrospinal cell, bronchial lavage fluid cell,needle aspirating cell, sputum cell. |
| Max.Speed | 3500rpm |
| Max.RCF | 1328xg |
| Max.Capacity | 12 cell slide clips |
| Matched Rotors | Round disc vertical rotor |
| Display | LCD |
| Model Number: | XJ-8 |
| Certification: | CE, ISO13485,ISO9001:2015 |
| Warranty | 1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty. |
- Description
- Video
- Technical Specifications
- Rotors and Accessories
- Competitive Advantage
Samples taken by the cervical brush. The impurities are separated by gradient centrifugation. Then make the effective diagnostic components (cells and bacteria) into flat uniform layer without overlapping by centrifuge. The ultra thin layer absorbed on glass slide for microscope examination or computer reading. 12 samples can be made in 5 minutes. Easy to use without pollution. Cell layer made even with clear background.
Design
● Microprocessor control, flexible shaft drive system to directly drive the turning head, smooth running, small vibration, low noise.
● Frequency conversion motor drive, touch color large screen display .

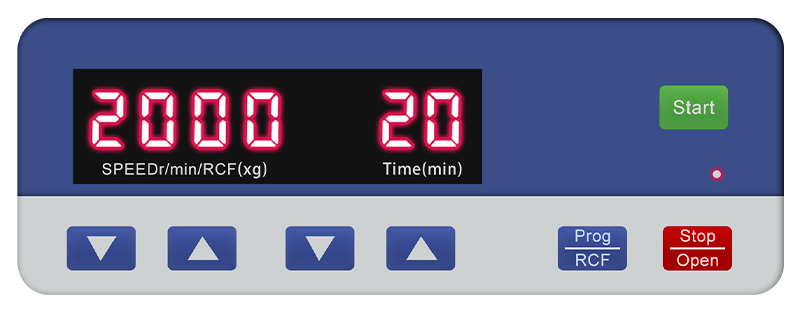

● LCD Display the parameters of Speed ,Timer,RCF,Program(Memory)information.
● Window on lid for speed calibration and noise measurement.
User friendly
● Automatic lid-locking and holding during rotor run.
● "Mute" patented technology, the highest speed operation is less than 55 decibels.
● Automatic rpm/rcf conversion.
Safety
● Produced according to international safety regulations (e.g. IEC 61010)
● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
● Emergency lid-lock release when power failure(very useful in an unexpected power interruption).
● Safety protections are made for the electronic door lock, over speed,fault auto diagnosis etc to ensure the man machine safety.
| Speed range(rpm) | 0-3500rpm adjustable | Noise(dBA) | ≦55dB(A) |
| Max Capacity(ml) | 12 cell slide clips | Dimension(mm) | 440*400*230mm |
| RCF range (xg) | 0-13285xg adjustable | Net weight(without rotor) | 18KG |
| Power supply | AC220V,50HZ,5A, 60W | ||
| No. | Rotor | Capacity | Max. speed | Max. RCF | Note |
NO.1
| Swing rotor | 12 cell slide clips | 3500r/min | 1328xg | Round disc vertical rotor |
 | |||||
1.Professional centrifuge manufacturer, competitive price.
2.ISO9001:2015 Certification, CE Certification, all machines undergo strict quality testing and good packaging before transportation.
3.Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.
4.We can also offer customized solutions for clients' special requirements.
5.Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
