Blood Group Gel Card Centrifuge For 4X12 Blood Test Result Card

Applications:The Centrifuge FBTC4  is used for processing the blood type cards.
Matched Rotors12 cards/ box for swing bucket
Model Number:FBTC4  (old model: MK-24)
Certification:CE, ISO13485,ISO9001:2015
Warranty1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty.
  • Description
  • Technical Specifications
  • Rotors and Accessories
  • Competitive Advantage

The Centrifuge TBTC12 is of floor standing type,which can accommodate 4×12 blood type cards one time.


● High-quality steel structure with a built-in blast-proof steel chamber, 304# stainless steel chamber are autoclave-able , resistant detergents and disinfection liquids.

● Microprocessor control, flexible shaft drive system to directly drive the turning head, smooth running, small vibration, low noise.

● Frequency conversion motor drive, microcomputer control, touch color large screen display .

● Observations window on lid for speed calibration and noise measurement.

● 7-inch touch screen display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.

● The door cover and body are equipped with double-layer silicone seal ring.

FBTC4 Centrifuge

User friendly

● Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.

● Provides the 10-speed acceleration and deceleration curves, to effectively avoid secondary sedimentation, with better centrifugation effect.

● Automatic lid-locking and holding during rotor run.

● Self-diagnostic system with high-strength chamber-coating and protective.

● "Mute" patented technology, the sound level is less than 58 decibels at the highest speed operation.

● Automatic rpm/rcf conversion

FBTC4 Centrifuge


● Produced according to international safety regulations (e.g. IEC 61010)

● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.

● Emergency lid-lock release when power failure(very useful in an unexpected power interruption).

● Gas hinge for lid drop protection.

● Safety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.

FBTC4 Centrifuge
Speed range(rpm)0-4000rpm adjustableNoise(dBA)≦58 dB(A)
Max Capacity(ml)4*1000 mlDimension(mm)720*620*890mm(LxWxH)
RCF range (xg)0-2773xg adjustableNet weight135 KG
Power supplyAC220V,50HZ,15A,1000W
No.RotorCapacityMax. speedMax.RCFNote

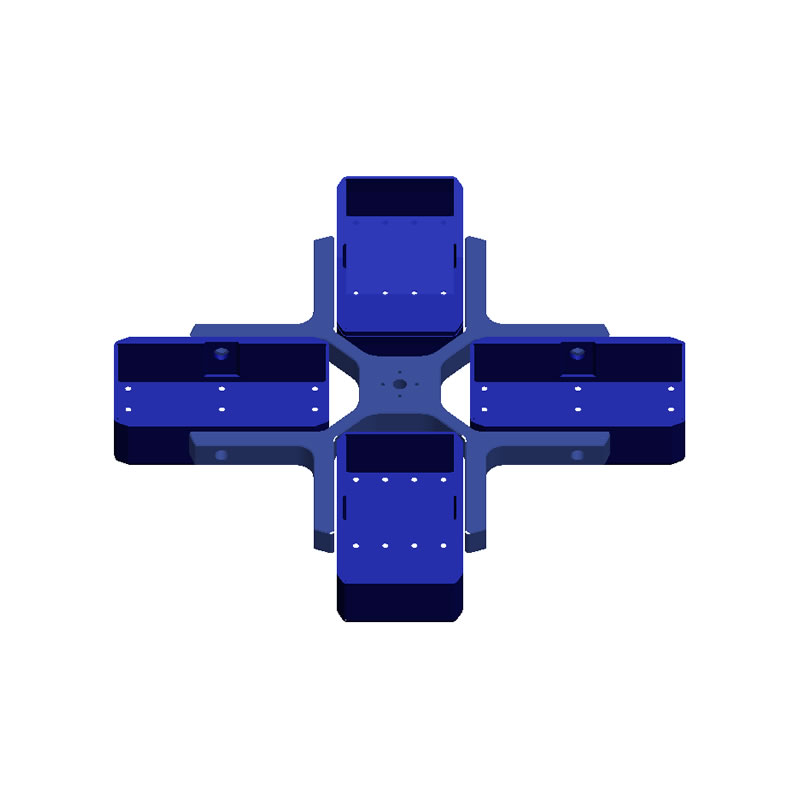

Swing rotor4×12 cards4000r/min2773xg12 cards/ box for swing bucket

1.Professional centrifuge manufacturer, competitive price.

2.ISO9001:2015 Certification, CE Certification, all machines undergo strict quality testing and good packaging before transportation.

3.Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.

4.We can also offer customized solutions for clients' special requirements.

5.Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
