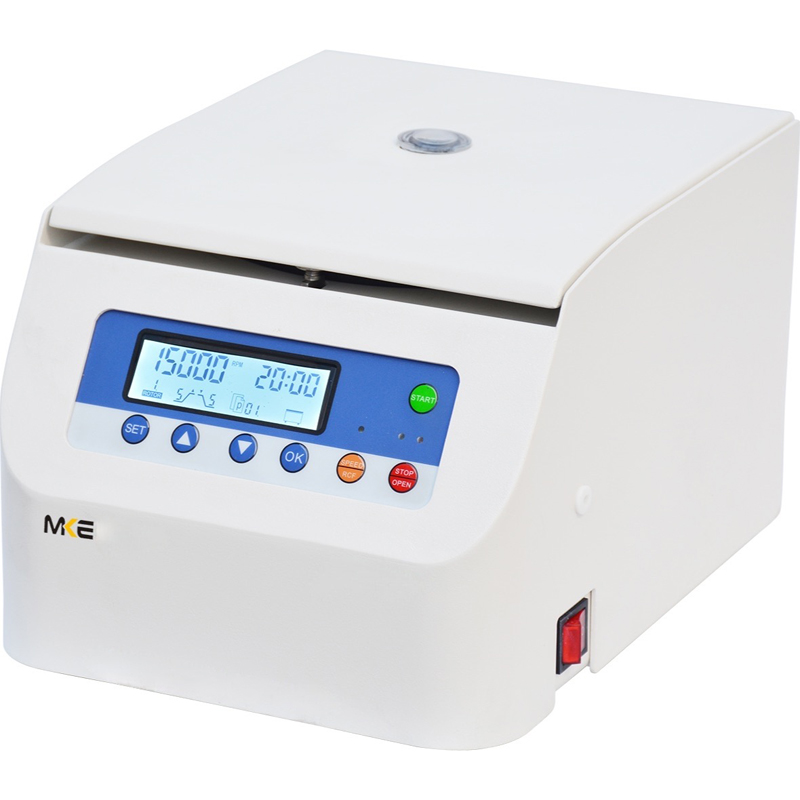

Reliable High-Speed Centrifuge for Consistent Performance
| Applications: | Hospitals,Veterinary clinics,Food labs,Universities & colleges, Pharmaceutical labs, Cell culture labs,Infant stations |
| Max.Speed | 16500rpm |
| Max.RCF | 19480xg |
| Max.Capacity | 12*5ml |
| Matched Rotors | Fixed angle rotors |
| Display | LCD Display |
| Model Number: | HK-16C |
| Certification: | CE, ISO13485,ISO9001, SFDA |
| Warranty | 1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty. |
- Description
- Technical Specifications
- Rotors and Accessories
- Competitive Advantage

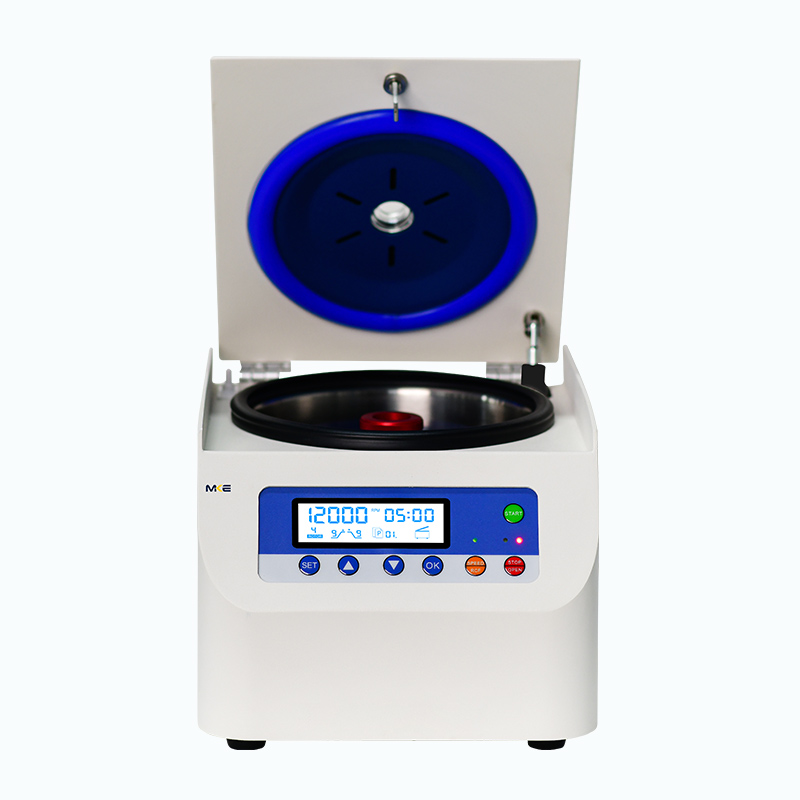

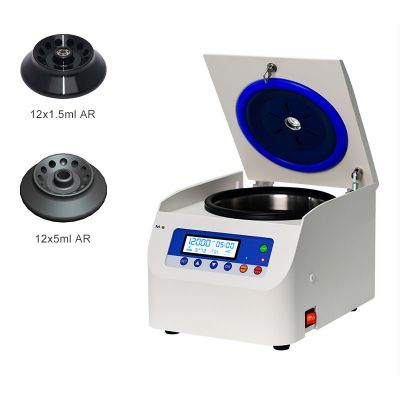

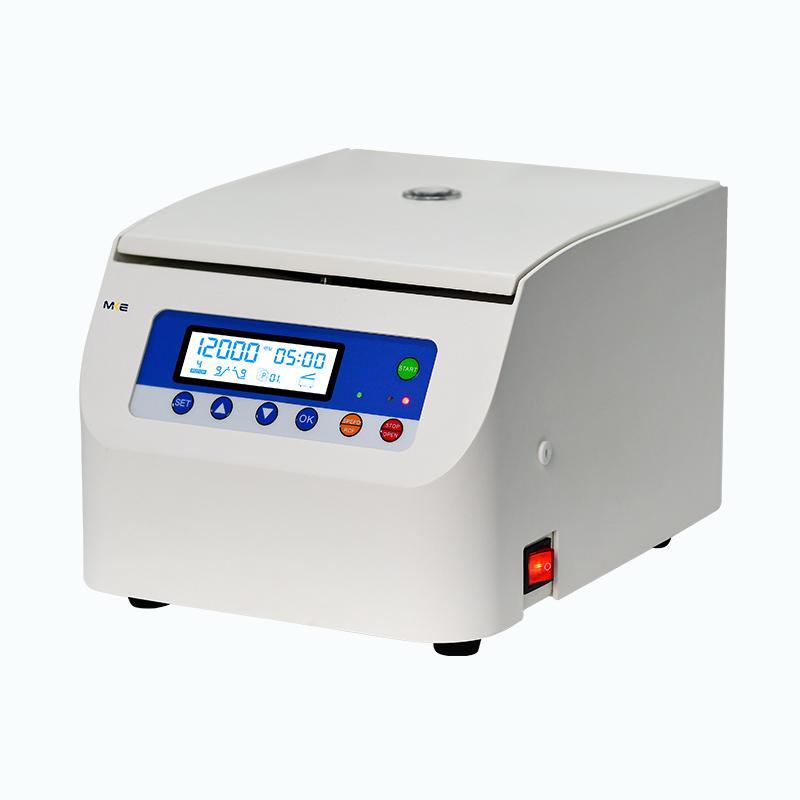

The HK-16C micro centrifuge boasts an extensive array of rotors designed to cater to various needs, including those for PCR strips, filter tubes, 2ml and 5ml micro-liter tubes.
With its exceptional performance and diverse rotor options, the HK-16C is the perfect choice for a wide range of applications, including microbiological studies, protein biochemistry, and clinical chemistry. The utilization of micro tubes ranging from 1.5ml to 5ml in micro centrifuges serves multiple purposes, such as sample pelleting, sedimentation, preparation, and purification.
Design
● Metal housing, metal lid, and stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.
● Observations window on lid for speed calibration and noise measurement.
● Microprocessor control with frequency conversion A.C. motor drive

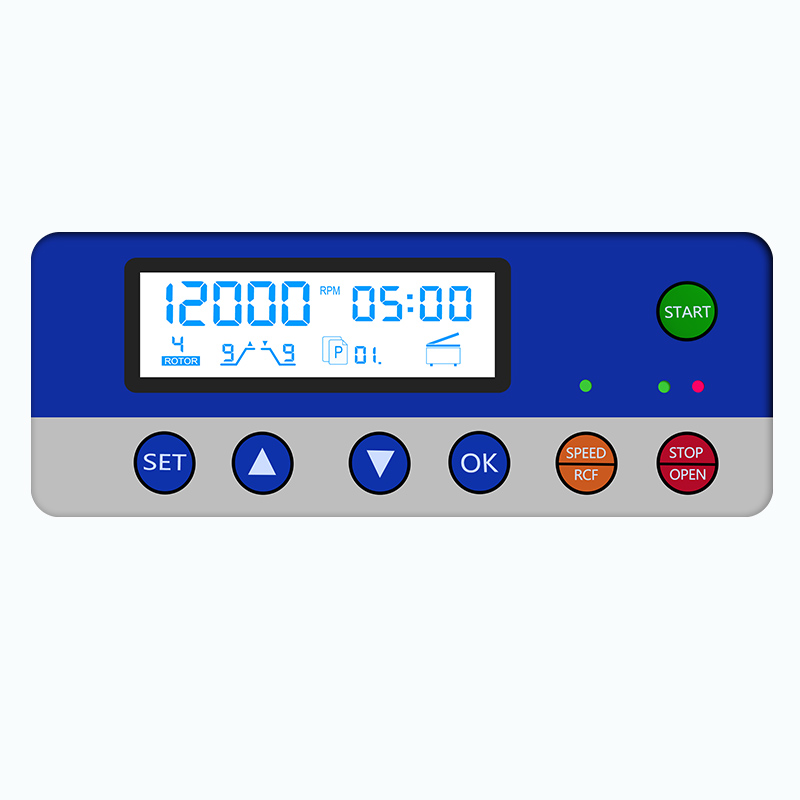

● LCD Display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.
● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.
User friendly
● Programmable and storable, stores up to 10 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.
● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.Fast acceleration rates reaching 165,000 rpm in just 15 seconds, and the same time goes for braking ramp.
● Automatic lid-locking and holding during rotor run
● Easily exchangeable rotors
● Automatic troubleshooting with indication of error code and alarm on the screen.
● Noise level lower than 55 decibel at the highest rotational speed.
Safety
● Produced according to international safety regulations (e.g. IEC 61010)
● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
● Emergency lid-lock release when power failure.
● Gas hinge for lid drop protection.
● Safety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.
| Max. RPM / Fixed angle | 16,500rpm/ 19,480 x g | Speed accuracy | ±10r/min |
| Max.Capacity,Fixed Angle | 12 x 5ml | Noise level (dB) | ＜55dB(A) |
| Safety lid lock | Yes | ACC/DEC | 10/10 steps |
| Max. acceleration time [s] | 15 seconds | Max. braking time [s] | 15 seconds |
| Display | LCD | Program memory | 10 |
| Automatic rotor identification | Yes | Lid drop protection | Yes |
| Motorized lid open & close | Yes | Imbalance cut-off | Yes |
| Parameters on display window | RPM (RCF), Time, ACC, DEC | Power requirement | 500 W |
| Time control | 1s-99minutes adjustable | Power supply | AC220V,50HZ,10A |
| Dimension (W x D x H, mm) | 355*265*225mm | Weight without rotor (kg) | 15 kg |

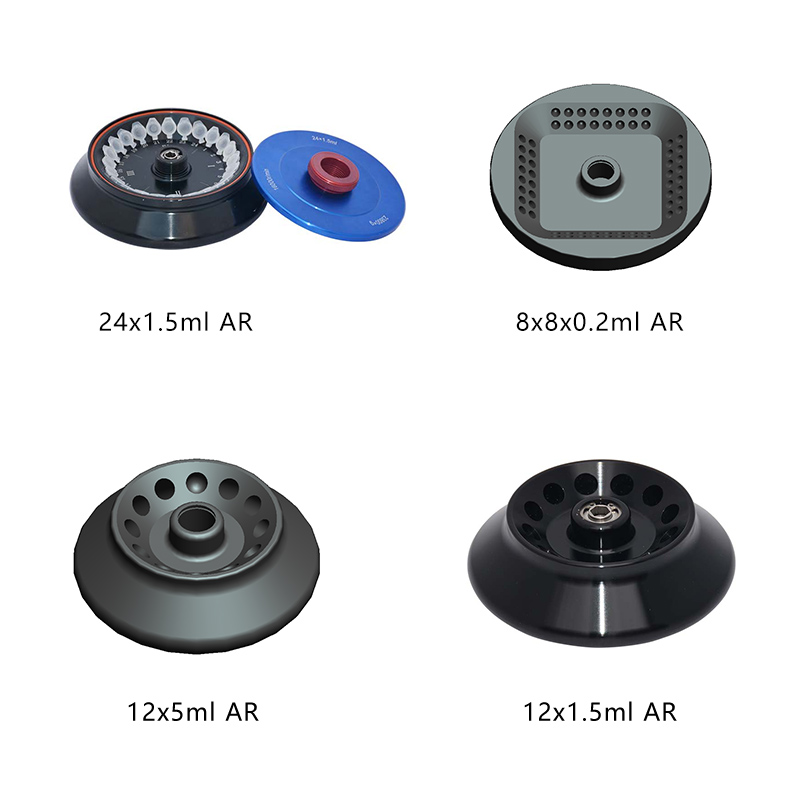

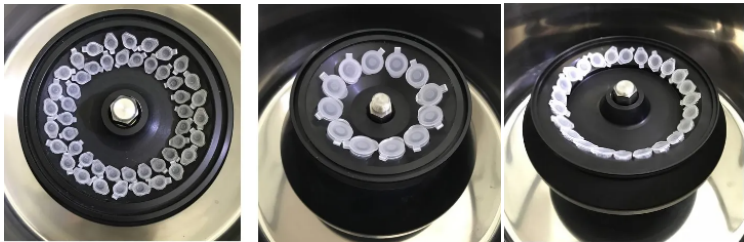

| No. | Rotor | Max.Capacity | Max. speed | Max. RCF | Note |
NO.1
| Angle rotor | 12×1.5/2.2ml | 16500r/min | 19176xg | EP/PP tube |
| Adapter | 12×0.5/0.2ml | EP/PP tube | |||
NO.2
| Angle rotor | 12×5ml | 16500r/min | 19480xg | EP/PP tube |
| Adapter | 12×1.5ml | EP/PP tube | |||
NO.3
| Angle rotor | 8×8×0.2ml | 13500r/min | 16480xg | PCR 8 strip tubes |
NO.4

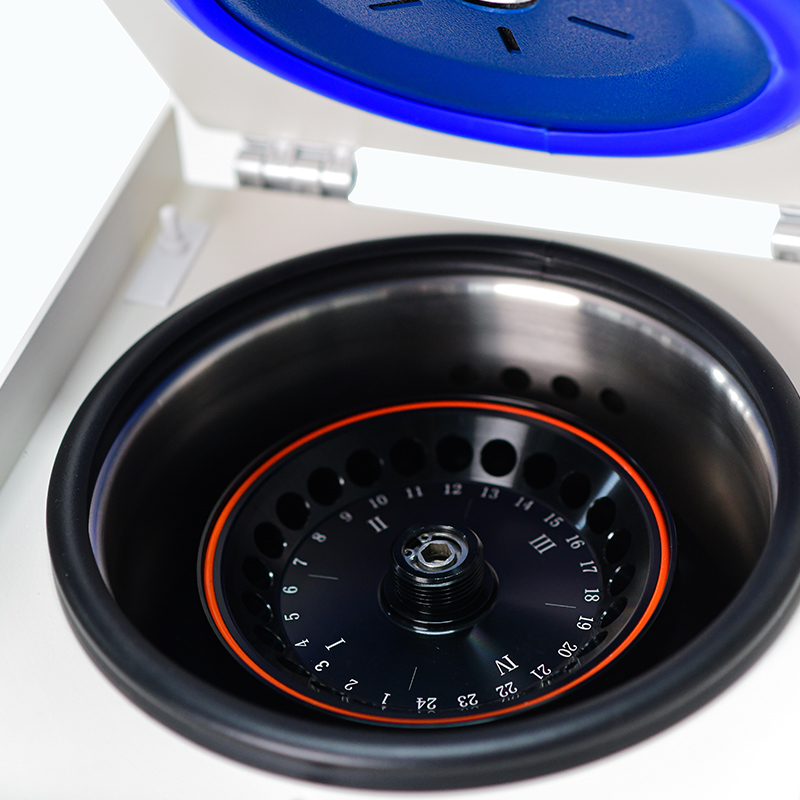

| Angle rotor | 24×1.5-2.2ml | 14000r/min | 19020xg | EP/PP tube |
| Adapter | 24×0.5/0.2ml | EP/PP tube | |||
 | |||||
1.Professional centrifuge manufacturer, competitive price.
2.ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.
3.Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.
4.We can also offer customized solutions for clients' special requirements.
5.Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
