Benchtop 24 Tubes Low Speed Lab Centrifuge
| Applications: | Hospitals,Veterinary clinics,Food labs,Universities & colleges, Pharmaceutical labs, Cell culture labs |
| Max.Speed | 4000 rpm |
| Max.RCF | 2268xg |
| Max.Capacity | 6*50ml |
| Display | LCD |
| Matched Rotors | Fixed angle rotors |
| Model Number | KC-40T |
| Certification | CE, ISO13485,ISO9001, SFDA |
| Warranty | 1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty. |
- Description
- Video
- Technical Specifications
- Rotors and Accessories
- Competitive Advantage

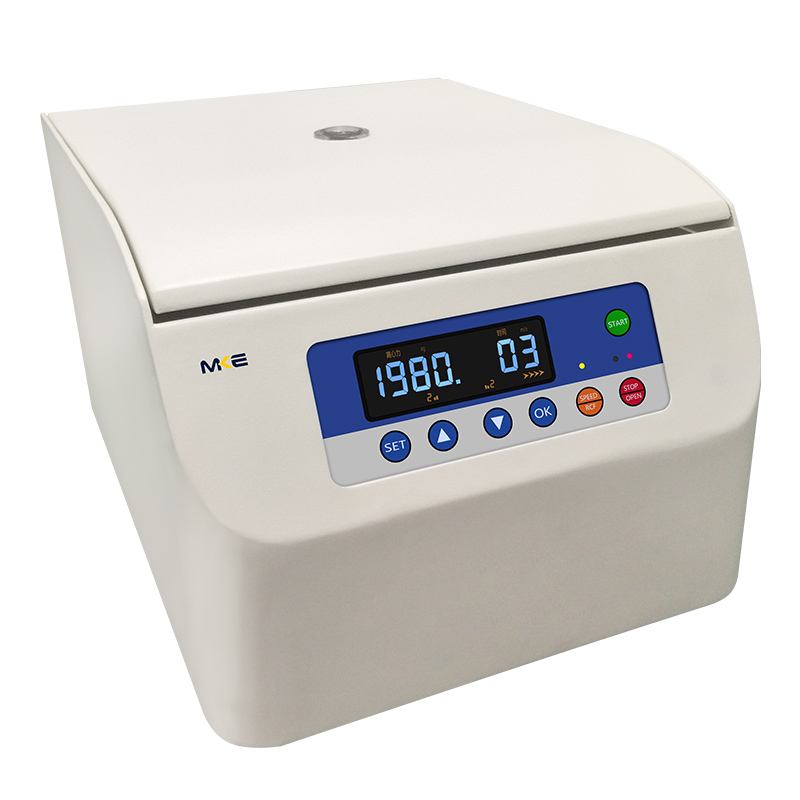

The benchtop low speed centrifuge KC-40T is with max speed 4000rpm,it has 2 fixed angle head rotors: rotor for 6 tubes of 50ml and rotor for 24 tubes of 10ml, 5ml,and 2/1.5ml adaptors for option.
The centrifuge uses good quality variable frequency motor instead of brushless motor.
All steel body and stainless steel chamber make it strong and durable.
Design
● Metal housing, metal lid, and 304# stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.
● Observations window on lid for speed calibration and noise measurement.
● Microprocessor control with frequency conversion A.C. motor drive

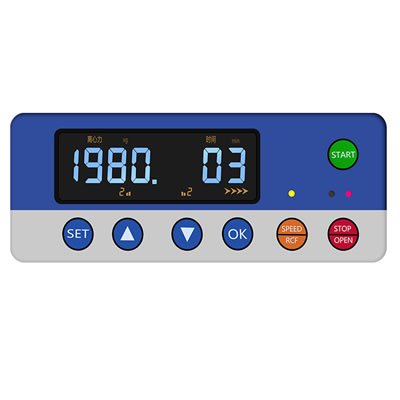

● LCD display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.
● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.
User friendly
● Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.
● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.
● Automatic lid-locking and holding during rotor run
● Easily exchangeable rotors
● Automatic troubleshooting with indication of error code and alarm on the screen.
● Noise level lower than 55 decibel at the highest rotational speed.
Safety
● Produced according to international safety regulations (e.g. IEC 61010).
● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
● Emergency lid-lock release when power failure.
● Gas hinge for lid drop protection.
● Safety protections are made for the over speed, imbalance and fault auto diagnosis etc to ensure the man machine safety.
| Speed range(rpm) | 0-4000rpm adjustable | Speed accuracy | ±10rpm |
| Max Capacity(ml) | 6*50ml | RCF range (xg) | 0-2268xg adjustable |
| Display | LCD | Time range | 1min-99minutes |
| Noise(dBA) | ＜55dB(A) | Acceleration /Deceleration rates | 0-- 9 |
| Dimension(mm) | 420x320x270mm | Motor | Frequency Converter motor |
| Net weight(without rotor) | 18KGS | Power supply | AC220V,50HZ,10A,60W |
| No. | Item | Capacity | Max. speed | Max. RCF | Note |
NO.1 | Angle rotor | 24×10/5ml | 4000r/min | 2268xg | PP/PC tube |
| Adapter | 24×2ml | ||||
| Adapter | 24×1.5ml | ||||
NO.2 | Angle rotor | 6×50ml | 4000r/min | 2268xg | PP/PC tube |
| Adapter | 6×15/10ml | ||||
| Adapter | 6×5ml | ||||
 | |||||
1. Professional centrifuge manufacturer, competitive price.
2. ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.
3. Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.
4. We can also offer customized solutions for clients' special requirements.
5. Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
