Benchtop Centrifuge Low-speed 75mm-105mm Vacuum Blood Tubes Capability for Laboratory University

Applications:Hospitals, Veterinary Clinics, Food Labs, Universities & Colleges, Pharmaceutical Labs, Cell Culture Labs
Max.Capacity4*750ml swing bucket
Temperature control range-20℃~+40℃
Matched RotorsFixed angle rotors&swing out rotors
Model Number:TR6-L (old model:tdL-5M)
Certification:CE, ISO13485,ISO9001, SFDA
Warranty1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty.
  • Description
  • Video
  • Technical Specifications
  • Rotors and Accessories
  • Competitive Advantage

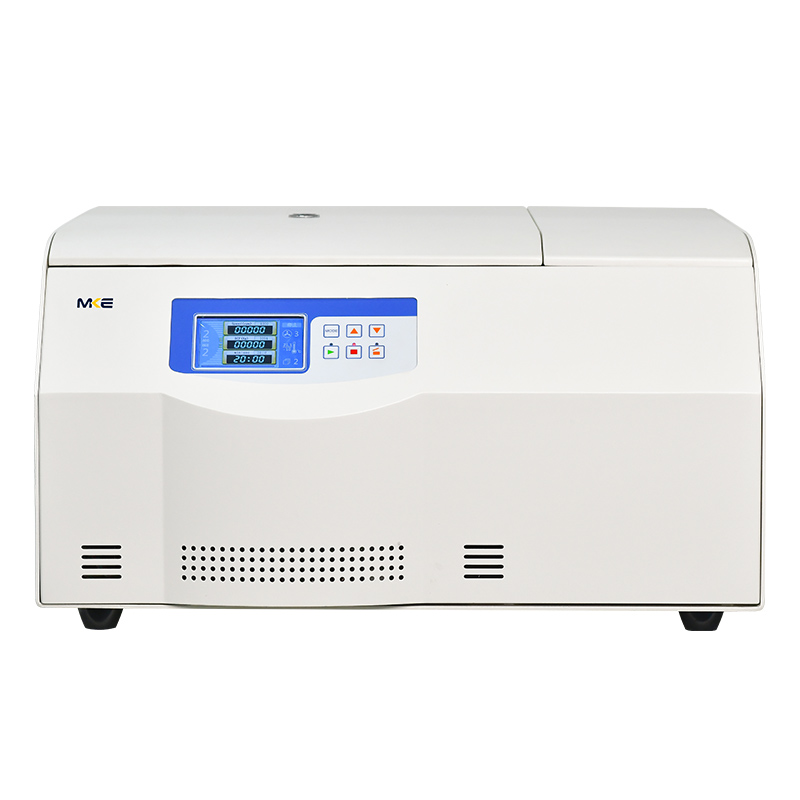

Low speed refrigerated centrifuge TR6-L is typically used in scientific research and medical laboratories to separate substances of different densities in a sample. The refrigeration feature allows for temperature control during the separation process, which is important for maintaining the integrity of certain samples.


● Metal housing, metal lid, and stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.

● Observations window on lid for speed calibration and noise measurement.

● Microprocessor control with frequency conversion A.C. motor drive

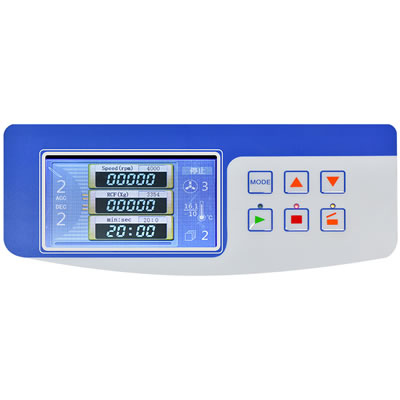

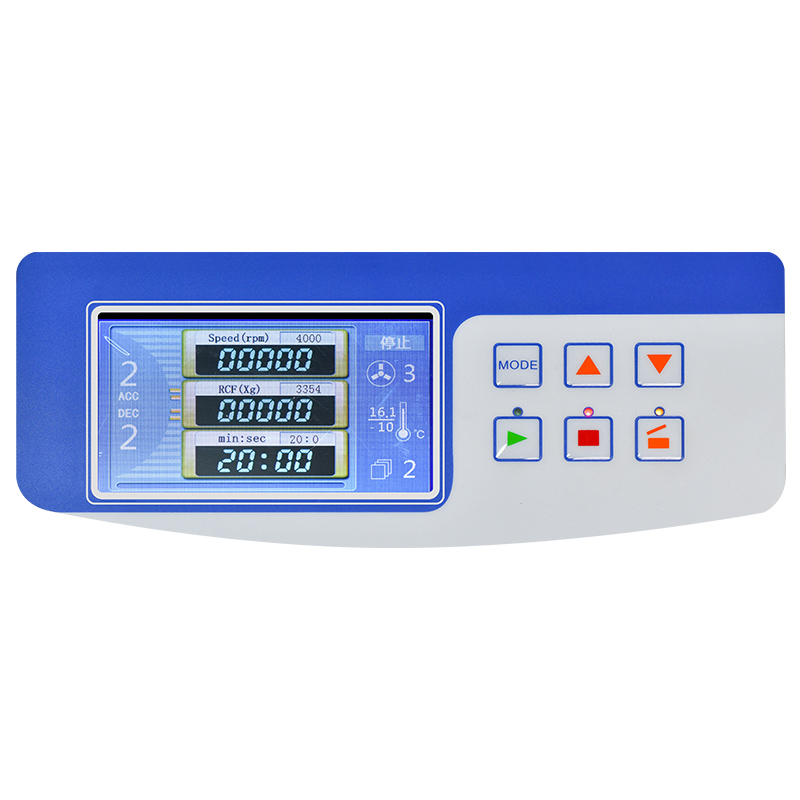

● LCD Display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.

● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.

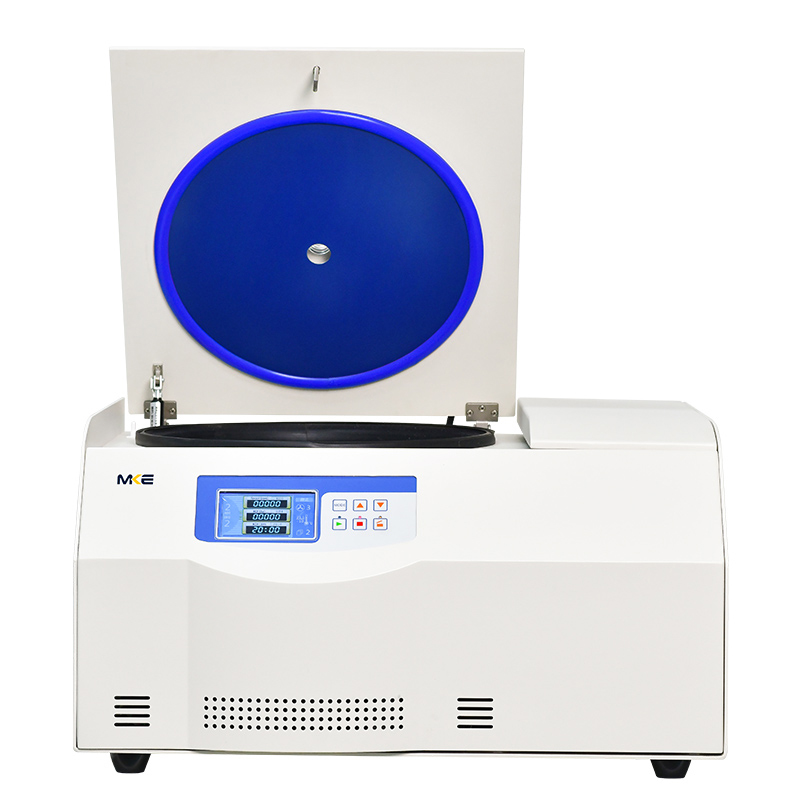

TR6-L low-speed refrigerated centrifuge

User friendly

● CFC free refrigeration system, Pre-cooling feature, Precise temperature control up to – 20°C.

● Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.

● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.

● Automatic lid-locking and holding during rotor run

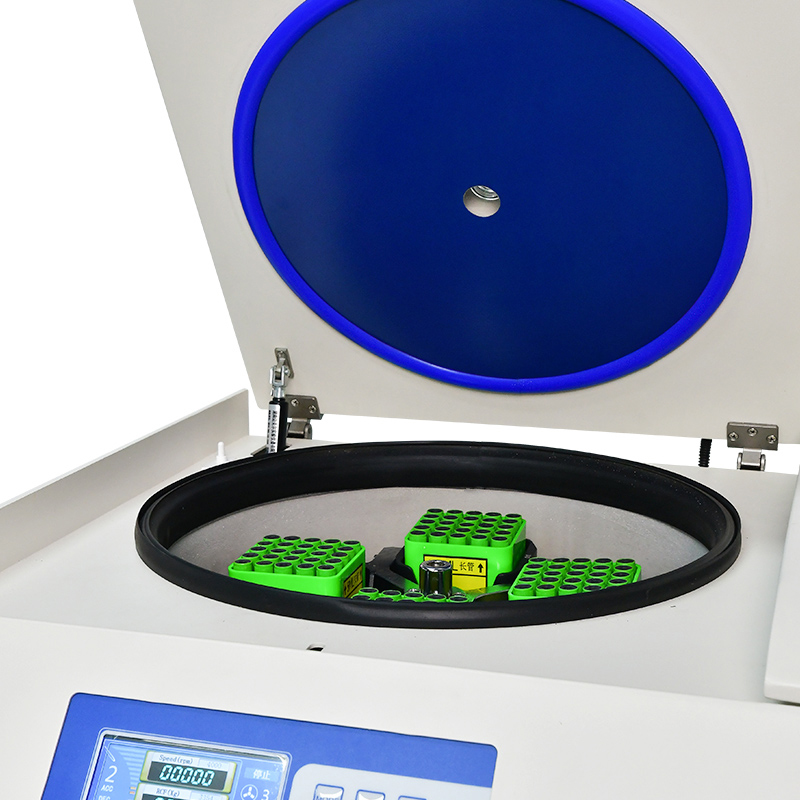

● Easily exchangeable rotors, special rotor connector which makes it easy to load and unload rotor.

● Automatic troubleshooting with indication of error code and alarm on the screen.

● “Mute”patent technology. Noise level lower than 58 decibel at the highest rotational speed.

● Automatic rpm/rcf conversion

● Automatic rotor identification system, coded rotor identification prevents the rotor from over speeding.

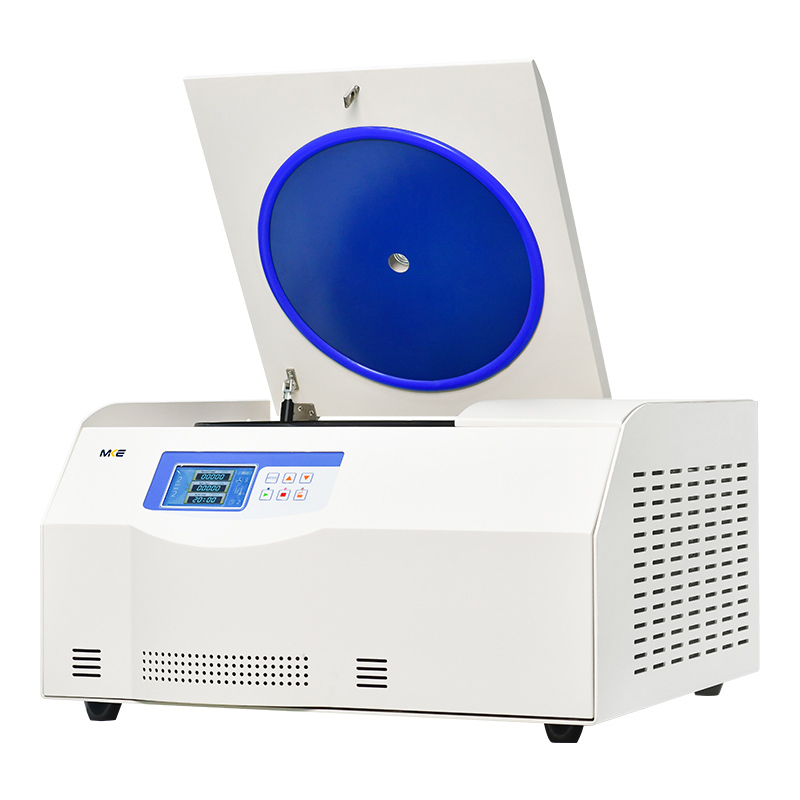

TR6-L low-speed refrigerated centrifuge


● Produced according to international safety regulations (e.g. IEC 61010)

● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.

● Emergency lid-lock release when power failure(very useful in an unexpected power interruption).

● Gas hinge for lid drop protection.

● Safety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.

TR6-L low-speed refrigerated centrifuge

Speed range(rpm)0-6000rpm adjustableTime range1-99minutes 59s adjustable
Max Capacity(ml)4*750mlSpeed accuracy±10r/min
RCF range (xg)0-6080xg adjustableACC/DEC1-10 rates
Temperature control range-20℃~+40℃Temperature control accuracy±1℃
Noise(dBA)≦58dB(A)Net weight(without rotor)90KGS
Power supplyAC220V,50HZ,10A, 1200WDimension(mm)670x740x370mm(LxWxH)

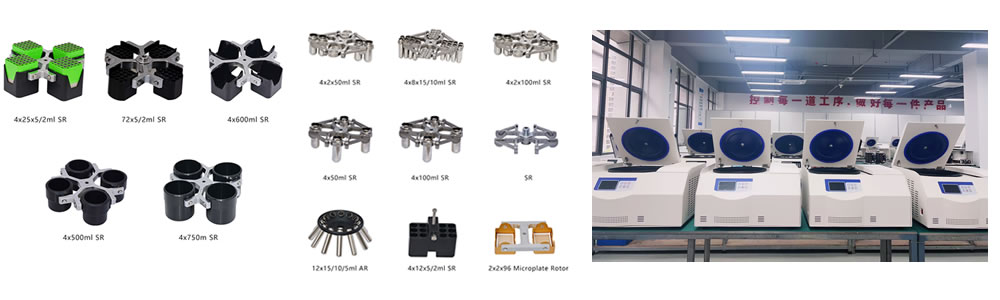

No.ItemMax. capacityMax.speedMax.RCFNote
NO.11Angle rotor12x15/10/5ml6000r/min6080xgPP/PC tube
Adapter12x2mlPP/PC tube
NO.22Swing rotorsteel frame rotor5000r/min4752xgPP/PC tube
Swing frame4x100mlPP/PC tube
Swing frame4x50mlPP/PC tube
Adapter4x15/10mlPP/PC tube
NO.33Swing rotorsteel frame rotor4000r/min3041xgPP/PC tube
Swing frame4x2x100mlPP/PC tube
Swing frame4x2x50mlPP/PC tube
Adapter4x2x15/10mlPP/PC tube
Swing frame4x8x15/10/5mlPP/PC tube
Rack4×12×5/2mlPP/PC tube

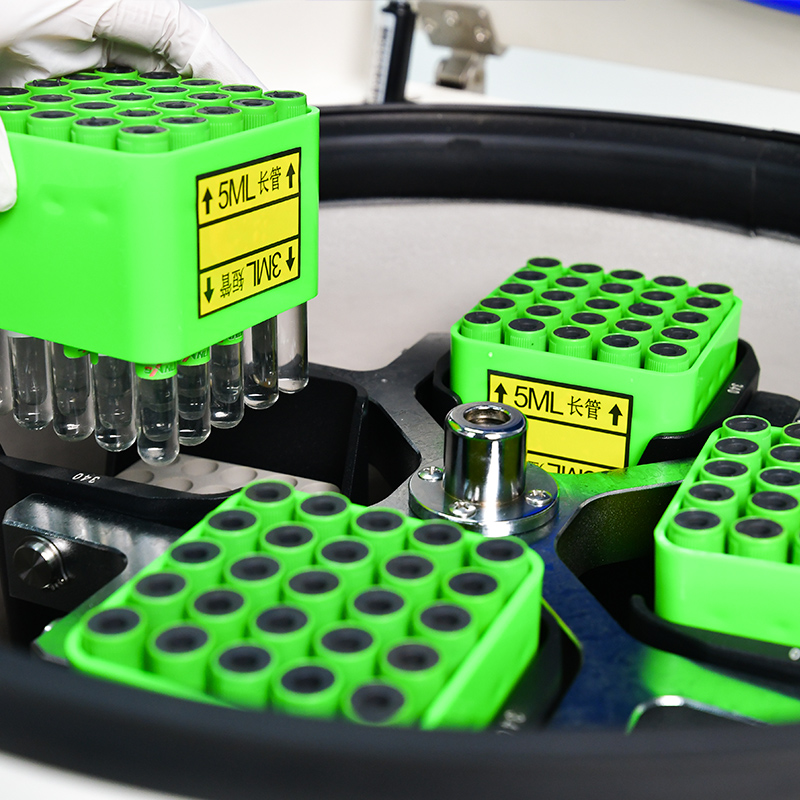

NO.48Swing bucket72x5/2ml4000r/min2773xgVacuum blood collection tubes
N0.59Swing bucket4×600ml4000r/min3354xgSquare cup
Adapter4×25×5/2mlVacuum blood collection tubes
Adapter4×12×15/10mlPP/PC tube
Adapter4×5×50mlPP/PC tube
Adapter4×4×100mlPP/PC tube
NO.610Swing bucket4×500ml4000r/min3354xgRound cup
Adapter4×17×5/2mlPP/PC tube
Adapter4×8×15/10mlPP/PC tube
Adapter4×3×50mlPP/PC tube
Adapter4×100mlPP/PC tube
NO.711Swing bucket4×750ml4000r/min3400xgRound cup
Adapter4×26×5/2mlPP/PC tube
Adapter4×13×15/10mlPP/PC tube
Adapter4×5×50mlPP/PC tube
Adapter4×3×100mlPP/PC tube
NO.812Microplate rotor2×2×96hole4200r/min2859xgSquare cup
Adapter2×32×1.5mlPP/PC tube

1.Professional centrifuge manufacturer, competitive price.

2.ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.

3.Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.

4.We can also offer customized solutions for clients' special requirements.

5.Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
