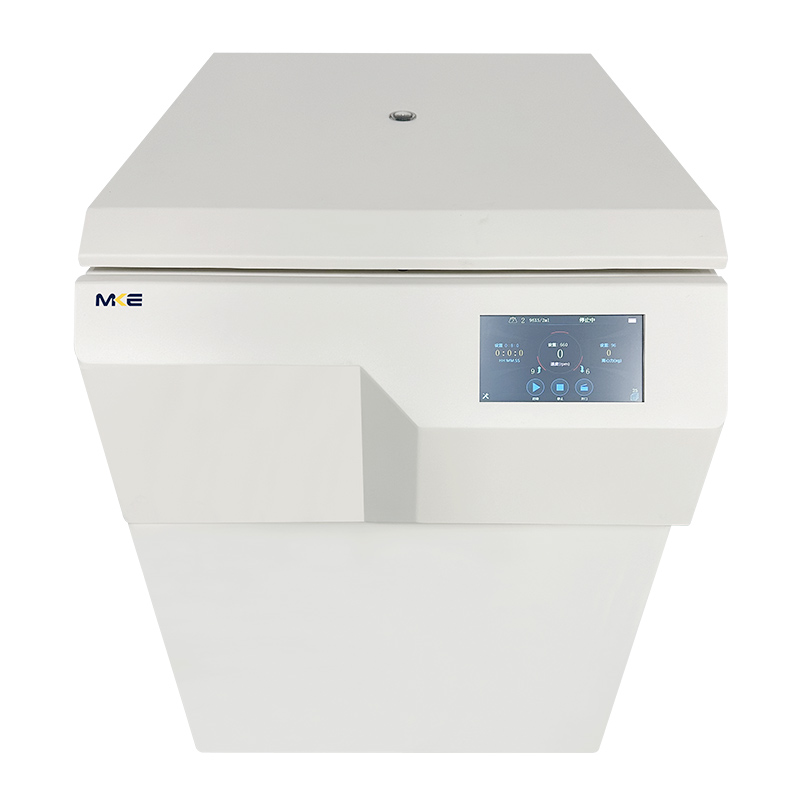

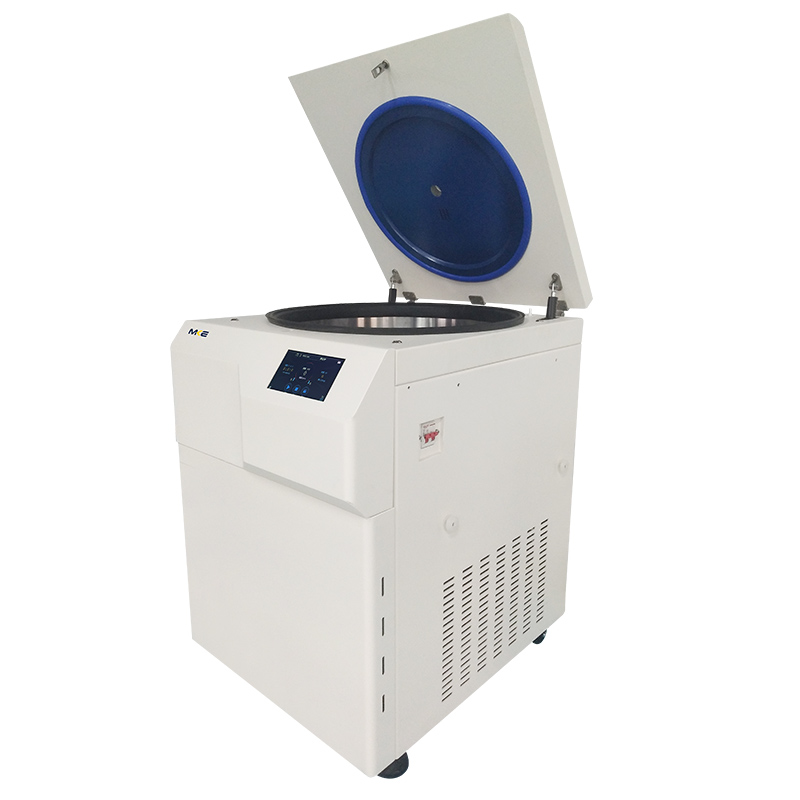

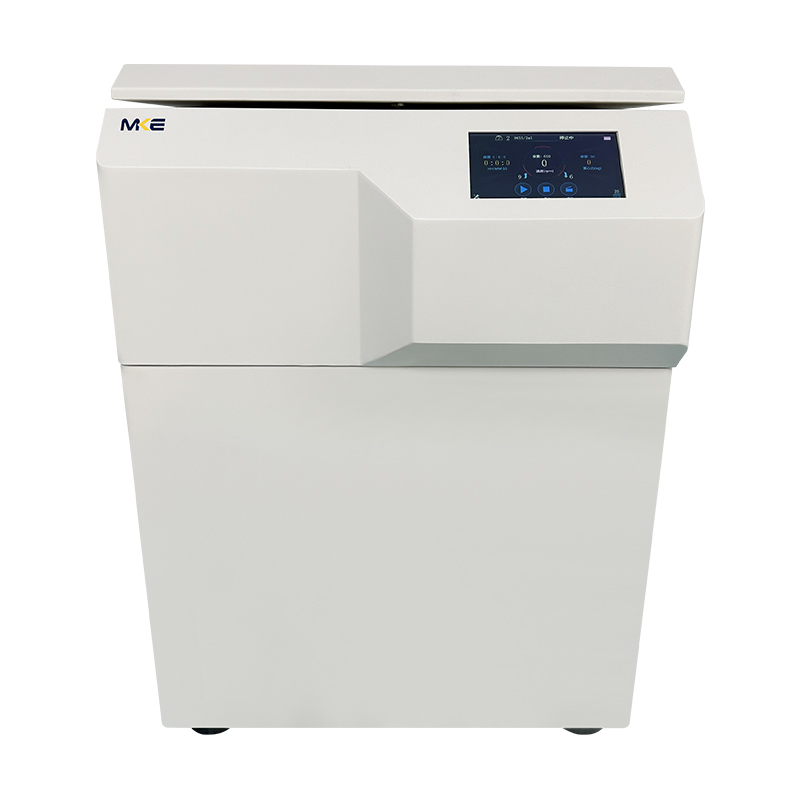

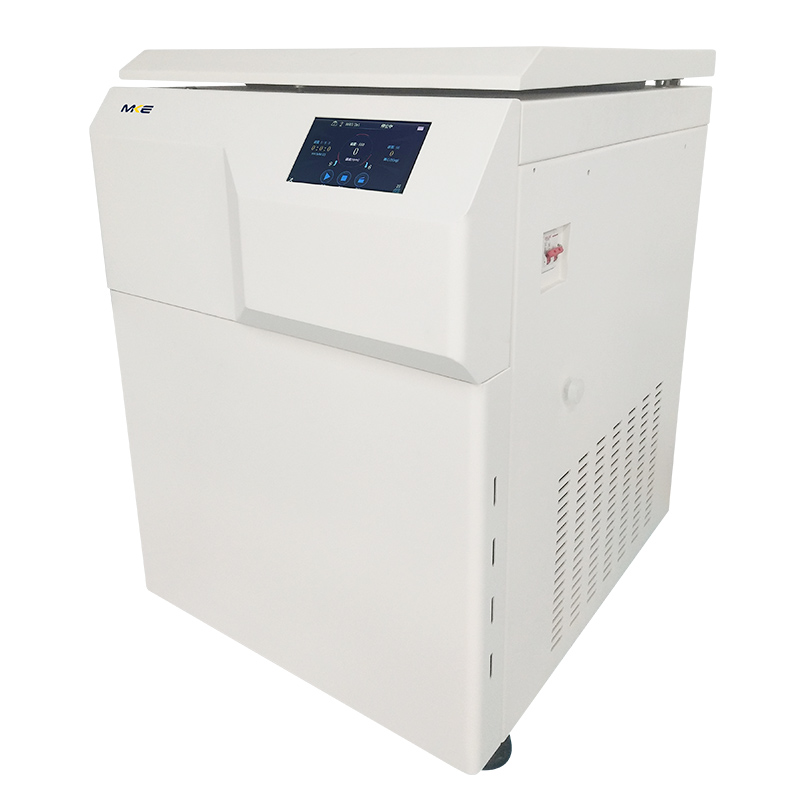

Laboratory Use Centrifuge 4000Rpm Floor Standing 4X1000Ml Low Speed Large Capacity

Applications:Industrial labs,Hospitals, Veterinary Clinics, Food Labs, Universities & Colleges, Pharmaceutical Labs, Cell Culture Labs
Max.Speed6000rpm
Max. RCF6080xg
Max.Capacity4×1000ml
Matched Rotors:Angle rotors &Swing buckets
Display:LCD
Model Number:F6(old model:DD5M)
Certification:CE, ISO13485,ISO9001, SFDA
Warranty1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty.
  • Description
  • Video
  • Technical Specifications
  • Rotors and Accessories
  • Competitive Advantage

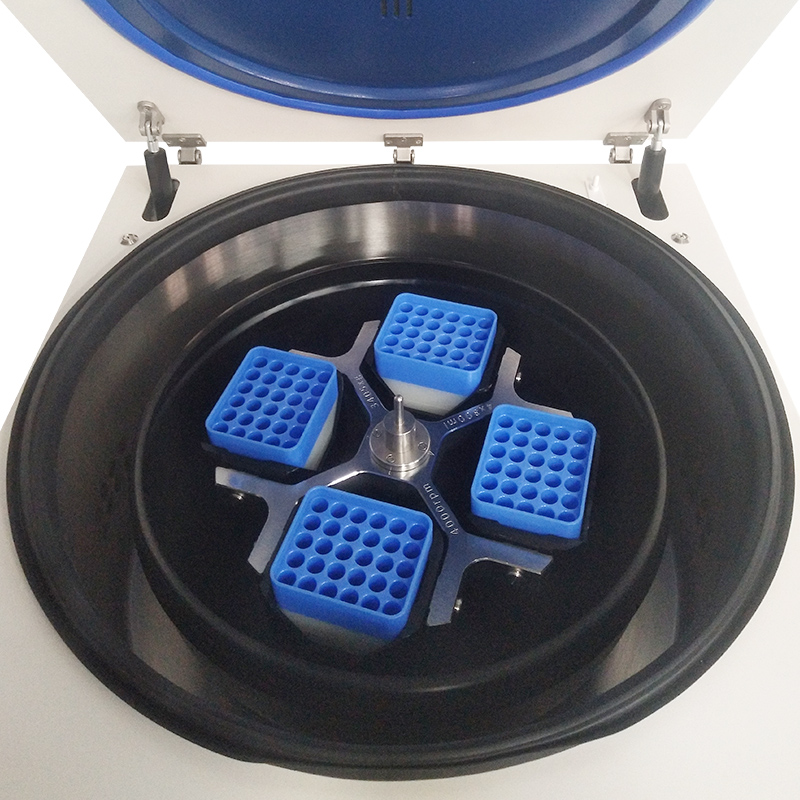

This high-performance centrifuge features impressive capacity of up to 4 x 1,000 ml in a swing-out rotor.

The numerous buckets and adapters can accommodate tubes and flasks from 0.5 ml to 1,000 ml, as well as microtiter plates and deep-well plates, and many users appreciate the ability to use a swing-out rotor either with or without a windshield.

Design

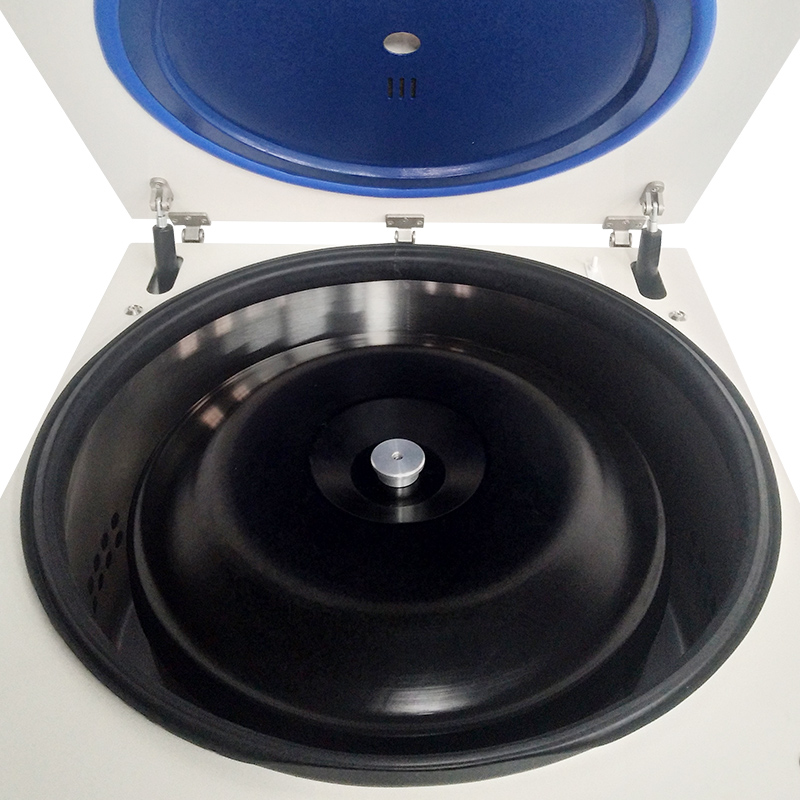

● High-quality steel structure with a built-in blast-proof steel chamber, 304# stainless steel chamber are autoclave-able , resistant detergents and disinfection liquids.

● Microprocessor control, flexible shaft drive system to directly drive the turning head, smooth running, small vibration, low noise.

● Frequency conversion motor drive, microcomputer control, touch color large screen display .

● Observations window on lid for speed calibration and noise measurement.

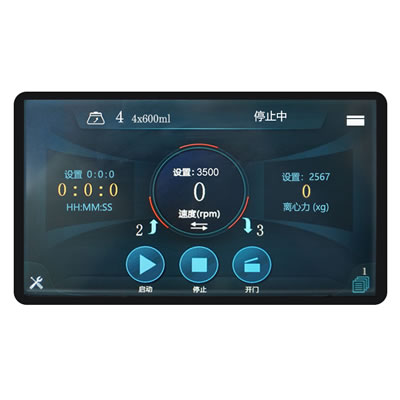

● 7-inch touch screen display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.

● Large capacity rotor body with wind cover, reduce rotor resistance, extend the service life of the motor.

● The door cover and body are equipped with double-layer silicone seal ring

Centrifuge Manufacturer F6

User friendly

● Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.

● Provides the 10-speed acceleration and deceleration curves, to effectively avoid secondary sedimentation, with better centrifugation effect.

● Automatic lid-locking and holding during rotor run

● Easily exchangeable rotors, special rotor connector which makes it easy to load and unload rotor.

● Self-diagnostic system with high-strength chamber-coating and protective

● "Mute" patented technology, the highest speed operation is less than 58 decibels.

● Automatic rotor identification system, coded rotor identification prevents the rotor from over speeding.

Centrifuge Manufacturer F6

Safety

● Safety and Standards Certification: CE

● Product Safety: EN61010-1 and EN 61010-2-020 ,

● Electromagnetic Compatibility: EN 61326-1

● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.

● Emergency lid-lock release when power failure(very useful in an unexpected power interruption).

● Gas hinge for lid drop protection.

● Safety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.

Centrifuge Manufacturer F6

Max.speed6000rpmMax.rcf6080×g
Max.capacity4×1000mlSpeed accuracy±10rpm
MotorFrequency Converter motorTimer range1~99h59min59s
DisplayLCDNoise<58dB(A)
Dimension720×620×890mm(L×W×H)Acceleration/Deceleration rates/Deceleration rates/Deceleration rates1-- 10
Power supplyAC220V,50Hz, 15A,1000WWeight150kg
No.RotorCapacityMax.speedMax. RCFNote

NO.1

2

Angle rotor12×15/10/5ml6000r/min6080xgPP/PC tube
Adaptor12×2mlPP/PC tube

NO.2

3

Swing rotorsteel  frame rotor5000r/min4752xgPP/PC tube
Swing frame4×100mlPP/PC tube
Swing frame4×50mlPP/PC tube
Adaptor4×15/10mlPP/PC tube
Adaptor4×15/10mlPP/PC tube

NO.3

6

Swing rotorsteel rotor4000r/min3041xgPP/PC tube
Swing frame4×2×100mlPP/PC tube
Adapter4×2×15/10mlPP/PC tube
Swing frame4×2×50mlPP/PC tube
Adapter4×2×15/10mlPP/PC tube
Swing frame4×8×15/10/5mlPP/PC tube
Rack4×12×5/2mlVacuum blood collection tubes

NO.4

8

Swing rotor72×5/2ml4000r/min2773xgVacuum blood collection tubes

NO.5

13

Swing bucket4×600ml4000r/min3354xgSquare cup with wind cover
Adapter4×25×5/2mlVacuum blood collection tubes
Adapter4×12×15/10mlPP/PC tube
Adapter4×5×50mlPP/PC tube
Adapter4×4×100mlPP/PC tube

NO.6

10

Swing bucket6×600ml4000r/min3400xgSquare cup with wind cover
Adapter6×25×5/2mlVacuum blood collection tubes
Adapter6×12×15/10mlPP/PC tube
Adapter6×5×50mlPP/PCtube
Adapter6×4×100mlPP/PCtube

NO.7

15

Swing bucket4×500ml4000r/min3354xgRound cup with wind cover
Adapter4×17×5/2mlVacuum blood collection tubes
Adapter4×8×15/10mlPP/PC tube
Adapter4×3×50mlPP/PC tube
Adapter4×100mlPP/PC tube

NO.8

12

Swing bucket6×500ml4000r/min3400xgRound cup with wind cover
Adapter6×17×5/2mlVacuum blood collection tubes
Adaptor6×8×15/10mlPP/PC tube
Adapter6×3×50mlPP/PC tube
Adapter6×100mlPP/PC tube

NO.9

13

Swing bucket4×800ml4000r/min3443xgSquare cup with wind cover
Adapter4×30×5/2mlVacuum blood collection tubes
Adapter4×16×15/10mlPP/PC tube
Adapter4×6×50mlPP/PC tube
Adapter4×4×100mlPP/PC tube

NO.10


14

Swing bucket4×750ml4000r/min3443xgRound cup with wind cover
Adapter4×26×5/2mlVacuum blood collection tubes
Adapter4×13×15/10mlPP/PC tube
Adapter4×5×50mlPP/PC tube
Adapter4×3×100mlPP/PC tube

NO.11

555

Swing bucket4×1000ml4000r/min3578xgOval cup with wind cover
Adapter4×42×5/2mlVacuum blood collection tubes
Adapter4×23×15/10mlPP/PC tube
Adapter4×7×50mlPP/PC tube
Adapter4×4×100mlPP/PC tube

NO.12

17

Microplate rotor4×2×96孔hole4200r/min3057xgSquare cup
Adapter4×32×1.5mlPP/PC tube

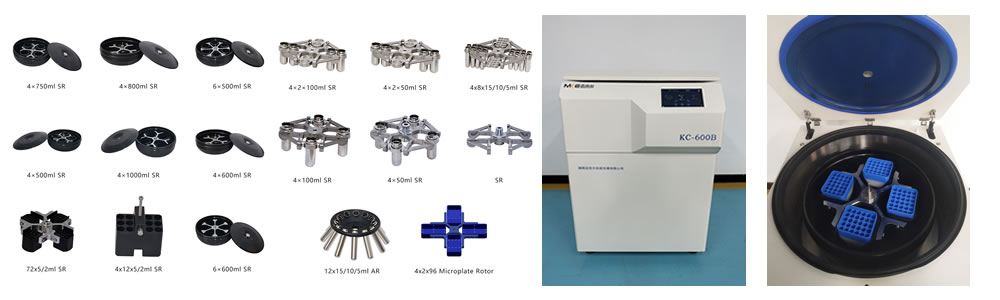

未命名-3

1.Professional centrifuge manufacturer, competitive price.

2.ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.

3.Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.

4.We can also offer customized solutions for clients' special requirements.

5.Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
