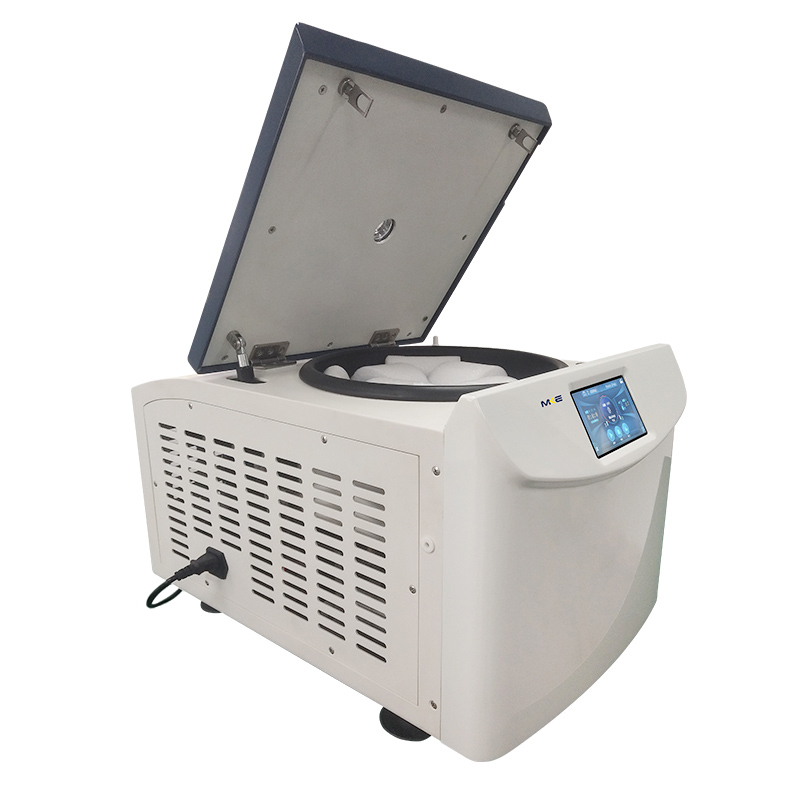

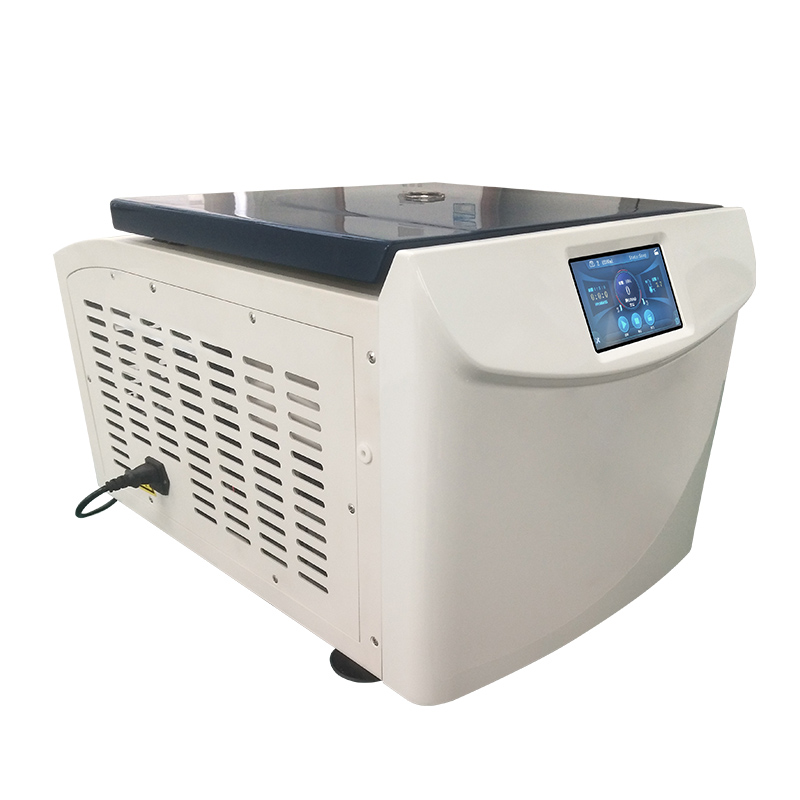

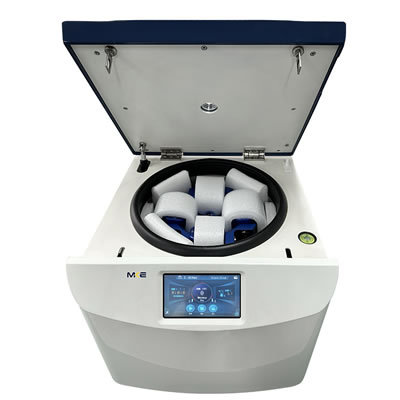

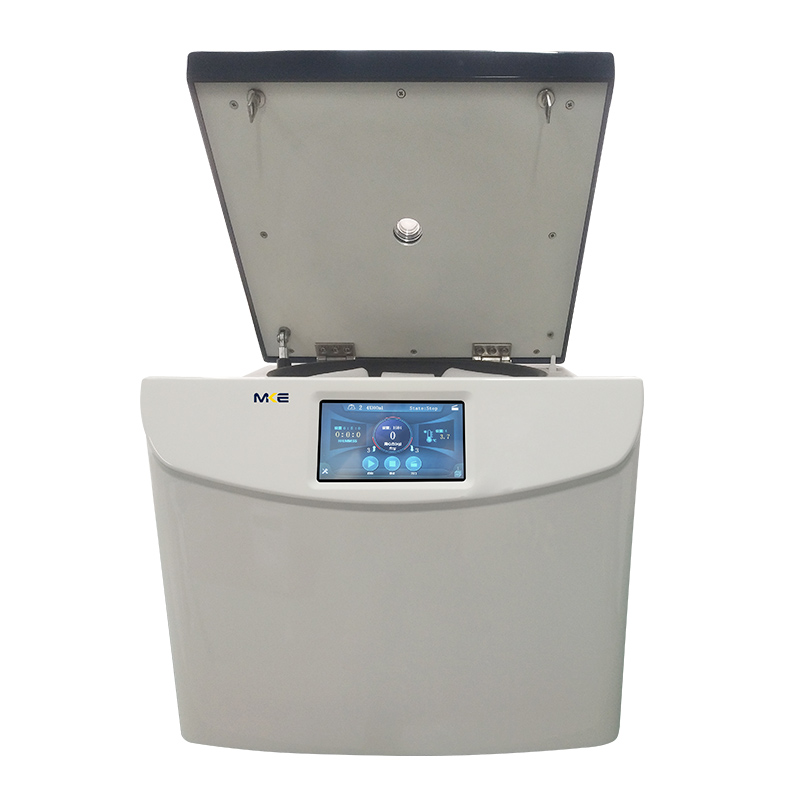

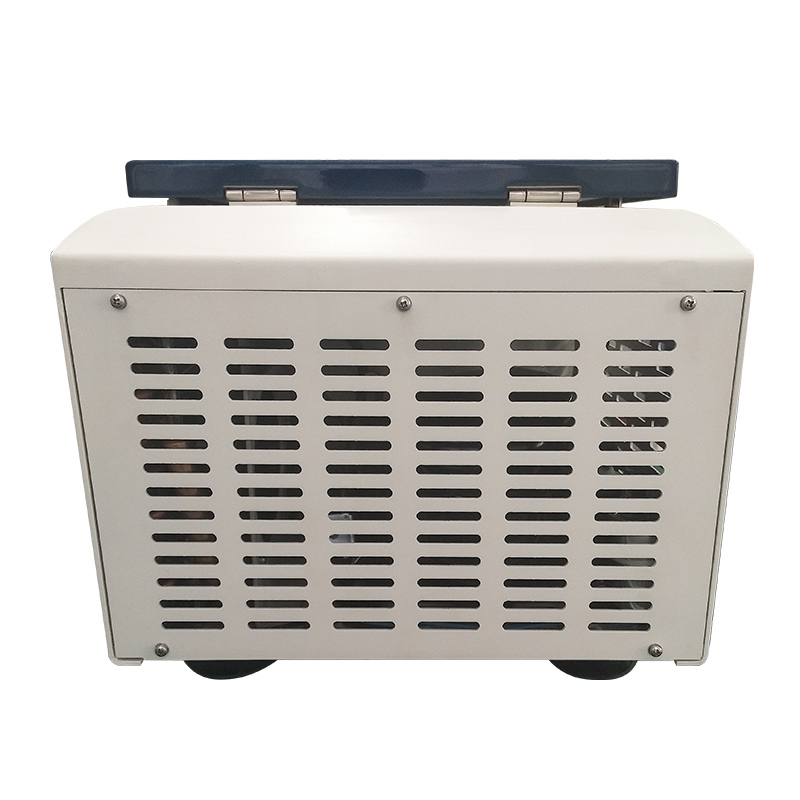

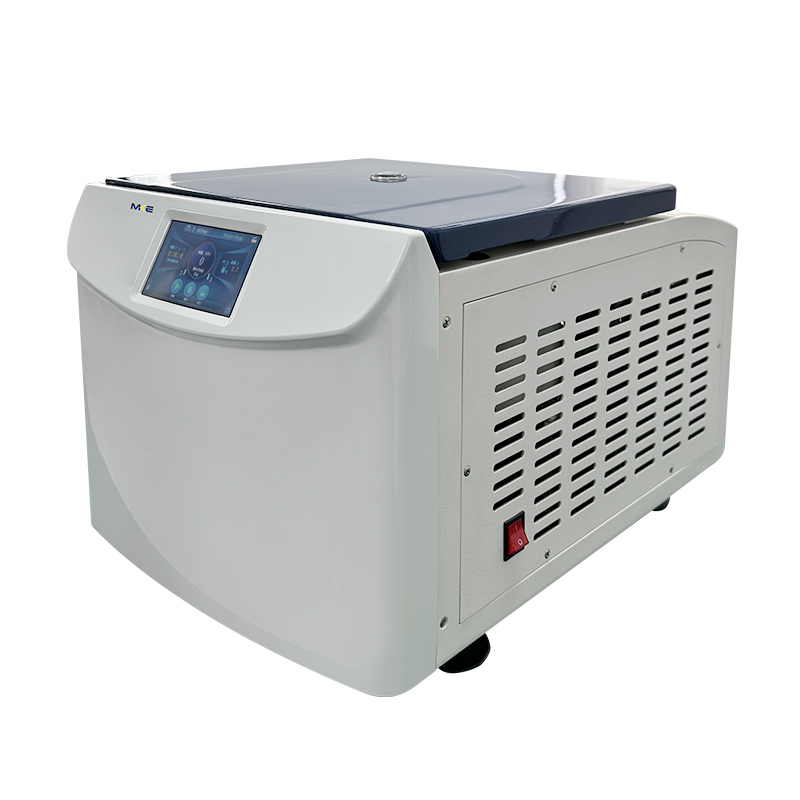

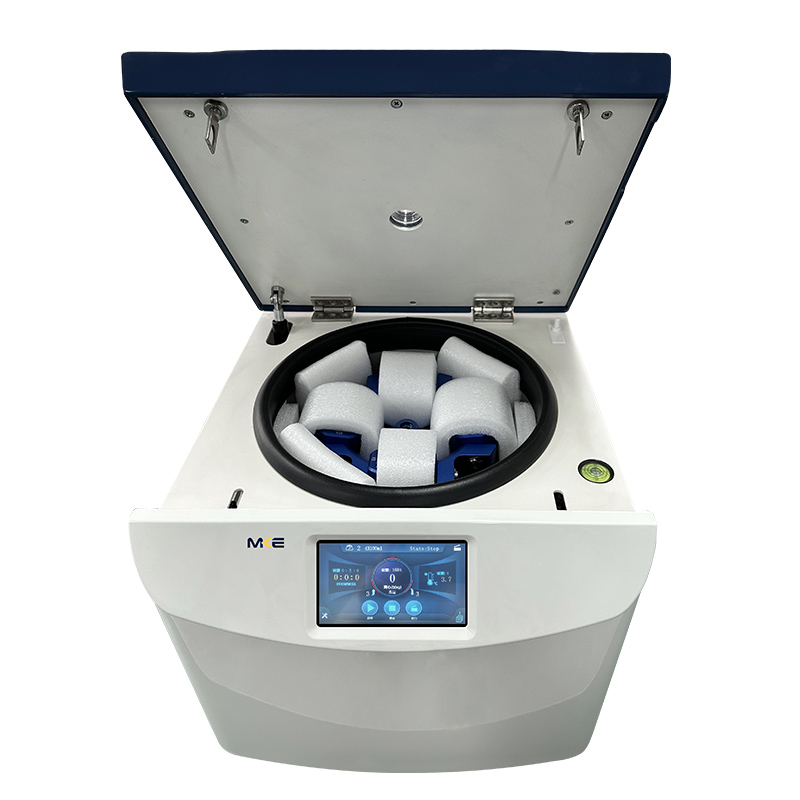

Refrigerated Micro centrifuge Temperature-Controlled Suitable for Different Centrifuge Samples
| Applications: | Blood collection trolleys, Blood collection houses |
| Max.Speed | 6000rpm |
| Max.RCF | 4860xg |
| Max.Capacity | 4*100ml swing bucket rotor |
| Matched Rotors | Fixed angle rotors + Swing out rotor |
| Display | LCD, touch five-inch colour screen display |
| Model Number: | KCL-60R |
| Certification: | CE, ISO13485,ISO9001, SFDA |
| Warranty | 1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty. |
- Description
- Technical Specifications
- Rotors and Accessories
- Competitive Advantage

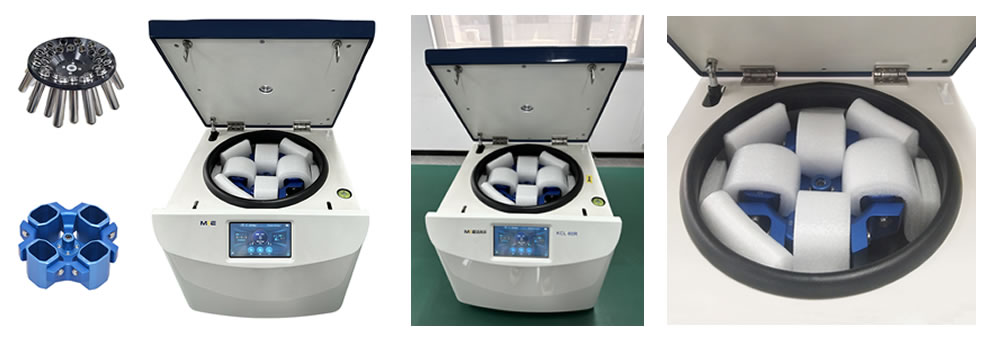

Blood collection trolleys or houses may be used by a variety of personnel, so microcentrifuge KCL-60R designed for this purpose are typically fast and efficient, with high spin speeds and short cycle times, easy to use and intuitive. It has pre-programmed settings that make it easy to spin the blood correctly. It process blood quickly to ensure that it remains viable for medical use. Equipped with 4 x 100ml horizontal rotor, optional nucleic acid centrifuge tubes, vacuum blood collection tubes, 15ml, 10ml, 8ml, 5ml, 2ml and other centrifuge tube adapters.
Design
● Metal housing, metal lid, and stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.
● Observations window on lid for speed calibration and noise measurement.
● Microprocessor control with frequency conversion A.C. motor drive.
● Adopt high efficiency environmental protection refrigeration system, no environmental pollution, high precision temperature control.
● LCD t

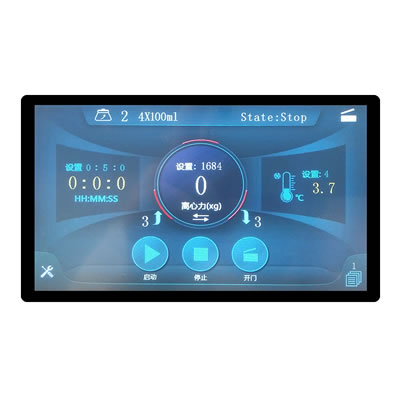

● LCD touch screen with simple&clear interface, display all parameters of the instrument operation, the user can set the centrifugal speed and centrifugal time arbitrarily.
● Centrifuge operating system with a password to prevent misuse, external USB interface, can track and trace more than 1000 sets of centrifugal data.
● Light weight, small size, simple, beautiful and generous appearance, unique suction cup feet can firmly grasp the placement surface, even when driving without worrying about centrifuge movement.
● Four suction cup feet can be adjusted high and low, while the centrifuge built-in level, blood collection vehicle in the case of uneven ground can still adjust the centrifuge to a stable state of use, the best centrifugal effect, the use of safer.

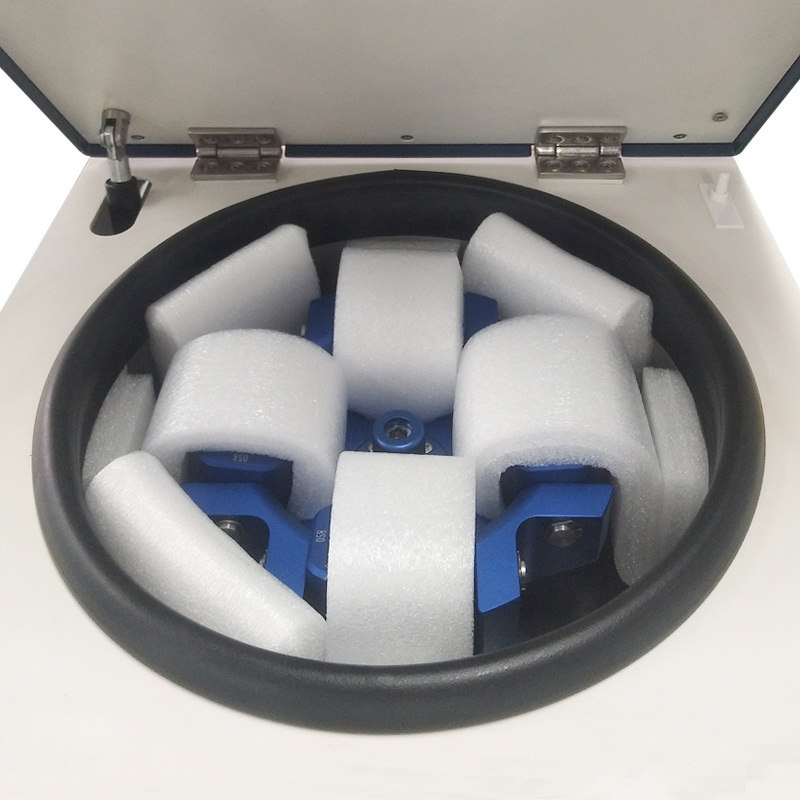

● Equipped with 4 x 100ml horizontal rotor, optional nucleic acid centrifuge tubes, vacuum blood collection tubes, 15ml, 10ml, 8ml, 5ml, 2ml and other centrifuge tube adapters.
User friendly
● CFC free refrigeration system, precooling rotors function during standby, precise temperature control up to – 9°C.
● Programmable and storable, stores up to 1000 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.
● Automatic lid-locking and holding during rotor run
● Easily exchangeable rotors
● Automatic troubleshooting with indication of error code and alarm on the screen.
● “Mute”patent technology. With low noise "patent" certificate, the highest speed operation noise is less than 50 decibels.
Safety
● Produced according to international safety regulations (e.g. IEC 61010)
● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
● Emergency lid-lock release when power failure.
● Gas hinge for lid drop protection.
● Safety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.
| Speed range(rpm) | 6000r/min | Speed accuracy | ±10r/min |
| RCF range (xg) | 4860xg | Max Capacity(ml) | 4×100ml |
| Time range | 0～99h59min59s | Noise(dBA) | ＜50dB |
| Temperature control range | -9℃～+40℃ | Temperature control accuracy | ±1℃ |
| Net weight(without rotor) | 42kg | LCD | Touch five-inch color large screen display |
| Power supply | AC220V 50hz 10A, 500W | Dimension(mm) | 640×340×370mm(L×W×H) |
| No. | Rotor | Max.Capacity | Max. speed | Max. RCF | Note |
NO.1 | Angle rotor | 24×10/8ml | 6000r/min | 4860xg | PP/PC/nucleic acid tube |
| Adapter | 24×5ml | ||||
| Adapter | 24×2ml | ||||
NO.2 | Swing bucket | 4×100ml | 5000r/min | 3437xg | Square cup |
| Adapter | 4×5×5ml | ||||
| Adapter | 4×4×10/8ml | ||||
 | |||||
1. Professional centrifuge manufacturer, competitive price.
2. ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.
3. Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.
4. We can also offer customized solutions for clients' special requirements.
5. Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
