Crude Oil Centrifuge Machine (machines can be customized as we are the manufacturer)
Application: | Crude Oil Test and Separation |
Max.Speed: | 4000rpm |
Max.RCF: | 3577xg |
Max.Capacity: | 4*250ml |
Matched Rotors: | Swing rotors |
Display: | LED |
Model Name: | DL-5Y |
Certification: | CE,ISO13485,ISO9001, SFDA |
1 year warranty for the whole machine, 3 years warranty for thecompressor and 5 years warranty for the motor.Free replacementparts and shipping within warranty. | |
- Description
- Technical Specifications
- Rotors and Accessories
1. Microprocessor control with Brushless Motor
2. LCD Display the parameters of speed ,timer,RCF,Acceleration&
3. Deceleration information and Error code information.
4. Steel centrifuge body and stainless steel chamber are autoclaveable and resistant detergents and disinfection liquids.
5. Gas hinge for lid drop protection.
6. Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
7. Emergency lid lock release when power failure.
8. Window on lid for speed calibration and noise measurement.
9. Continuous operation, working continuous according the set time.
10. 10 kinds of Acceleration&Deceleration for choice.
11. Automatic troubleshooting with indication of error code and alarm on the screen.

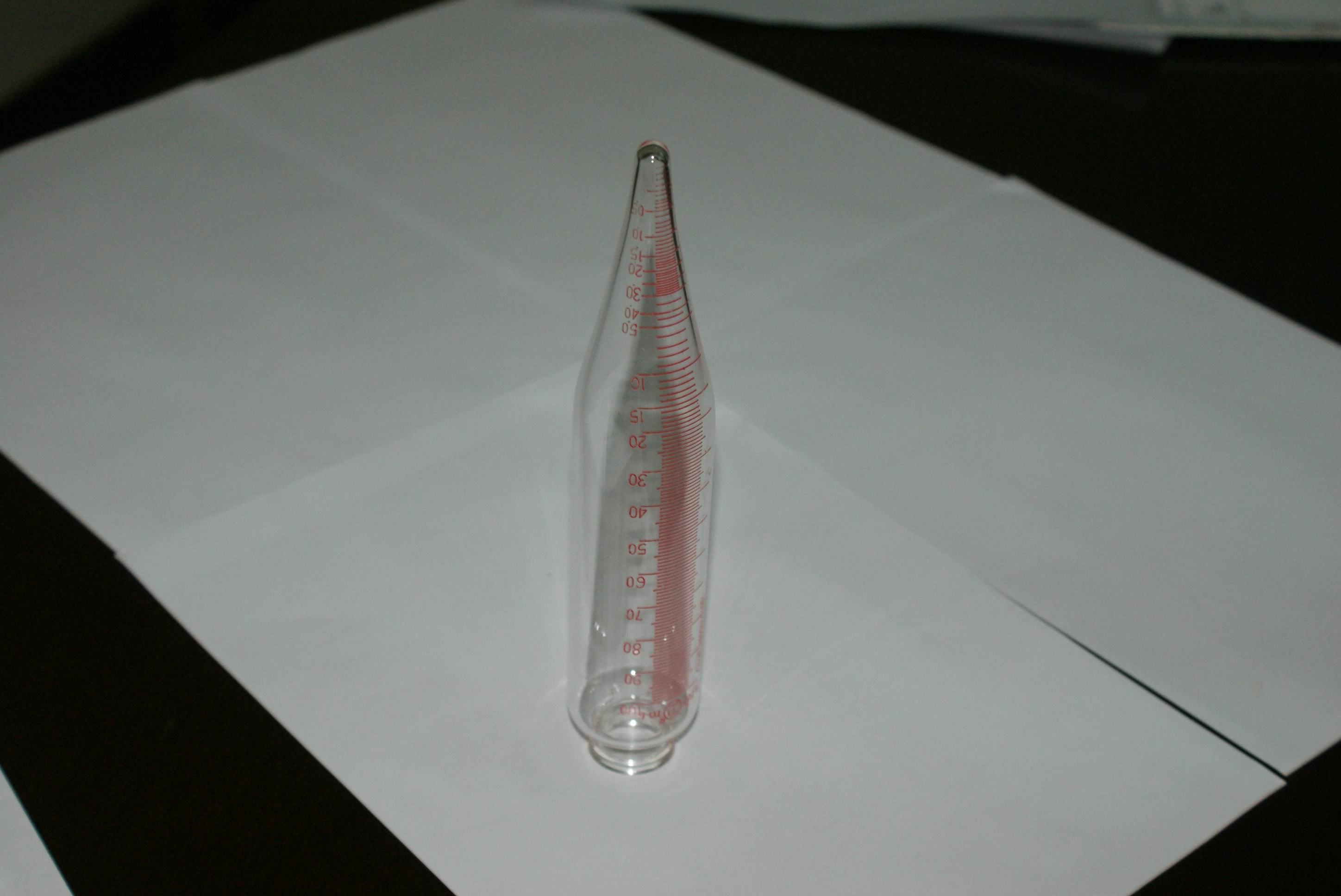

12. 100ml crude oil separation rotor.
13.Temperature: Room temperature:+10~80℃
14.Speed Accuracy: ±20r/min
15.Temperature Accuracy: ±1℃
16. With CE and ISO9001:2008,ISO13485 certificate
Speed range(rpm) | 0-4000rpm adjustable |
Max Capacity(ml) | 4*250ml |
RCF range (xg) | 0-3577xg adjustable |
Noise(dBA) | ≦58dB(A) |
Time range | 1-99minutes adjustable |
Temperature range(℃) | To80℃ |
Speed accuracy | ±20r/min |
Dimension(mm) | 692×530×428mm |
Net weight(without rotor) | 56KGS |
Power supply | AC220-240V,50/60HZ,10A,1KW |

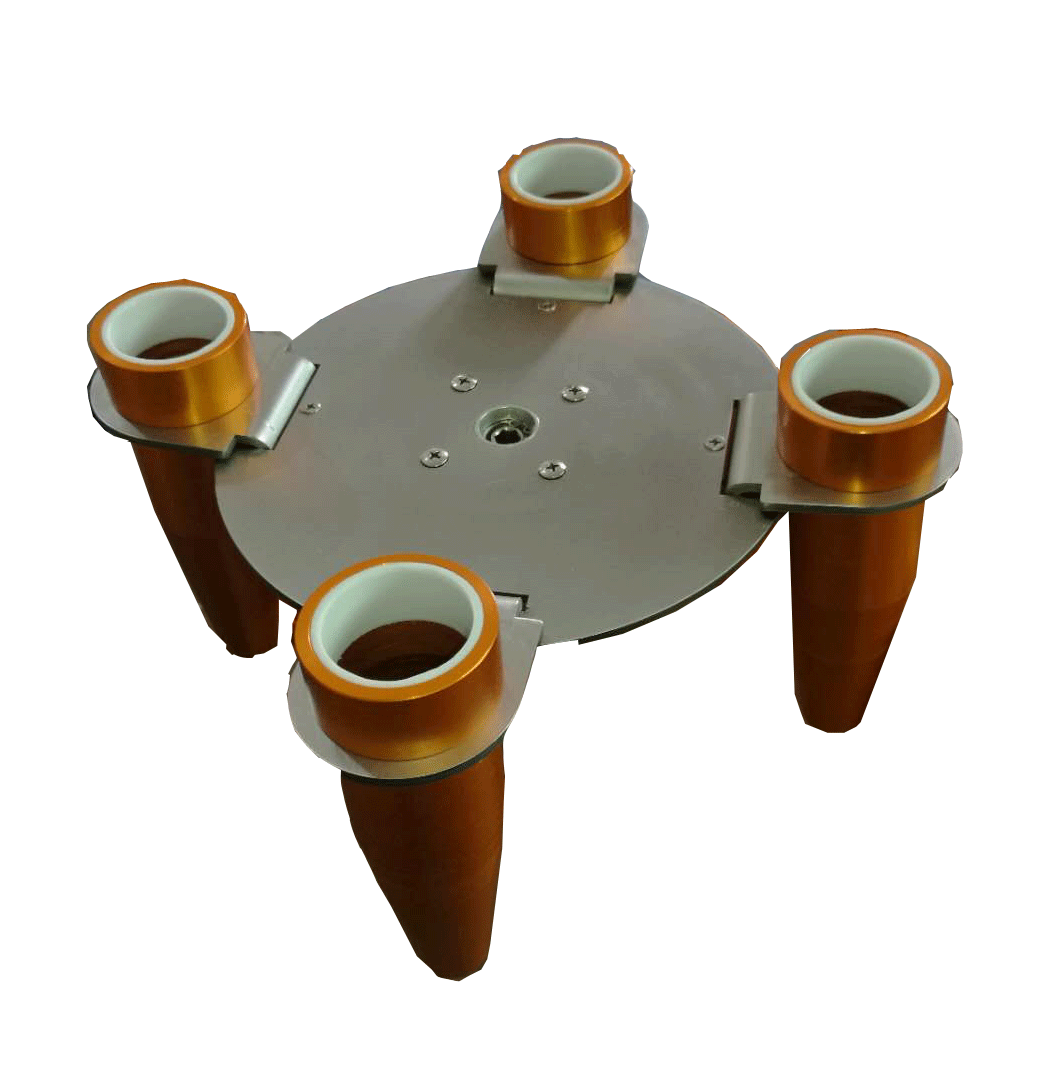

NO. | ROTOR | Capacity | Remark |

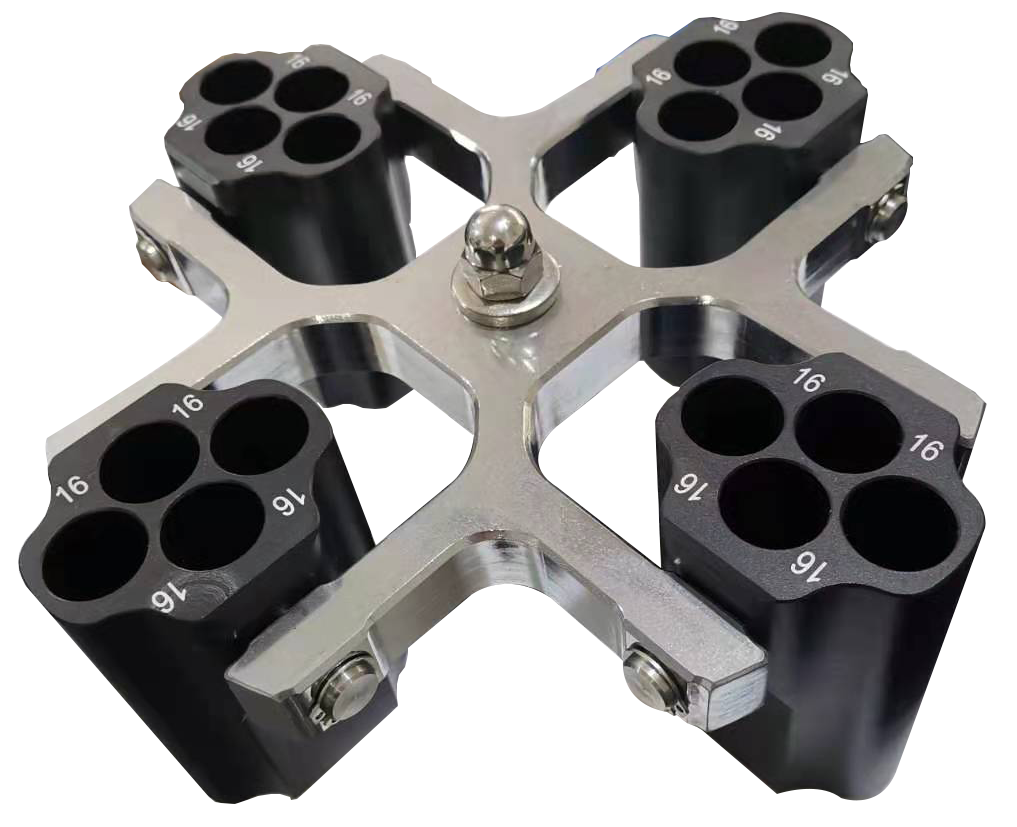

N0.1
| Swing rotor | 16×20ml 4000r/min 3500xg | Glass tube |

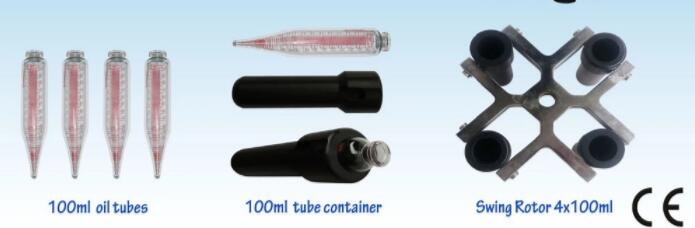

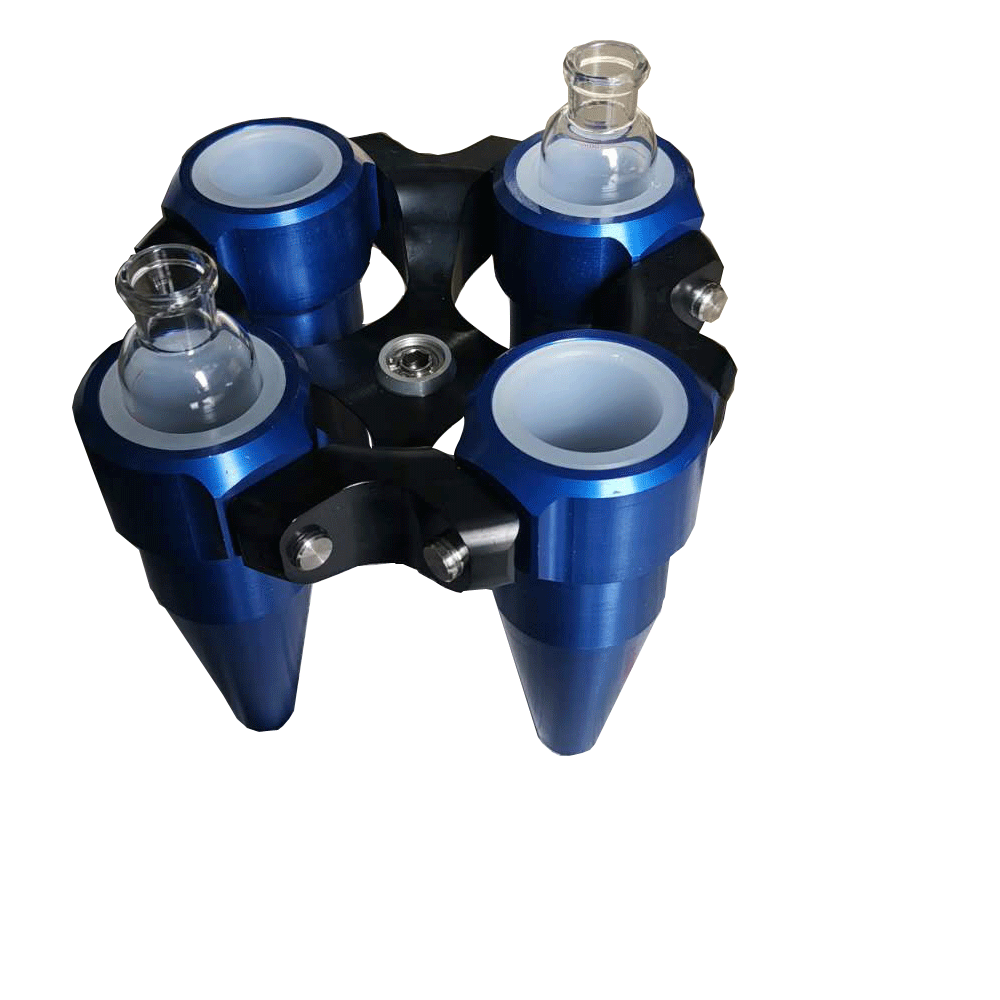

N0.2
| Swing rotor | 4×100ml 3200r/min 3577xg | Glass tube |

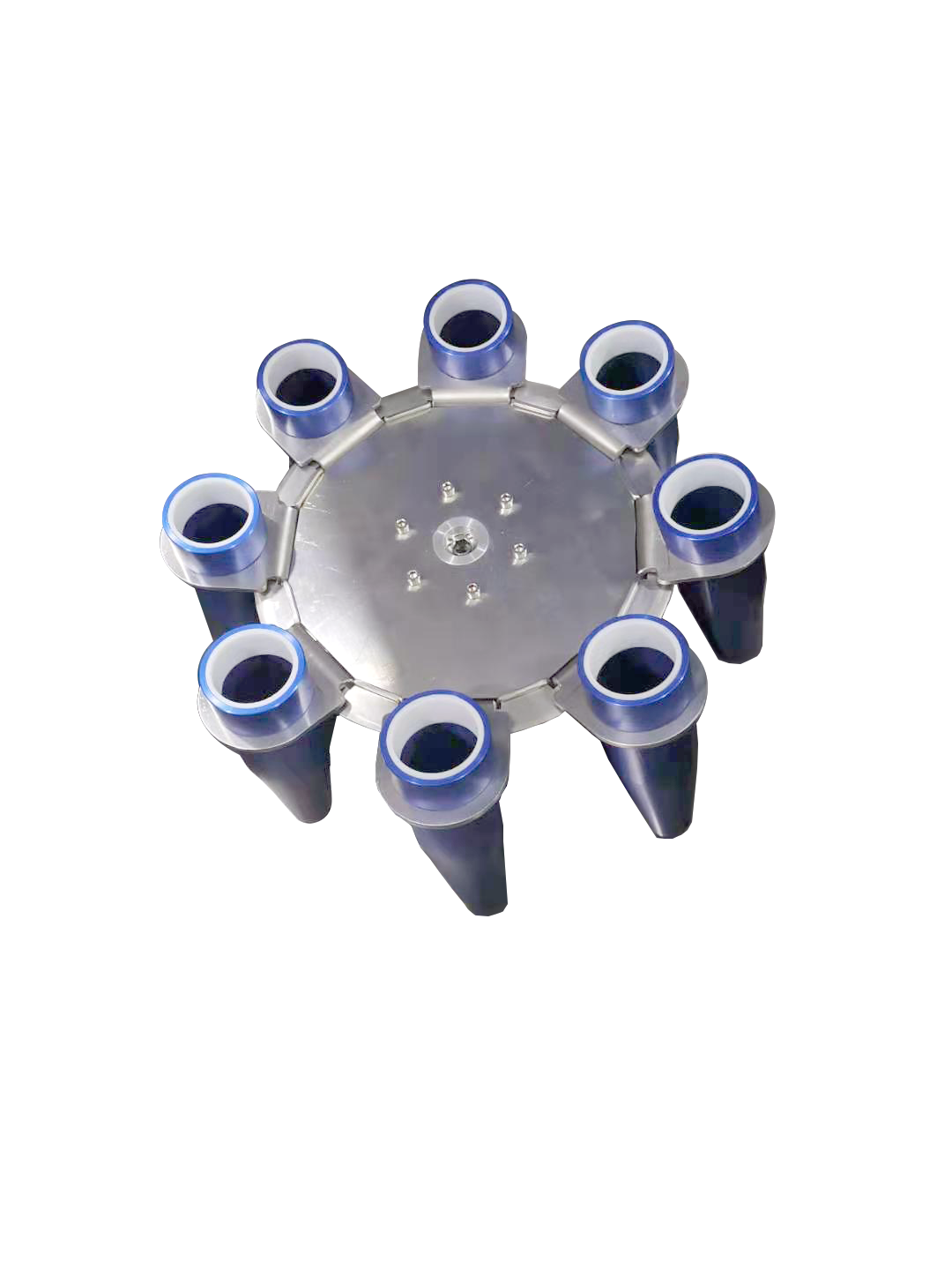

No.3
| Swing rotor | 6/8×50ml 3600 r/min 3548xg | Glass tube |
N0.4
| Swing rotor | 4×50ml 3200 r/min 3577xg | Glass tube |

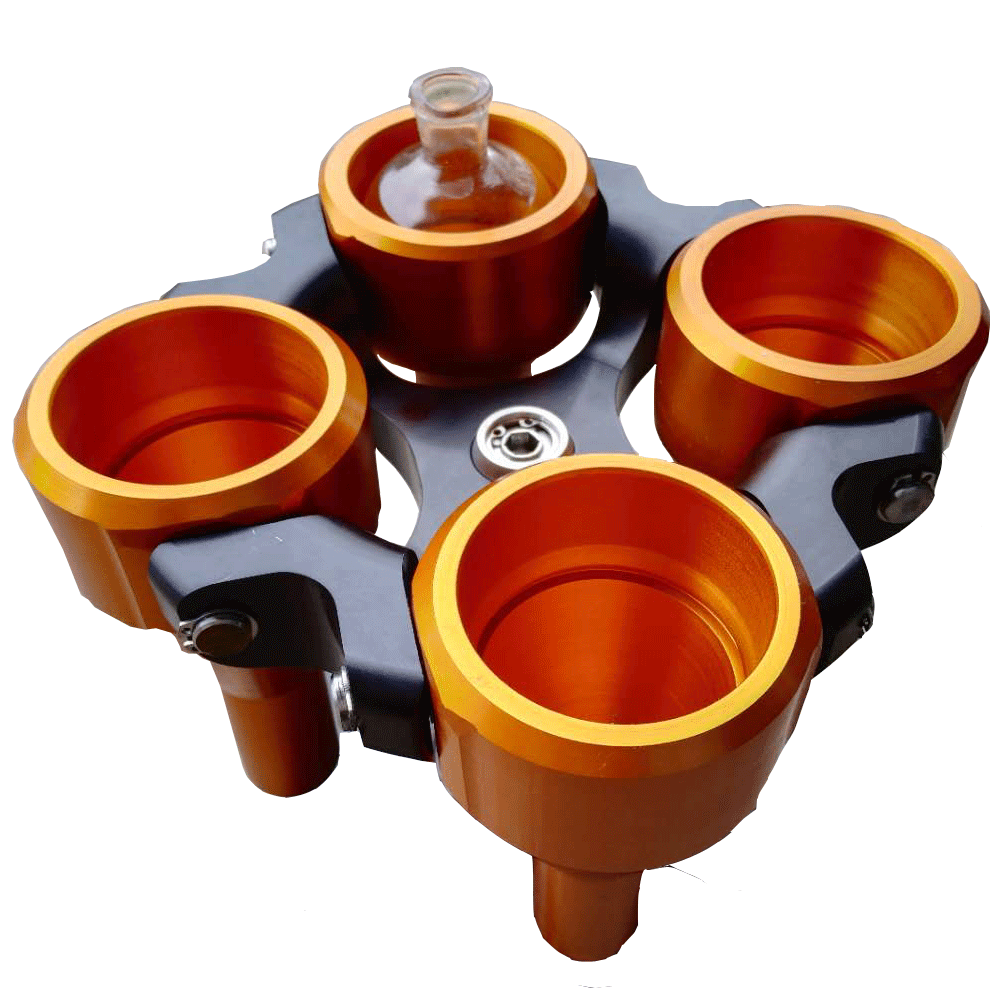

N0.5
| Swing rotor | 4×250ml 3200r/min 3577xg | Glass tube |
| |||
| |||
