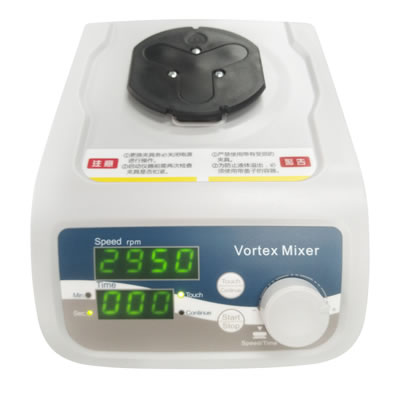

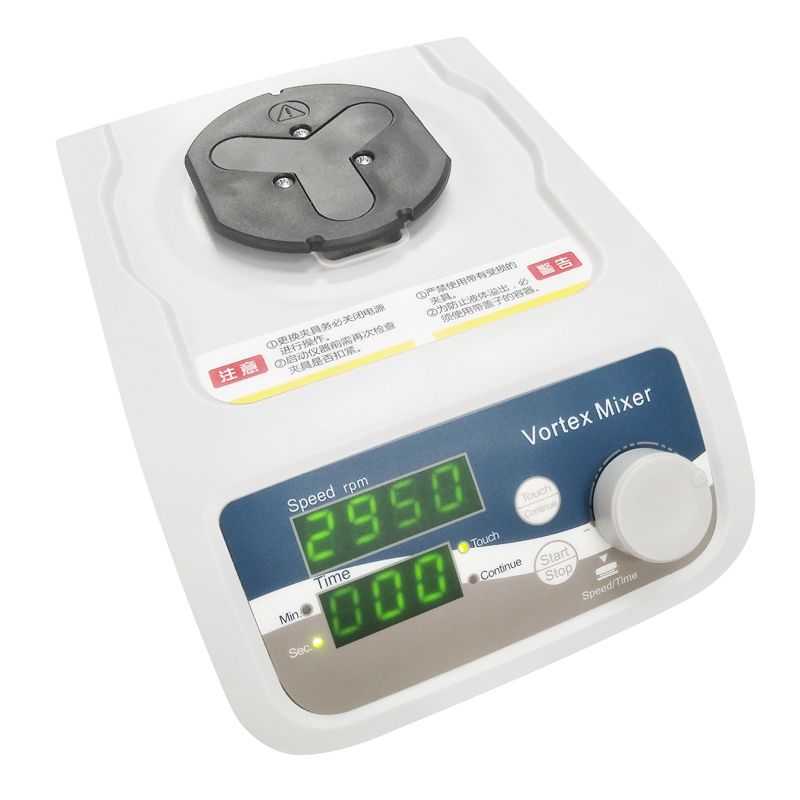

K10 Multifunctional Vortex Mixer

Applications:for Liquid, Powder, and Solid Mixing
Place of Origin:China
Brand Name:MKE
Model Number:K10
Certification:CE, ISO13485,ISO9001:2015
Warranty1 year warranty for the whole machine.
  • Description
  • Video
  • Technical Specifications
  • Competitive Advantage

Vortex mixer is widely used to mix samples in scientific and industrial labs, shops, and for home uses of mixing paint, ink, nail polish or other solutions.

Minimum Order Quantity:1
Price:To be negotiated
Packaging Details:Plywood Box
Delivery Time:7-10 working days
Payment Terms:T/T
Supply Ability:300sets/month

● ST smart analysis platform can quickly respond to different work modes. Intelligent control of rotational speed, time and work mode by fast processing chips and electronic sensing technology.

● More clip spares meet the test requirements of various tubes and plates. Efficient extension ensures fast testing.

● Perfect structure design with sufficient counterweight makes eccentric balanced operation. Stable and quiet working platform suitable for different samples mixing.

● Permanent magnet DC motor with less heat. Over temperature protection ensures long high speed mixing without faults. Brushless design with little spare parts can reduce the operation resistance, noise and interference.

● Two safety operation modes “short spin”and “continuous”. Easy switch over. Fast identify the maximum rotational speed of different clips. The timing and count down make the test more convenient and accurate.

2

Modules:

Item Configuration
K10-1 M8-1For the tube and small container with diameter less than 50 mm. trench structure to prevent container slippery in work.                                         Standard
K10-2 M8-2For the flask with diameter less than 85 mm.                                         Standard
K10-3 M8-3Microplate clipStandard
K10-4 M8-430 tube hole with 10 mm circular diameter.Standard
K10-5 M8-5 5 tube holes with 17 mm circular diameter.Standard
K10-6 M8-616 tube holes with 12-13 mm circular diameter.Standard
K10-7 M8-712 tube holes with 15 mm circular diameter.Optional
K10-8 M8-8PCR 0.2ml×8 tube strips or PCR 96 hole plate of 0.2 ml tube.Optional
K10-9 M8-912 tube holes with 17 mm circular diameter.Optional
K10-10 M8-102 holes with 50 mm circular diameter for conical/round bottom tube.Optional
K10-11 M8-11 4  holes with 25 mm circular diameter for vial /sample bottles.Optional

Power supplyDC24V/18WDriven mode/ motorDC24 permanent magnet motor/ direct drive
Control modePWM stepless speed adjustmentOperation mode of short spinPressing or continuous mode
Power fusePPTC/ self recovery fuse/no need to changeMax. Load1.5Kg
Rotational speed200-3000r/min.±15rpmVibration method /circular diametercircumference4.5(mm)

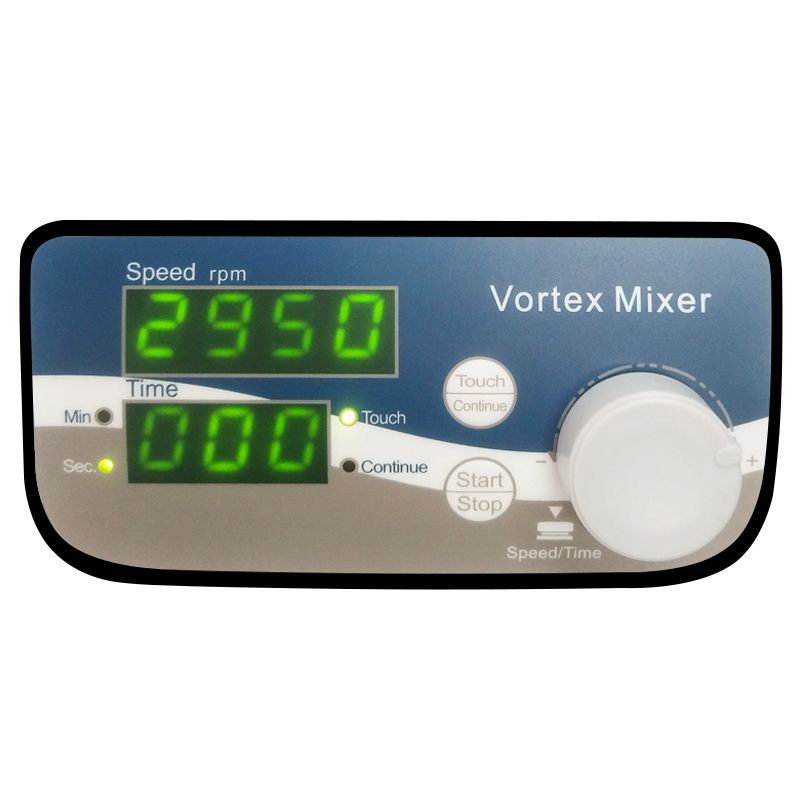

Clip identificationAuto check/ safe and efficientSpeed function / displayAll sections / high light LED digital tube
Time function1. Digital timing 1s-999min. Time count down. Positive timing for short spin.Overall dimensions198×138×67mm(L×W×H)
Weight4.1kgMax.noise level≤45dB(A)
Min.speed acceleration/deceleration time≤3s/≤3sAllowed ambient temperature / relative humidity+5~40℃/80%

1.Professional manufacturer, competitive price.

2.ISO9001:2015 Certification, CE Certification, all machines undergo strict quality testing and good packaging before transportation.

3.Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.

4.We can also offer customized solutions for clients' special requirements. Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
