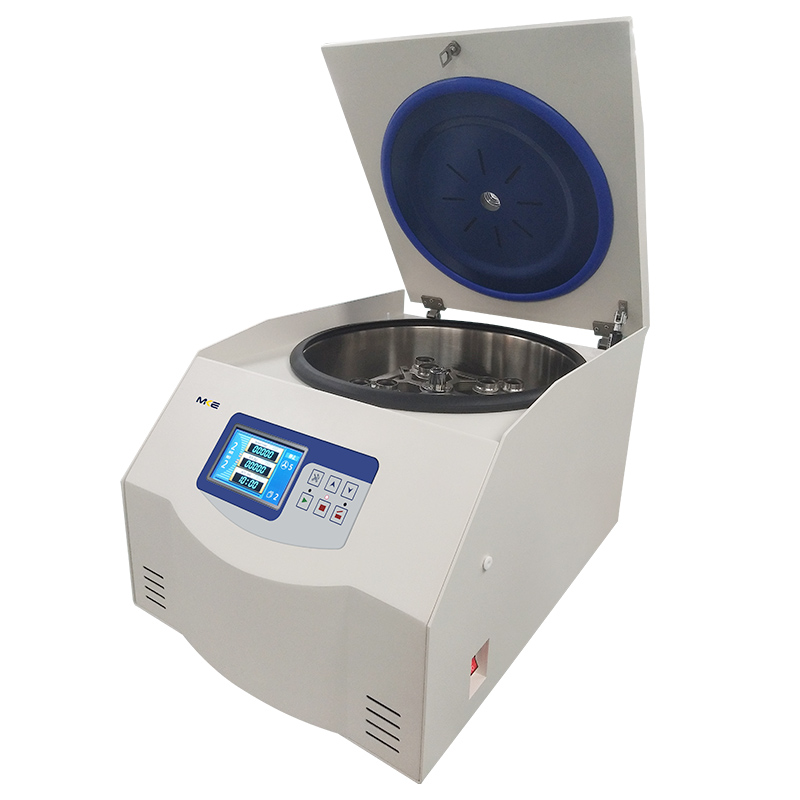

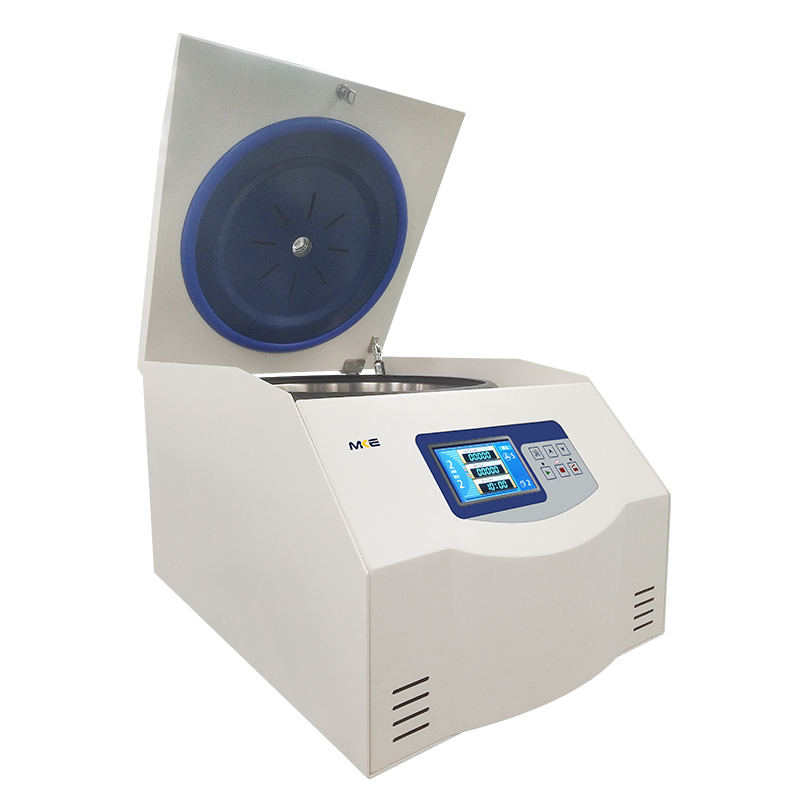

Portable Low Speed PRP Centrifuge PRF/CGF Multi-functional Variable Speed Machine

Applications:Hospitals, Veterinary Clinics, Food Labs, Universities & Colleges, Pharmaceutical Labs, Cell Culture Labs, beauty institution
Max.Speed6000rpm
Max. RCF3041xg
Max.Capacity8*100ml
Matched RotorsFixed angle rotor, swing out rotor
DisplayLCD
Model Number:TPRP4-M (old model:TD5B)
Certification:CE, ISO13485,ISO9001, SFDA
Warranty1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty.
  • Description
  • Technical Specifications
  • Rotors and Accessories
  • Competitive Advantage

Low speed centrifuge TPRP4-M is used for separating and purifying materials based on their density and size. They are essential tools in many scientific and medical fields, allowing researchers and scientists to study and understand various biological and chemical processes. Mainly used in orthopedics department, pain department, surgery department,medical cosmetology etc. PRP/ACT contain much growth factor, can speed up the recovery of soft tissue and bone tissue, reduce postoperative reaction,anti-infection, also can fresh skin.

Design

● Metal housing and stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.

● Observations window on lid for speed calibration and noise measurement.

● Microprocessor control with frequency conversion A.C. motor drive

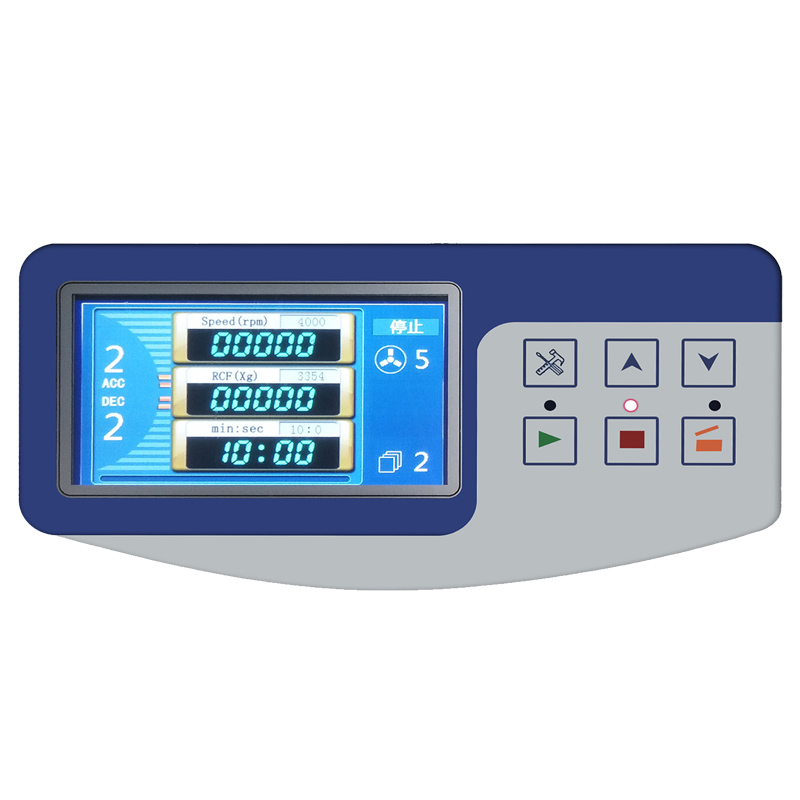

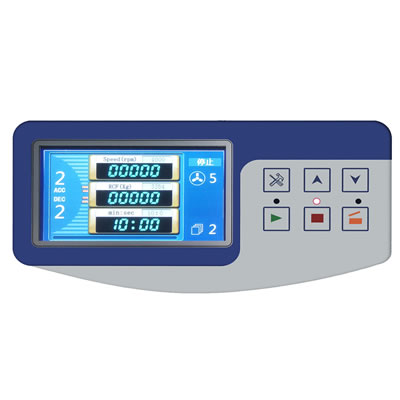

● LCD Display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.

● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.

● 25 programs stored, can transfer among RPR,CGF, APRF, IPRF.

● Built-in variable speed program, suitable for 60ml/20ml/10ml/8ml injection syringe or PRP separation.

● Swing buckets, adapters or rotors can be sterilized by high temperature.

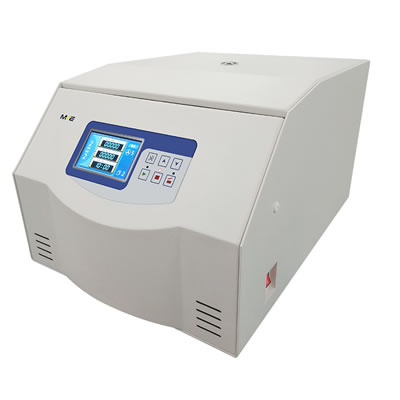

TPRP4-M: Low Speed Centrifuge

User friendly

● Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.

● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.

● Automatic lid-locking and holding during rotor run

● Easily exchangeable rotors, special rotor connector which makes it easy to load and unload rotor.

● Automatic troubleshooting with indication of error code and alarm on the screen.

● “Mute”patent technology. Noise level lower than 58 decibel at the highest rotational speed.

● Automatic rpm/rcf conversion

● Automatic rotor identification system, coded rotor identification prevents the rotor from over speeding.

TPRP4-M: Low Speed Centrifuge

Safety

● Produced according to international safety regulations (e.g. IEC 61010)

● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.

● Emergency lid-lock release when power failure(very useful in an unexpected power interruption).

● Gas hinge for lid drop protection.

● Safety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.

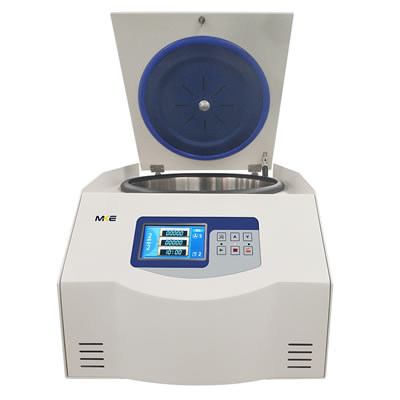

TPRP4-M: Low Speed Centrifuge
Speed range(rpm)0-4000rpm adjustableTime range1-99minutes 59s adjustable
Max Capacity(ml)8*100mlSpeed accuracy±10r/min
RCF range (xg)0-3041xg adjustableACC/DEC1-10 rates
Noise(dBA)≦58dB(A)Net weight(without rotor)40KGS
Power supplyAC220V,50HZ,5A, 160WDimension(mm)580x440x360mm(LxWxH)

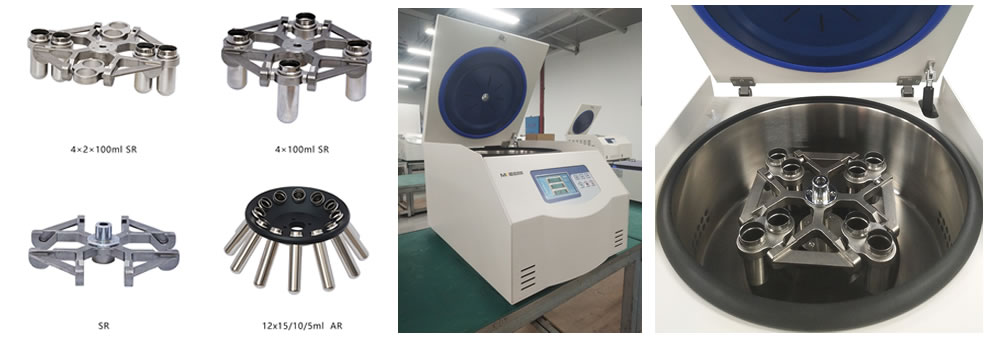

No.ItemMax. capacityMax.speedMax.RCFNote

NO.1

2

Angle rotor12x15/10/5ml6000r/min6080xgPP/PC tube
Adapter12x2mlPP/PC tube

NO.2

5

Swing rotorsteel frame rotor4000r/min3041xgPP/PC tube
Swing frame4x100mlPP/PC tube
Adapter4x50mlPP/PC tube
Adapter4x20mlPP/PC tube
Adapter4x8/10mlPP/PC tube

NO.3

3

Swing rotorsteel frame rotor4000r/min3041xgInjection syringe or PRP tube
Swing frame4x2x100mlPP/PC tube
Adapter4x2x100mlPP/PC tube
Adapter4x2x20mlPP/PC tube
Adapter4x2x8/10mlPP/PC tube
未命名-3

1.Professional centrifuge manufacturer, competitive price.

2.ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.

3.Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.

4.We can also offer customized solutions for clients' special requirements.

5.Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
