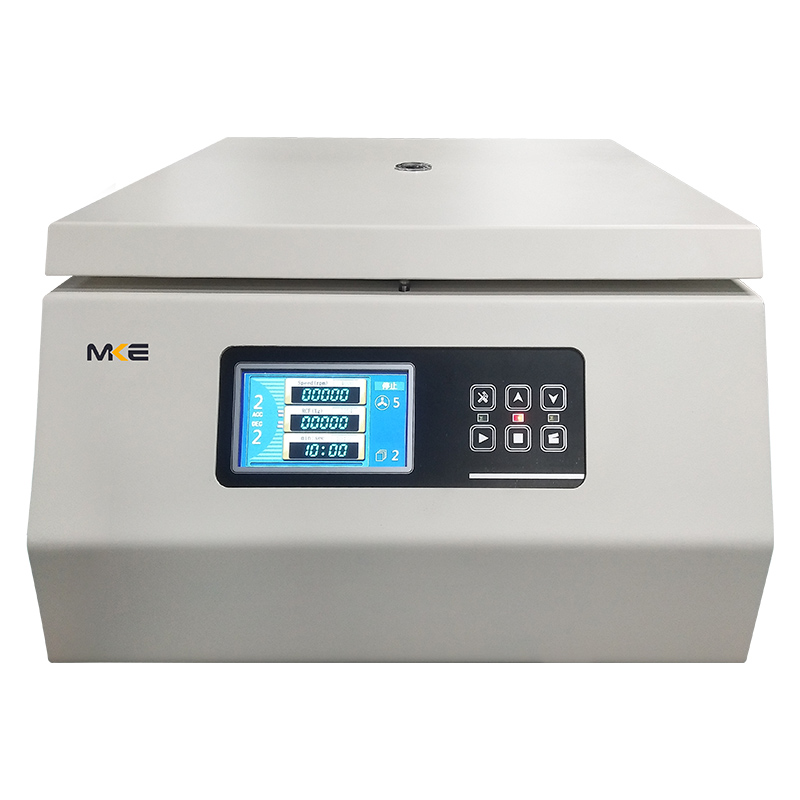

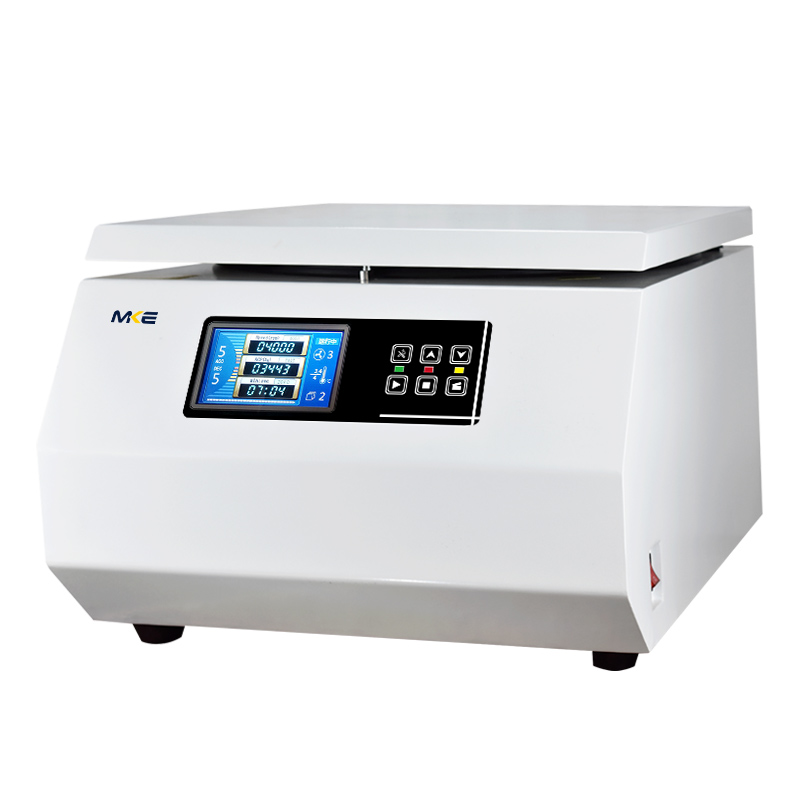

Low-Speed Centrifuge with Multiple Rotor Options for Versatile Use
| Applications: | Hospitals,Veterinary clinics,Food labs,Universities & colleges, Pharmaceutical labs, Cell culture labs,Infant stations |
| Max.Speed | 6000rpm |
| Max.RCF | 4752xg |
| Max.Capacity | 4*750ml swing out rotor |
| Matched Rotors | Fixed angle rotors + Swing buckets rotor |
| Display | LCD |
| Model Number: | VL-6B |
| Certification: | CE, ISO13485,ISO9001, SFDA |
| Warranty | 1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty. |
- Description
- Video
- Technical Specifications
- Rotors and Accessories
- Competitive Advantage

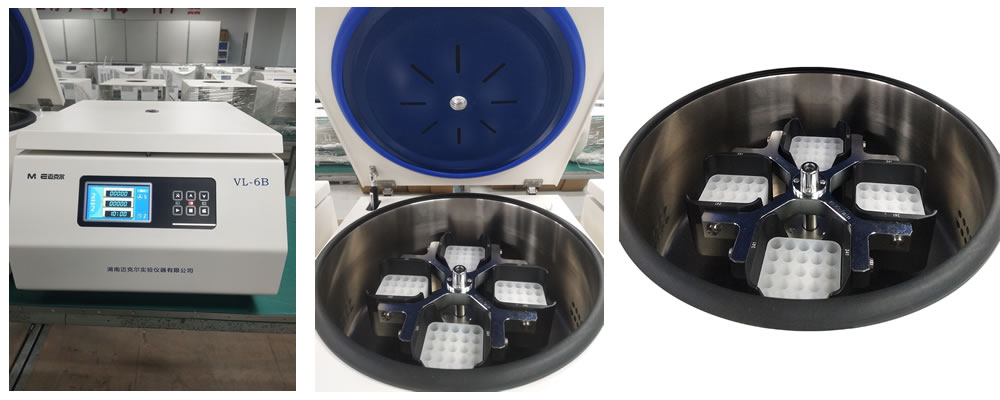

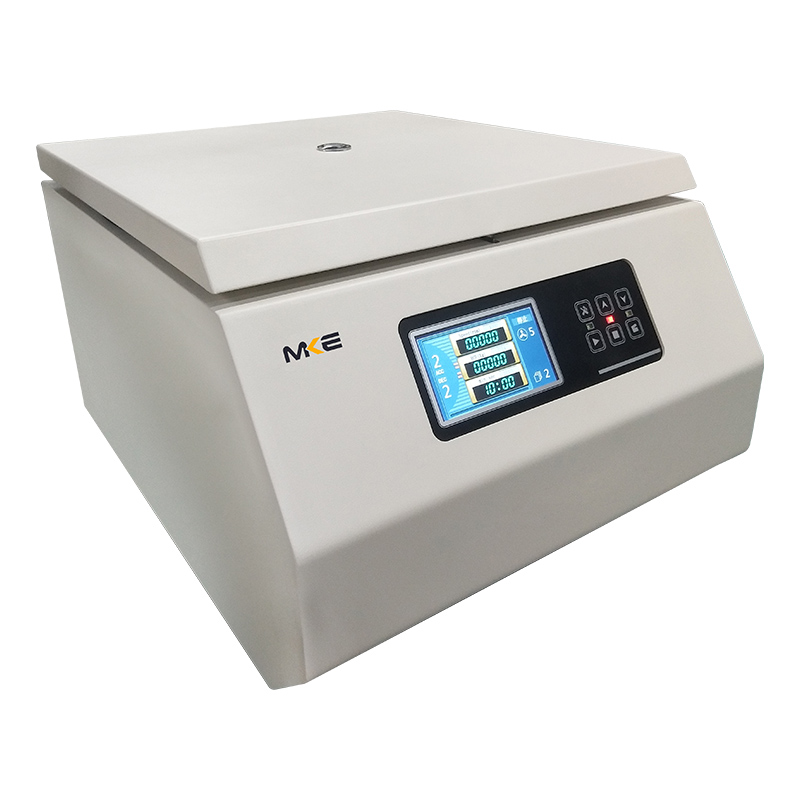

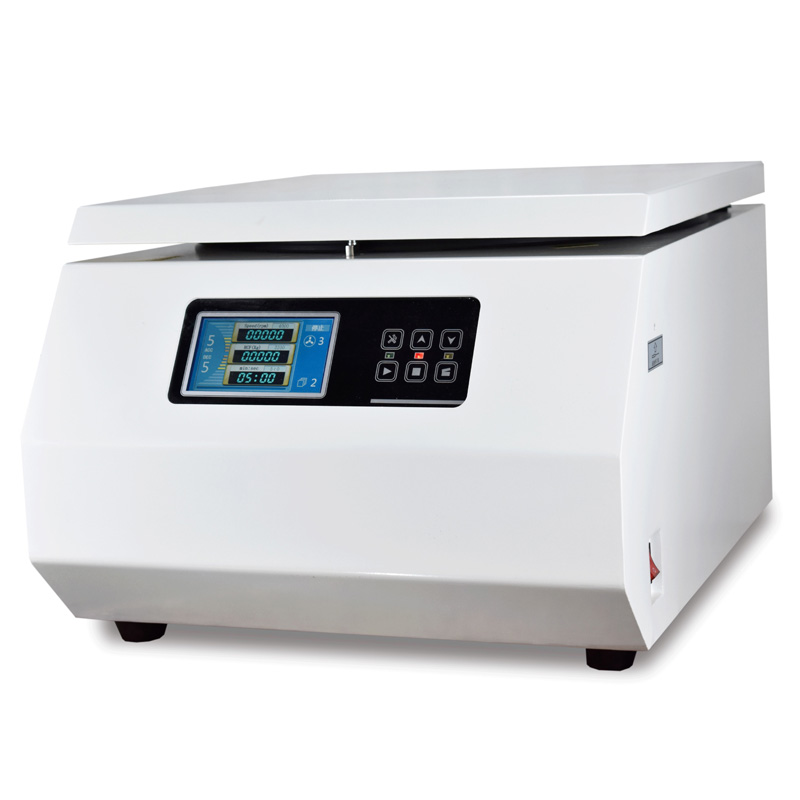

The benchtop centrifuge VL-6B is available with numerous swing-out and fixed-angle rotors, along with various buckets and adapters. The extensive range of accessories can accommodate tubes and flasks from 0.5 ml to 750 ml as well as microtiter and deepwell plates. The maximum RCF of more than 6,080 x g is suitable for many application areas in clinical diagnostics, veterinary medicine, pharmaceutics, environmental analysis and industrial production, as well as universities and research facilities.
Design

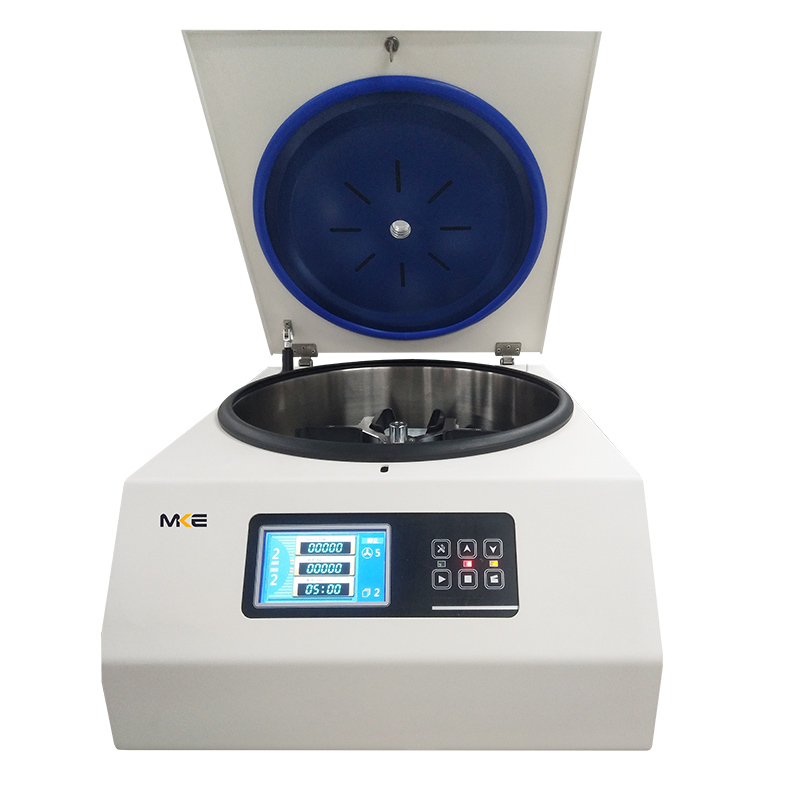

● Metal housing, metal lid, and 304# stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.
● Observations window on lid for speed calibration and noise measurement.
● Microprocessor control with frequency conversion A.C. motor drive

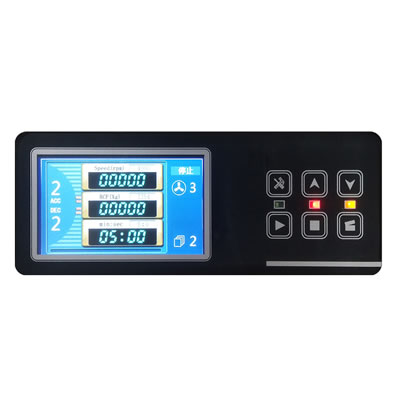

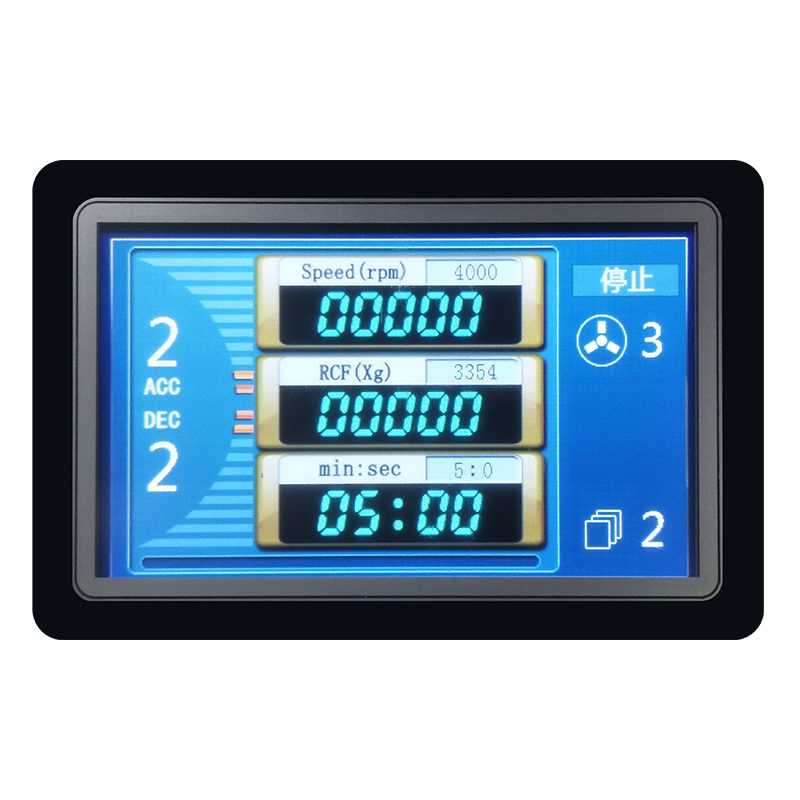

● LCD Display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.
● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.
● 6 levels damping for anti vibration to achieve the best centrifugal effect. Adapters of 0.5-500 ml are available.
User friendly
● Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.
● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.
● Automatic lid-locking and holding during rotor run
● Easily exchangeable rotors
● Automatic troubleshooting with indication of error code and alarm on the screen.
● “Mute”patent technology. Noise level lower than 58 decibel at the highest rotational speed.
Safety
● Produced according to international safety regulations (e.g. IEC 61010)
● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
● Emergency lid-lock release when power failure.
● Gas hinge for lid drop protection.
● Safety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.
| Speed range(rpm) | 0-6000rpm adjustable | Speed accuracy | ±10rpm |
| Max Capacity(ml) | 4*750ml | RCF range (xg) | 0-4752xg adjustable |
| Display | 7”LCD | Time range | 0-99minutes 59s adjustable |
| Noise(dBA) | ≦58dB(A) | Acceleration /Deceleration rates | 1-- 10 |
| Dimension(mm) | 620x480x375mm | Motor | Frequency Converter motor |
| Net weight(without rotor) | 50KGS | Power supply | AC220V,50HZ,10A,750W |
| No. | Rotor | Capacity | Max. speed | Max.RCF | Note |
NO.1 | Angle rotor | 12×15ml | 6000r/min | 4588xg | PP/PC tube |
NO.2 | Swing rotor | Steel frame rotor | 5000r/min | 4752xg | |
| Swing frame | 4×100ml | PP/PC tube | |||
| Swing frame | 4×50ml | PP/PC tube | |||
| Adapter | 4×15/10ml | PP/PC tube | |||
NO.3 | Swing rotor | Steel frame rotor | 4000r/min | 3041xg | PP/PC tube |
| Swing frame | 8×100ml | PP/PC tube | |||
| Swing frame | 8×50ml | PP/PC tube | |||
| Adapter | 8×15/10ml | PP/PC/tube/vacuum blood collection tube | |||
| Swing frame | 4×8×15/10/5ml | PP/PC tube/vacuum blood collection tube | |||
| Rack | 4×12×5/2ml | vacuum blood collection tube | |||
NO.4 | Swing bucket | 4×600ml | 4000r/min | 3354xg | Square cup |
| Adapter | 4×25×5/2ml | vacuum blood collection tube | |||
| Adapter | 4×12×15/10ml | PP/PC tube | |||
| Adapter | 4×5×50ml | PP/PC tube | |||
| Adapter | 4×4×100ml | PP/PC tube | |||
NO.5 | Swing bucket | 4×500ml | 4000r/min | 3354xg | Round cup |
| Adapter | 4×17×5/2ml | vacuum blood collection tube | |||
| Adapter | 4×8×15/10ml | PP/PC tube | |||
| Adapter | 4×3×50ml | PP/PC tube | |||
| Adapter | 4×1×100ml | PP/PC tube | |||
NO.6 | Swing bucket | 4×750ml | 4000r/min | 3443xg | Round cup |
| Adapter | 4×26×5/2ml | vacuum blood collection tube | |||
| Adapter | 4×13×15/10ml | PP/PC tube | |||
| Adapter | 4×5×50ml | PP/PC tube | |||
| Adapter | 4×3×100ml | PP/PC tube | |||
NO.7 | Microplate rotor | 2×2×96 hole | 4000r/min | 2860xg | Square cup |
| Adapter | 2×32×1.5ml | PP/PC tube | |||
NO.8 | Swing rotor | 6×2×30ml | 4500r/min | 3170xg | Suitable for liquid-based cell adsorbent sandwich cup |
 | |||||
1. Professional centrifuge manufacturer, competitive price.
2. ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.
3. Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.
4. We can also offer customized solutions for clients' special requirements.
5. Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
