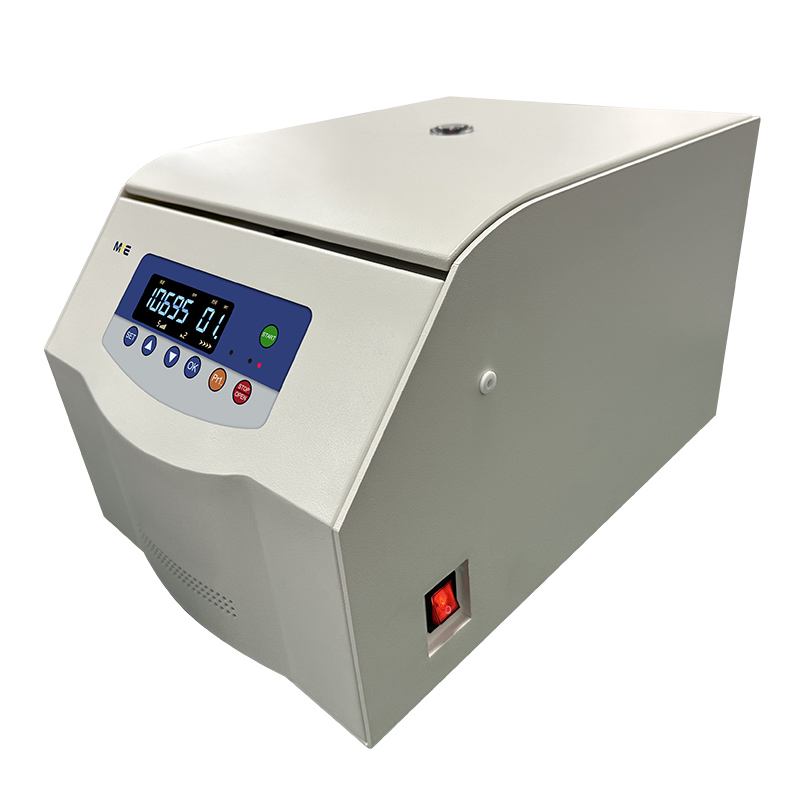

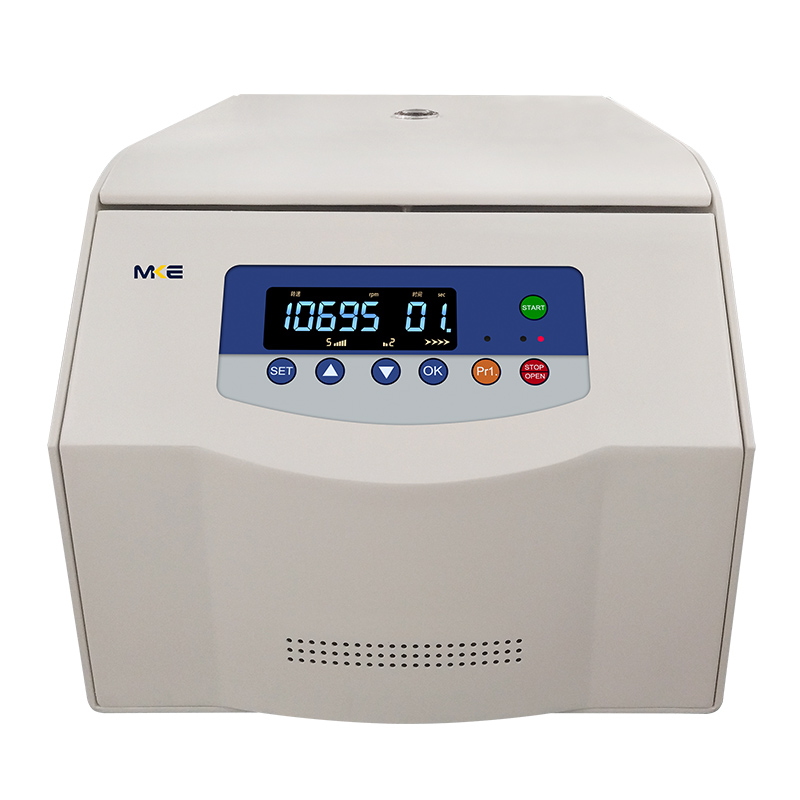

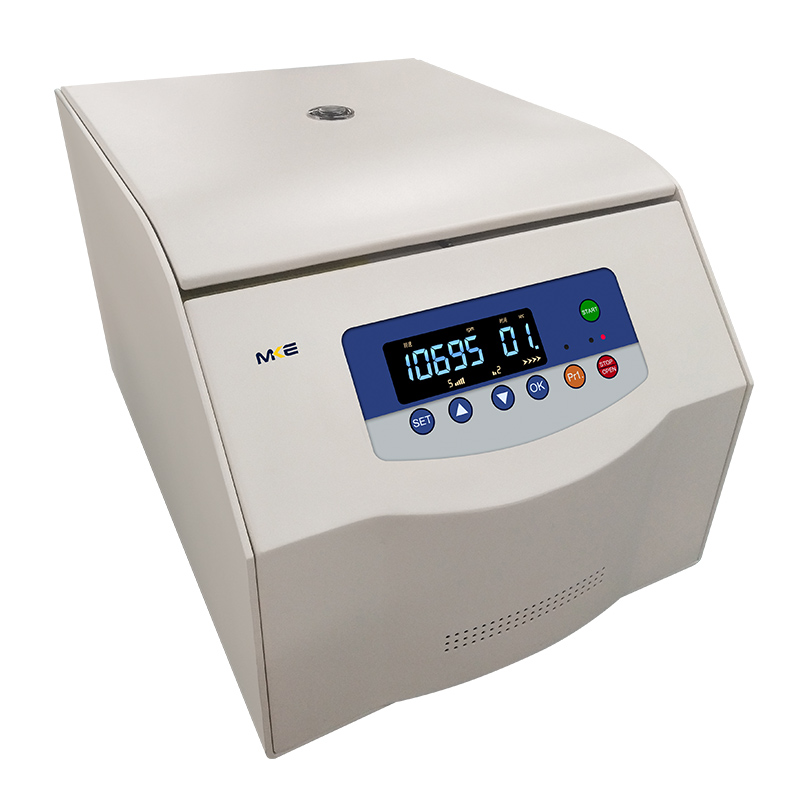

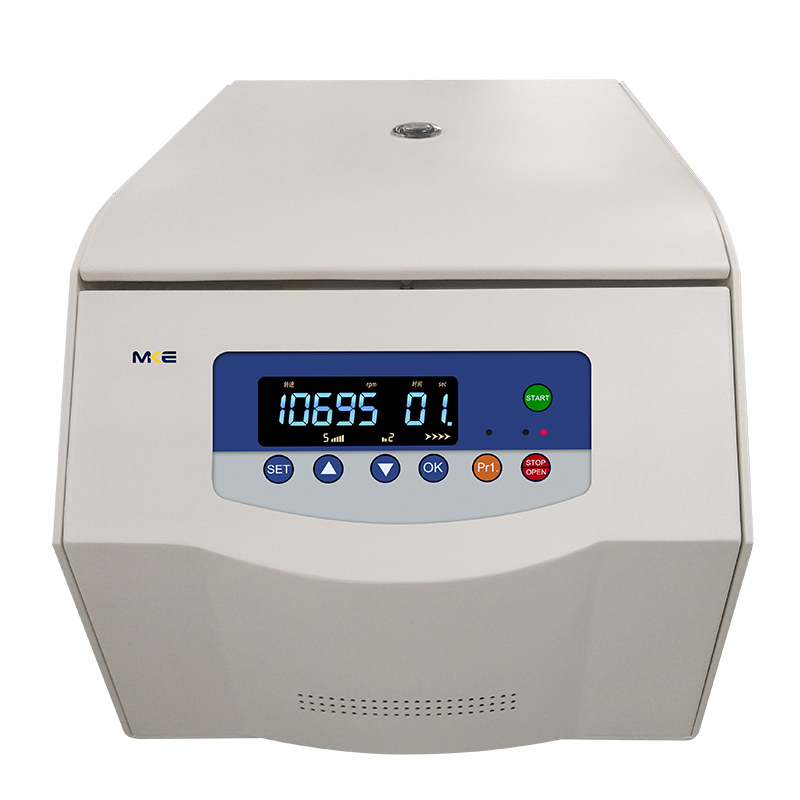

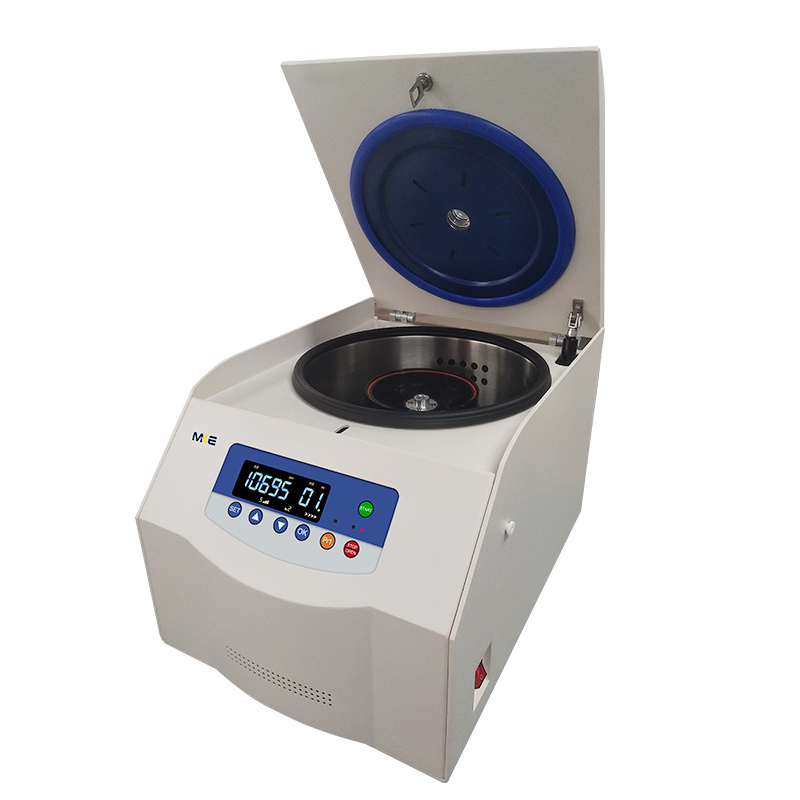

High Speed Benchtop Centrifuge with 30 Self-defined Operating Procedures
| Applications: | Hospitals,Veterinary clinics,Food labs,Universities & colleges, Pharmaceutical labs, Cell culture labs,Infant stations |
| Max.Speed | 16500rpm |
| Max.RCF | 23120xg |
| Max.Capacity | 4*100ml fixed angle rotor |
| Matched Rotors | Fixed angle rotors |
| Display | LCD |
| Model Number: | T16-M (old model:TG16WS) |
| Certification: | CE, ISO13485,ISO9001, SFDA |
| Warranty | 1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty. |
- Description
- Video
- Technical Specifications
- Rotors and Accessories
- Competitive Advantage
Our high speed centrifuge T16-M has a wide range of fixed-angle rotors, this all-purpose centrifuge can hold PCR tubes, test tubes, round-bottom tubes, and it provides extraordinary capacity with 4 x 100 ml in a fixed angle rotor.
With an extensive range of rotors and accessories and high RCF values up to 23,120 x g, it is suitable for a wide variety of applications.
Design

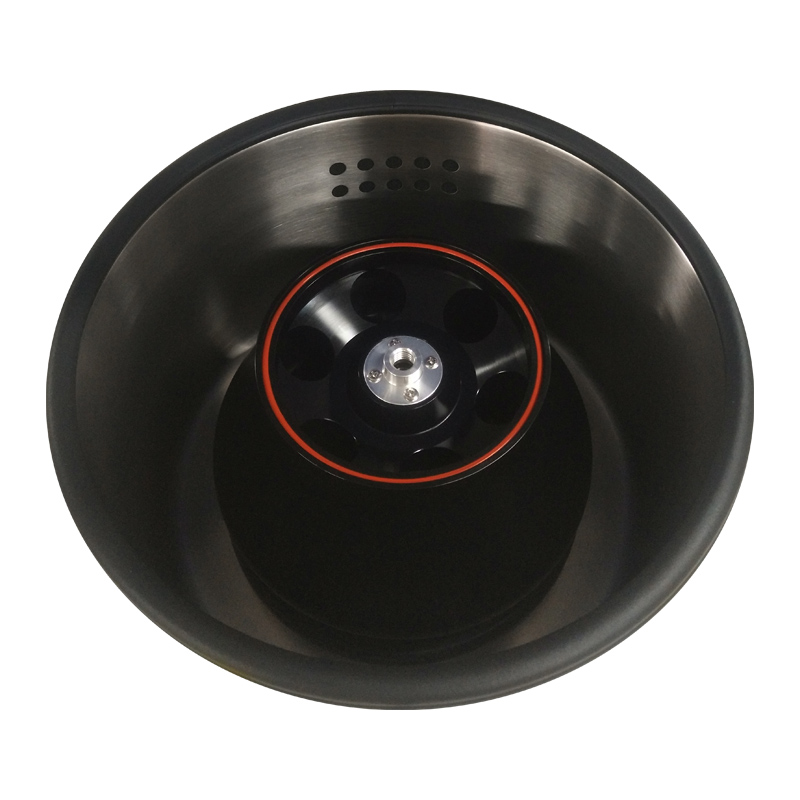

● Metal housing, metal lid, and stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.
● Observations window on lid for speed calibration and noise measurement.
● Microprocessor control with frequency conversion A.C. motor drive

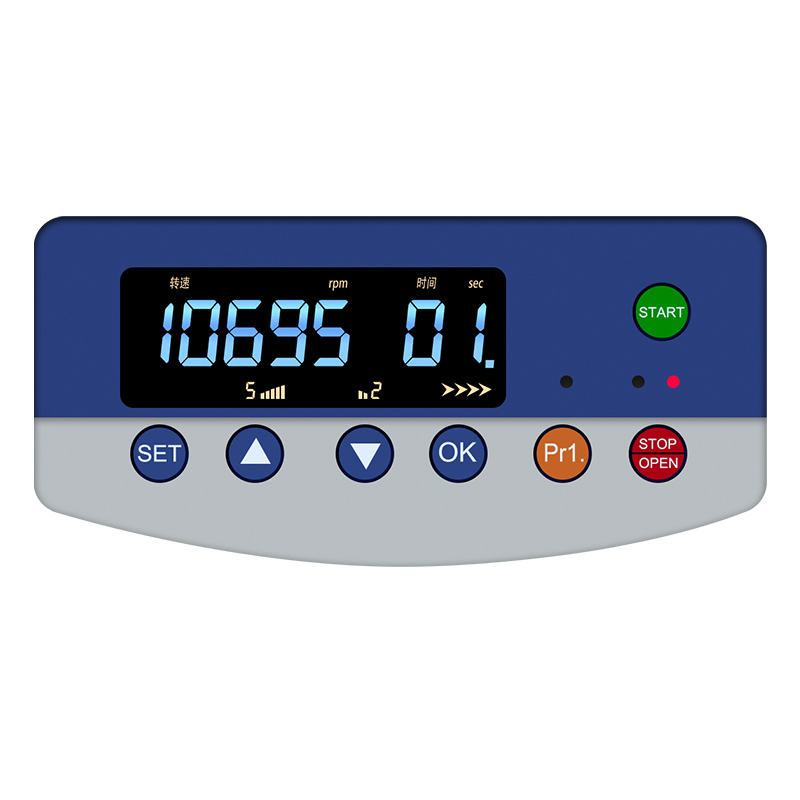

● LCD Display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.
● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.
User friendly
● 3 levels damping for anti vibration. Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.
● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.

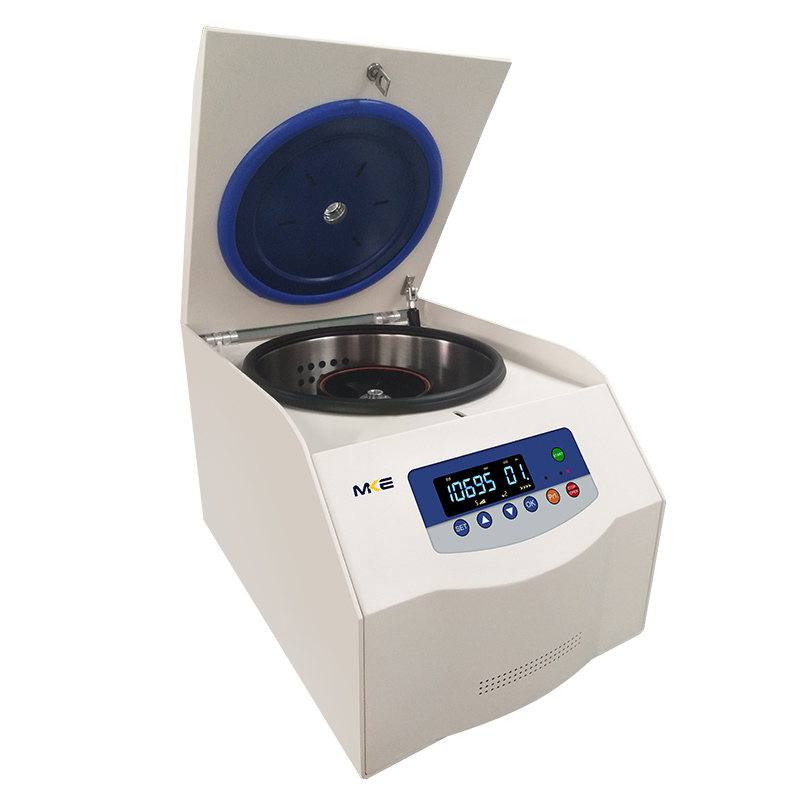

● Automatic lid-locking and holding during rotor run
● Easily exchangeable rotors, special rotor connector which makes it easy to load and unload rotor.
● Automatic troubleshooting with indication of error code and alarm on the screen.
● “Mute”patent technology. Noise level lower than 58 decibel at the highest rotational speed.
● Speed up to 16500rpm depends on rotor type
Safety
● Produced according to international safety regulations (e.g. IEC 61010)
● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
● Emergency lid-lock release when power failure.
● Gas hinge for lid drop protection.
● Safety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.
| Speed range(rpm) | 0-16500rpm adjustable | Speed accuracy | ±10rpm |
| Max Capacity(ml) | 4*100ml | RCF range (xg) | 0-23120xg adjustable |
| Display | 7”LCD | Time range | 0-99minutes adjustable |
| Noise(dBA) | ≦58dB(A) | Acceleration /Deceleration rates | 0-- 9 |
| Dimension(mm) | 470x345x295mm | Motor | Frequency Converter motor |
| Net weight(without rotor) | 30KGS | Power supply | AC220V,50HZ,A,600W |
| No. | Rotor | Capacity | Max.speed | Max.RCF | Note |
NO.1 | Angle rotor | 12×1.5/2.2ml | 16500r/min | 19175xg | PP/PC tube |
| Adapter | 12×0.5/0.2ml | PP/PC tube | |||
NO.2 | Angle rotor | 12×5ml | 16500r/min | 19480xg | PP/PC tube |
| Adapter | 12×1.5ml | PP/PC tube | |||
NO.3 | Angle rotor | 12×10ml | 12000r/min | 16480xg | PP/PC tube |
| Adapter | 12×5ml | PP/PC tube | |||
NO.4 | Angle rotor | 24×1.5/2.2ml | 14000r/min | 17530xg | PP/PC tube |
| Adapter | 24×0.5/0.2ml | PP/PC tube | |||
NO.5 | Angle rotor | 36×1.5/2.2ml | 13000r/min | 15400xg | PP/PC tube |
| Adapter | 36×0.5/0.2ml | PP/PC tube | |||
NO.6 | Angle rotor | 12×8×0.2ml | 15000r/min | 23120xg | PCR 8-tube strips |
NO.7 | Angle rotor | 10×15ml | 11000r/min | 14745xg | PP/PC tube |
| Adapter | 10×10ml | PP/PC tube | |||
| Adapter | 10×5ml | PP/PC tube | |||
| Adapter | 10×1.5ml | PP/PC tube | |||
NO.8 | Angle rotor | 6×50ml | 11000r/min | 12175xg | PP/PC tube |
| Adapter | 6×15/10ml | PP/PC tube | |||
| Adapter | 6×3×1.5ml | PP/PC tube | |||
NO.9 | Angle rotor | 4×100ml | 10000r/min | 10975xg | PP/PC tube |
| Adapter | 4×50ml | PP/PC tube | |||
| Adapter | 4×15/10ml | PP/PC tube | |||
| Adapter | 4×5/1.5ml | PP/PC tube | |||
 | |||||
1. Professional centrifuge manufacturer, competitive price.
2. ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.
3. Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.
4. We can also offer customized solutions for clients' special requirements.
5. Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
