Affordable Low Speed Centrifuge with Timer and Speed Control for Biology Research
| Applications: | Hospitals,Veterinary clinics,Food labs,Universities & colleges, Pharmaceutical labs, Cell culture labs |
| Max.Speed | 4000rpm |
| Max.RCF | 2100xg |
| Max.Capacity | 8*15ml angle rotor |
| Matched Rotors | Fixed angle rotors |
| Display | Digital |
| Model Number: | TD4 |
| Certification: | CE, ISO13485,ISO9001, SFDA |
| Warranty | 1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty. |
- Description
- Video
- Technical Specifications
- Rotors and Accessories
- Competitive Advantage
Low Speed, small size and light weight, low noise, it is the first-choice instrument for small-volume separation in hospitals, research institutes and universities at all levels, specially for cosmetic surgery hospitals, beauty salons, health centers etc.
Design
● Metal housing, metal lid, and 304# stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.
● Aluminum alloy rotor
● Observations window on lid for speed calibration and noise measurement.
● Microprocessor control with maintenance-free brushless DC motor

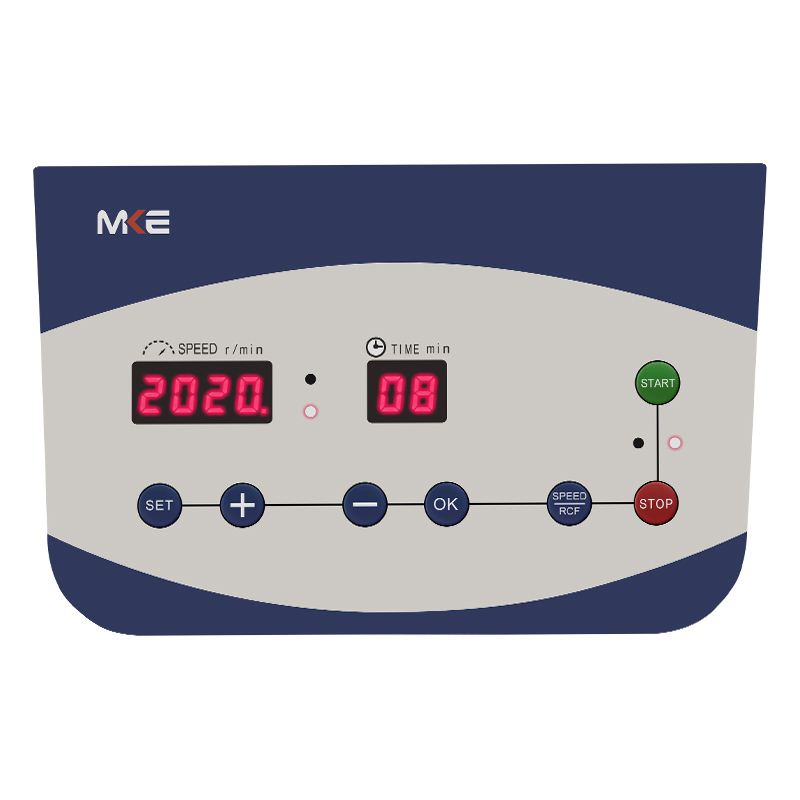

● Digital display the parameters of Speed, Timer, RCF.
● Small size and light weight, with high-strength ABS structure, long lasting and easy move.
User friendly
● Automatic lid-locking and holding during rotor run.
● Easily exchangeable rotors.
● Real time Conversion for r/min/RCF
● Automatic troubleshooting with indication of error code and alarm on the screen.
● “Mute”patent technology. Noise level lower than 55 decibel at the highest rotational speed.
Safety
● Produced according to international safety regulations (e.g. IEC 61010).
● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
● Emergency lid-lock release when power failure.
● Gas hinge for lid drop protection.
● Safety protections are made for the over speed to ensure the man machine safety.
| Speed range(rpm) | 0-4000rpm adjustable | Speed accuracy | ±10rpm |
| Max Capacity(ml) | 8*15ml | RCF range (xg) | 0-2100xg adjustable |
| Noise(dBA) | ≦55dB(A) | Time range | 0-99minutes adjustable |
| Dimension(mm) | 315x275x210mm | Net weight(without rotor) | 7KGS |
| Power supply | AC220V,50HZ,10A,60W | ||

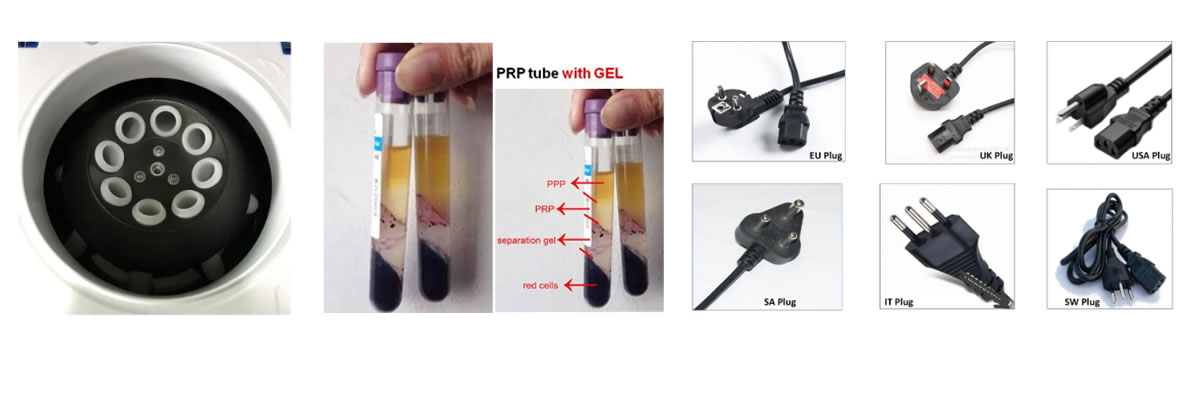

| No. | Rotor | Capacity | Max. speed | Max. RCF | Note |

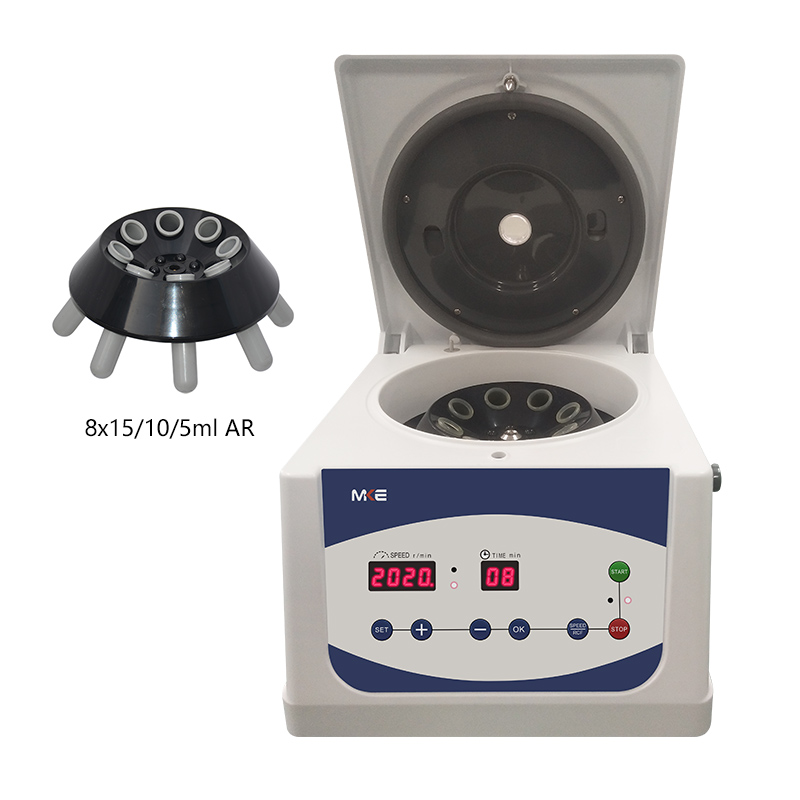

NO.1 | Angle rotor | 8×15/10/5ml | 4000r/min | 2100xg | Blood collection tube/PP/PC tube |
| Adapter | 8×2ml | Blood collection tube | |||
NO.2 | Adapter | 12×5ml | 4000r/min | 2100xg | Blood collection tube |
| Adapter | 12×2ml | Blood collection tube | |||
 | |||||
1. Professional centrifuge manufacturer, competitive price.
2. ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.
3. Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.
4. We can also offer customized solutions for clients' special requirements.
5. Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
