MI16H Benchtop High-Quality Unrefrigerated High Speed Microcentrifuge

Applications:Hospitals,Veterinary clinics,Food labs,Universities & colleges, Pharmaceutical labs, Cell culture labs,Infant stations
Max.Speed16500rpm
Max.RCF19480xg
Max.Capacity12*5ml
Matched RotorsFixed angle rotors
DisplayLCD Display
Model Number:MI16H (old model:HK-16C)
Certification:CE, ISO13485,ISO9001, SFDA
Warranty1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty.
  • Description
  • Video
  • Technical Specifications
  • Rotors and Accessories
  • Competitive Advantage

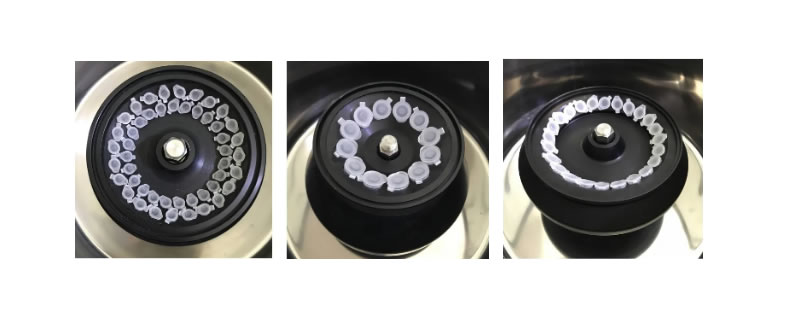

The MI16H micro centrifuge boasts an extensive array of rotors designed to cater to various needs, including those for PCR strips, filter tubes, 2ml and 5ml micro-liter tubes.

With its exceptional performance and diverse rotor options, the MI16H is the perfect choice for a wide range of applications, including microbiological studies, protein biochemistry, and clinical chemistry. The utilization of micro tubes ranging from 1.5ml to 5ml in micro centrifuges serves multiple purposes, such as sample pelleting, sedimentation, preparation, and purification.

Design

● Metal housing, metal lid, and stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.

● Observations window on lid for speed calibration and noise measurement.

● Microprocessor control with frequency conversion A.C. motor drive

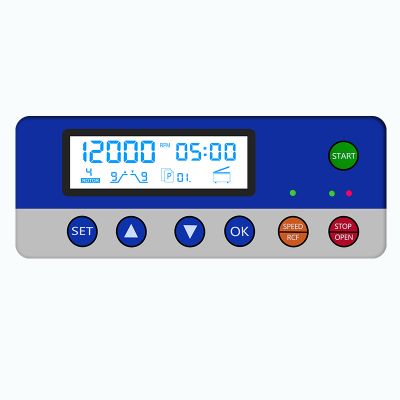

● Large LED screen with clear indication of running condition, the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.

● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.

未命名-5
6

User friendly

● Programmable and storable, stores up to 10 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.

● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.Fast acceleration rates reaching 165,000 rpm in just 15 seconds, and the same time goes for braking ramp.

● Automatic lid-locking and holding during rotor run

● Easily exchangeable rotors

● Automatic troubleshooting with indication of error code and alarm on the screen.

● Noise level lower than 55 decibel at the highest rotational speed.

Safety

● Produced according to international safety regulations (e.g. IEC 61010)

● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.

● Emergency Switch: Manual opening of lid in case of power failure.

● Gas hinge for lid drop protection.

● Safety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.

HK-16C-8

Max. RPM / Fixed angle16,500rpm/ 19,480 x gSpeed accuracy±100r/min
Max.Capacity,Fixed Angle12 x 5mlNoise level (dB)≦55dB(A)
Safety lid lockYesACC/DEC10/10 steps
Max. acceleration time [s]15 secondsMax. braking time [s]15 seconds
DisplayLCDProgram memory10
Automatic rotor identificationYesLid drop protectionYes
Motorized lid open & closeYesImbalance cut-offYes
Parameters on display windowRPM (RCF), Time, ACC, DECPower requirement150W
Time control1-99minutes 59s adjustablePower supplyAC220V,50HZ,10A; 110V optional
Dimension (W x D x H, mm)340*260*220mmWeight without rotor (kg)15 kg

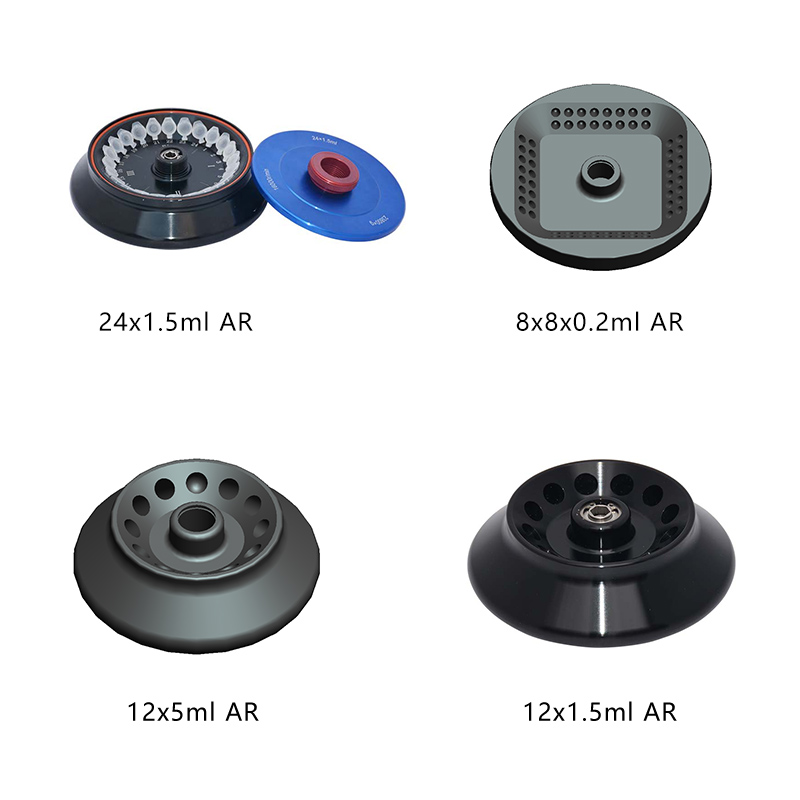

No.RotorMax.CapacityMax. speedMax. RCFNote
NO.101Angle rotor12×1.5/2.2ml16500r/min19175xgEP/PP tube
Adapter12×0.5/0.2mlEP/PP tube
NO.22号角转子12x1Angle rotor12×5ml16500r/min19480xgEP/PP tube
Adapter12×1.5mlEP/PP tube
NO.33号角转子8x8x0Angle rotor8×8×0.2ml13500r/min16480xgPCR 8 strip tubes
NO.44号角转子24x1Angle rotor

24×1.5-2.2ml

14000r/min17530xgEP/PP tube
Adapter24×0.5/0.2mlEP666/PP tube

未命名-4

1.Professional centrifuge manufacturer, competitive price.

2.ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.

3.Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.

4.We can also offer customized solutions for clients' special requirements.

5.Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
