HOT PRODUCTS
Clinical Centrifuge 6000Rpm for 2Ml /5Ml/10Ml Blood Bd Vacutainer Tube With Biosafety Cover
| Applications: | Industrial labs,Hospitals, Veterinary Clinics, Food Labs, Universities & Colleges, Pharmaceutical Labs, Cell Culture Labs |
| Max.Speed | 6000rpm |
| Max. RCF | 4588xg |
| Max.Capacity | 4*1000ml |
| Matched Rotors | Fixed angle rotor, swing bucket with chamber wind cover, Air tightness bucket with wind cover |
| Display | LCD |
| Model Number: | MK650 |
| Certification: | CE, ISO13485,ISO9001, SFDA |
| Warranty | 1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty. |
- Description
- Video
- Technical Specifications
- Rotors and Accessories
- Competitive Advantage

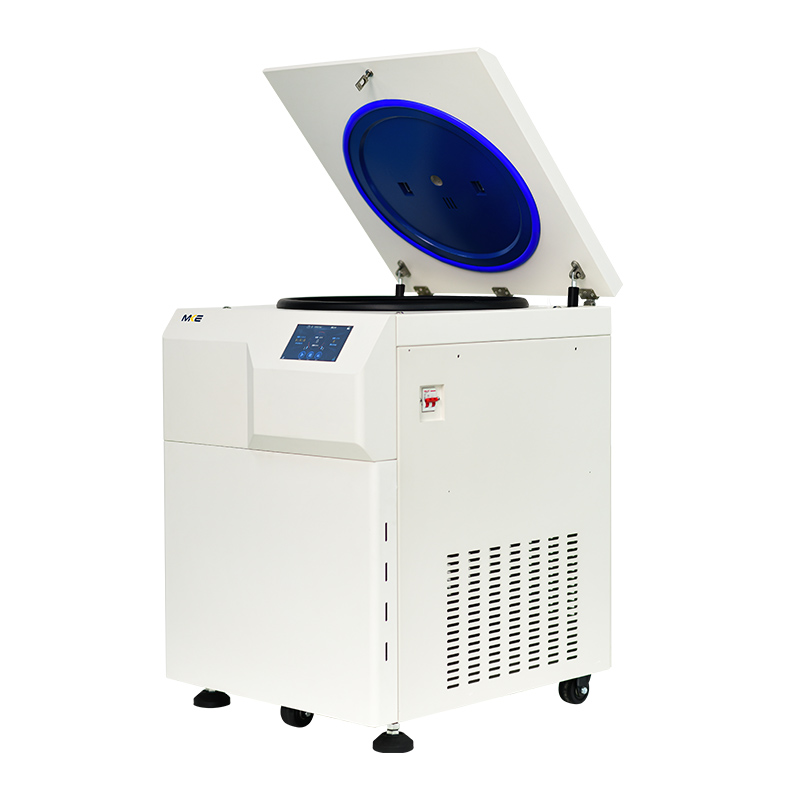

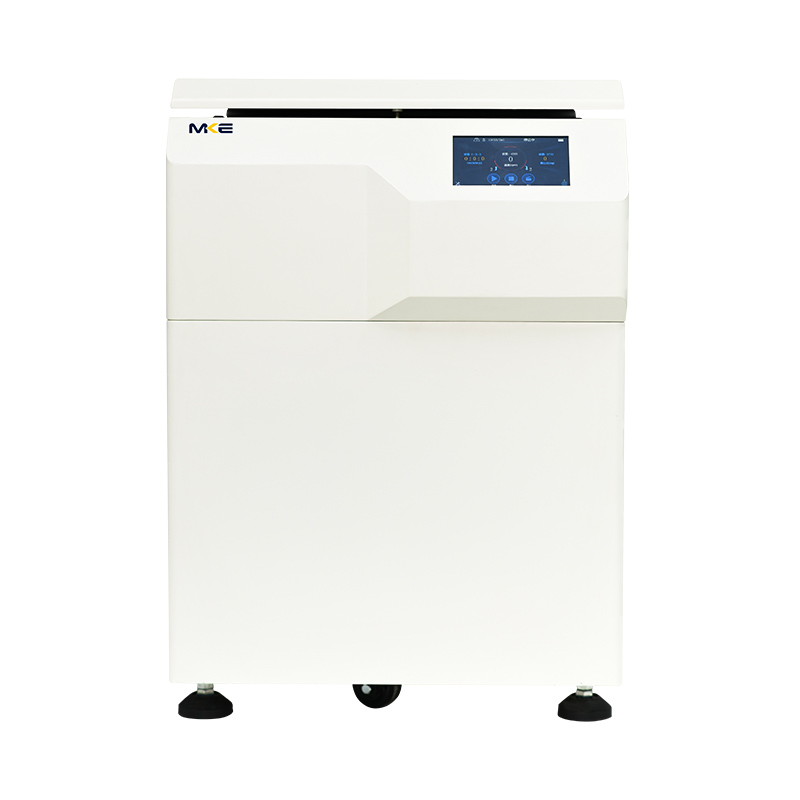

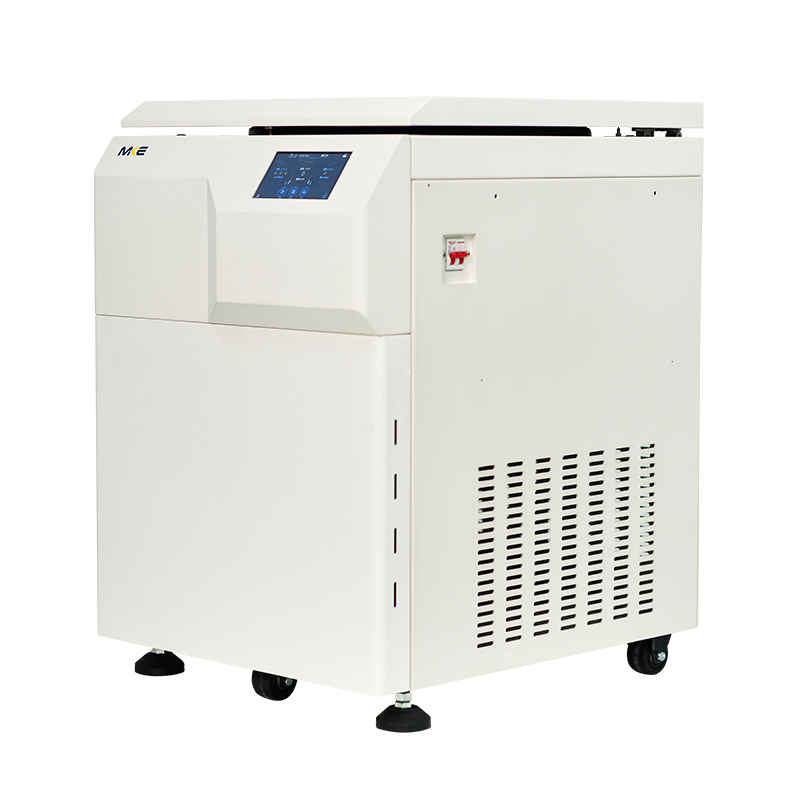

Floor standing centrifuge MK650 which can process the large capacity fixed rotor such as4*1000ml and can also process the swing out rotor ,widely used in the the fields of blood stations, pharmaceutical factories, biochemistry, biological products, etc. It is the ideal instrument for blood separation, protein precipitation and cell collection and conforms to CE security certification, ISO9001 and 13485 quality certification.
Design
● Metal housing, metal lid, and stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.
● Observations window on lid for speed calibration and noise measurement.
● Microprocessor control with frequency conversion A.C. motor drive

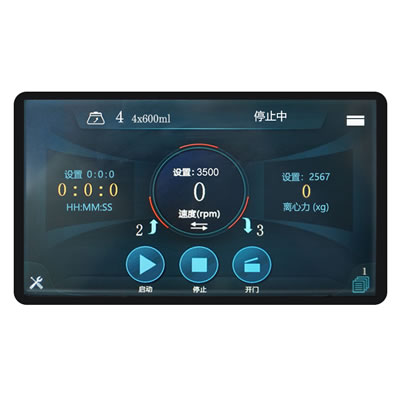

● LCD Display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.
● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.
● Bio-safety:gas-tight rotating head that can be sterilized at high temperature, centrifugual cavity with ultraviolet sterilization function, enter the sterilization state after turning on the machine.
● Multi-layers design for adapter, workable for 100mm and 75mm tube, automatically take off the lid, improve efficiency.
● Bio-safety: gas-tight rotating head that can be sterilized at high temperature, centrifugal cavity with ultraviolet s
User friendly
● Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.
● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.
● Automatic lid-locking and holding during rotor run
● Easily exchangeable rotors, special rotor connector which makes it easy to load and unload rotor.
● Automatic troubleshooting with indication of error code and alarm on the screen.
● “Mute”patent technology. Noise level lower than 55 decibel at the highest rotational speed.
● Automatic rpm/rcf conversion
● Automatic rotor identification system, coded rotor identification prevents the rotor from over speeding.or after PCR test, which improves test effects greatly.
Safety
● Produced according to international safety regulations (e.g. IEC 61010)
● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
● Emergency lid-lock release when power failure(very useful in an unexpected power interruption).
● Gas hinge for lid drop protection.
● Safety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.
| Speed range(rpm) | 0-6000rpm adjustable | Time range | 1s-99minutes adjustable |
| Max Capacity(ml) | 4*1000ml | Speed accuracy | ±10r/min |
| RCF range (xg) | 0-4588xg adjustable | ACC/DEC | 1-10 rates |
| Noise(dBA) | ＜55dB(A) | Net weight(without rotor) | 135KGS |
| Power supply | AC220V,50HZ,10A, 1200W | Dimension(mm) | 775x620x900mm(LxWxH) |

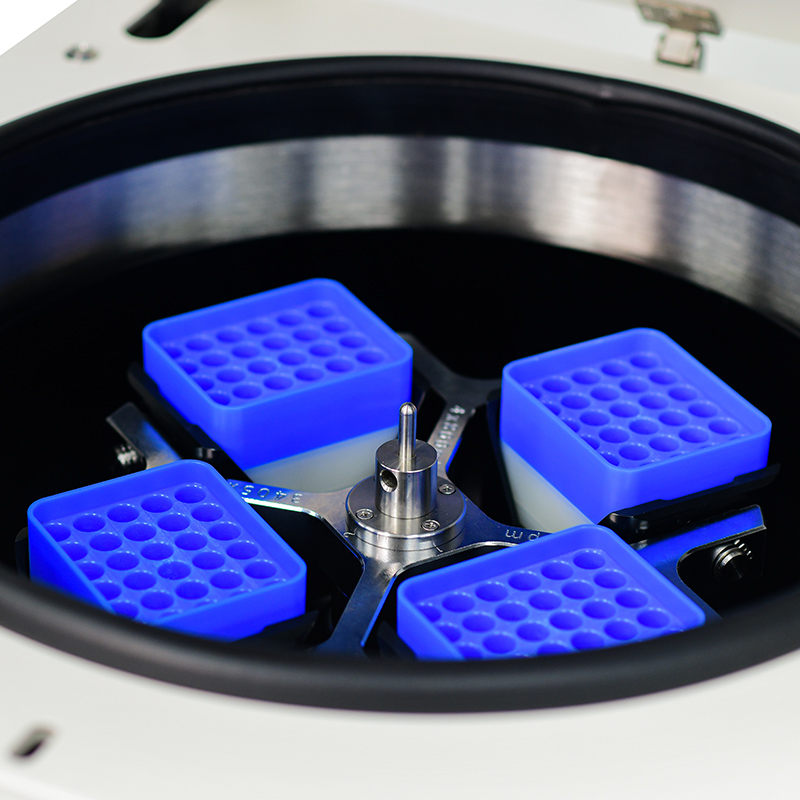

| No. | Item | Max. capacity | Max.speed | Max.RCF | Note |
NO.1
| Angle rotor | 12x15/10/5ml | 6000r/min | 4588xg | PP/PC tube |
| Adapter | 12x2ml | PP/PC tube | |||
NO.2
| Swing bucket | 4x600ml | 4000r/min | 3354xg | Square cup with wind cover |
| Adapter | 4x25x5/2ml | Blood collection tubes | |||
| Adapter | 4x12x15/10ml | PP/PC tube | |||
| Adapter | 4x5x50ml | PP/PC tube | |||
| Adapter | 4x4x100ml | PP/PC tube | |||
N0.3
| Swing bucket | 4×800ml | 4000r/min | 3443xg | Square cup with wind cover |
| Adapter | 4×30×5/2ml | Blood collection tubes | |||
| Adapter | 4×12×15/10ml | PP/PC tube | |||
| Adapter | 4×6×50ml | PP/PC tube | |||
| Adapter | 4×4×100ml | PP/PC tube | |||
NO.4
| Swing bucket | 6×600ml | 4000r/min | 3400xg | Square cup with wind cover |
| Adapter | 6×25×5/2ml | Blood collection tubes | |||
| Adapter | 6×12×15/10ml | PP/PC tube | |||
| Adapter | 6×5×50ml | PP/PC tube | |||
| Adapter | 6×4×100ml | PP/PC tube | |||
NO.5
| Swing bucket | 4×1000ml | 4000r/min | 3578xg | Oval cup with wind cover |
| Adapter | 4×42×5/2ml | Blood collection tubes | |||
| Adapter | 4×18×15/10ml | PP/PC tube | |||
| Adapter | 4×7×50ml | PP/PC tube | |||
| Adapter | 4×4×100ml | PP/PC tube | |||
NO.6
| Swing bucket | 4×750ml | 4000r/min | 3443xg | Air tightness cup with wind cover |
| Adapter | 4×28×5/2ml | Blood collection tubes | |||
| Adapter | 4×9×15/10ml | PP/PC tube | |||
| Adapter | 4×5×50ml | PP/PC tube | |||
| Adapter | 4×3×100ml | PP/PC tube | |||
 | |||||
1.Professional centrifuge manufacturer, competitive price.
2.ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.
3.Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.
4.We can also offer customized solutions for clients' special requirements.
5.Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
