Low Speed Centrifuge Blood Bank Refrigerated Use with Large 4L Capacity High Precision

Applications:Industrial labs,Hospitals, Veterinary Clinics, Food Labs, Universities & Colleges, Pharmaceutical Labs, Cell Culture Labs
Max.Speed0-8000rpm adjustable
Max.RCF11620xg
Max.Capacity4×1000ml
Temperature control range-20℃~+40℃
Matched RotorsFixed angle rotors + Swing out rotor
DisplayLCD
Model Number:FR8(old model:GR-800C )
Certification:CE, ISO13485,ISO9001, SFDA
Warranty1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty.
  • Description
  • Technical Specifications
  • Rotors and Accessories
  • Competitive Advantage

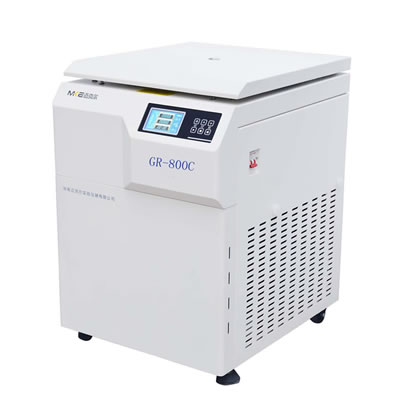

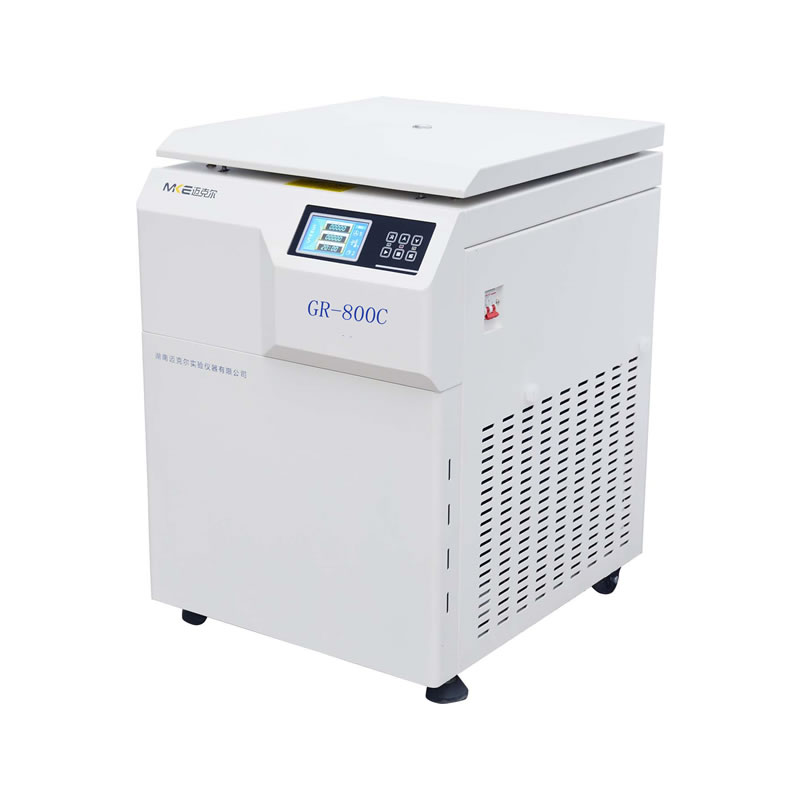

Floor Standing Refrigerated Centrifuge FR8(old model: GR-800C ) can process a volume of up to 4 liters, with Swing bucket 4x1000ml and Fixed angle rotor 4x500ml, offering a complete solution in separation of samples which are to be centrifuged for blood bank centre, research labs, clinics, bio-technology, industry and hospitals.

Design

● Autoclave-able steel body and stainless steel chamber with super hard aluminum alloy rotor for good sealing and sterilization resistance.

● Microprocessor control , high power AC frequency conversion motor direct drive, high accuracy and low noise, with long life span.

● Observations window on lid for speed calibration and noise measurement.

● Touch color large screen display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.

● Large capacity rotor body with windshield, reduce rotor resistance, extend the service life of the motor.

● The rotor is made of super hard aluminium alloy by special technology, with good sealing performance and unlimited high temperature and high pressure sterilization resistance.

● Double layers sealing ring of silica gel for the centrifuge lid and the instrument to keep long good sealing.

● 3 levels damping for anti vibration to achieve the best centrifugal effect. Adapters of 0.5-500 ml are available for different experiments.

GR-800C

User friendly

● CFC-free cooling system with high efficiency environmental protection refrigeration system and dual circuit control for precise temperature control

● Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.

● Provides the 10-speed acceleration and deceleration curves, to effectively avoid secondary sedimentation, with better centrifugation effect.

● Automatic lid-locking and holding during rotor run

● Easily exchangeable rotors, special rotor connector which makes it easy to load and unload rotor.

● Self-diagnostic system with high-strength chamber-coating and protective

● "Mute" patented technology, the highest speed operation is less than 58 decibels.

● Automatic rpm/rcf conversion

● Automatic rotor identification system, coded rotor identification prevents the rotor from over speeding.

GR-800C

Safety

● Produced according to international safety regulations (e.g. IEC 61010)

● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.

● Automatic rotor locking function, no need to tighten the rotor head, automatic rotor identification system to prevent the wrong rotor on the run, effective protection of personnel safety and stability of the centrifuge.

● Emergency lid-lock release when power failure(very useful in an unexpected power interruption).

● Gas hinge for lid drop protection.

● Equipped with door cover protection, over speed, over current and advanced electronic unbalance detection system and other safety design, can be real-time monitoring of the centrifuge process to ensure the safe operation of the instrument.

GR-800C
Speed range(rpm)0-8000rpm adjustableSpeed accuracy±20r/min
Max Capacity(ml)4x1000mlTemperature range(℃)-20℃~+40℃ adjustable
RCF range (xg)0-11620xg adjustableTemperature accuracy±1℃
Time range1-99min59s adjustableAcceleration/Deceleration rates1-- 10
Noise(dBA)≦60dB(A)Daily-use program30
Dimension690×590×835(L×W×H)Net weight(without rotor)190KGS
DisplayTouch LCD screenPower supplyAC220V,50HZ,16A,1500W
Control&drive microprocessorHigh precision and low noise AC frequency conversion motor direct drive                                        Microprocessor control
No.RotorCapacityMax.speedMax.RCFNote

NO.1

111

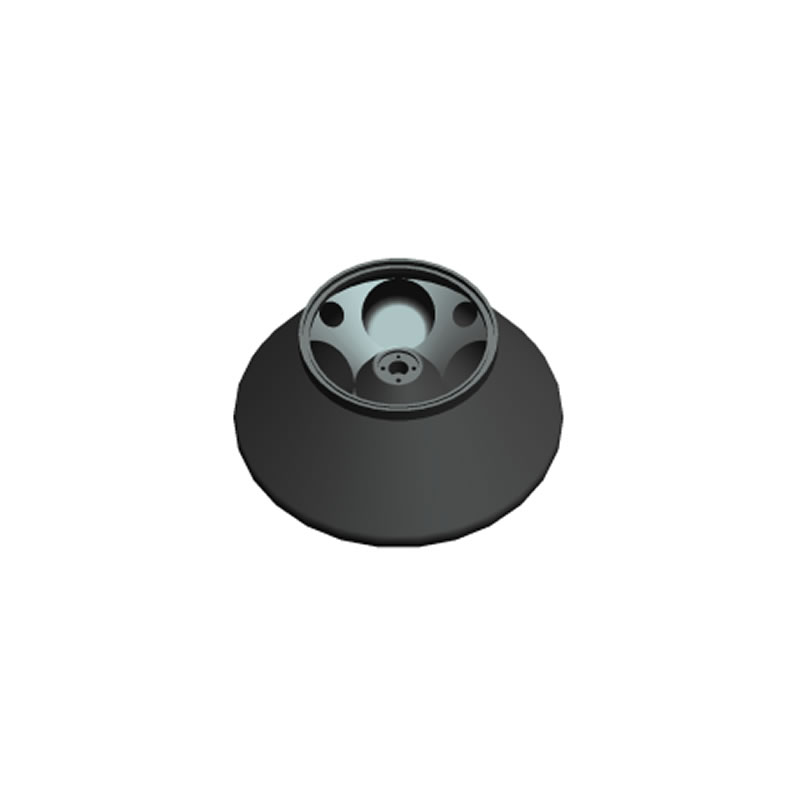

Angle rotor4×500ml8000r/min11620xgPP/PC tube
Adapter4×100mlPP/PC tube
Adapter4×3×50mlPP/PC tube
Adapter4×8×15/10mlPP/PC tube

NO.2

222

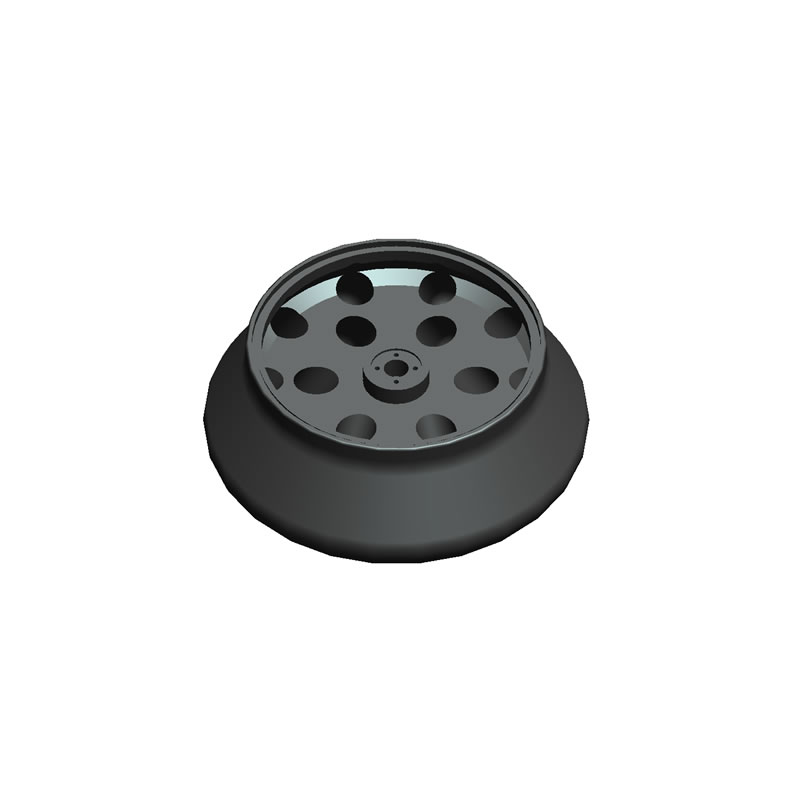

Angle rotor16×50ml8000r/min9300xgPP/PC tube
Adapter16×15mlPP/PC tube
Adapter16×10mlPP/PC tube
Adapter16×3×1.5mlPP/PC tube

NO.3

333

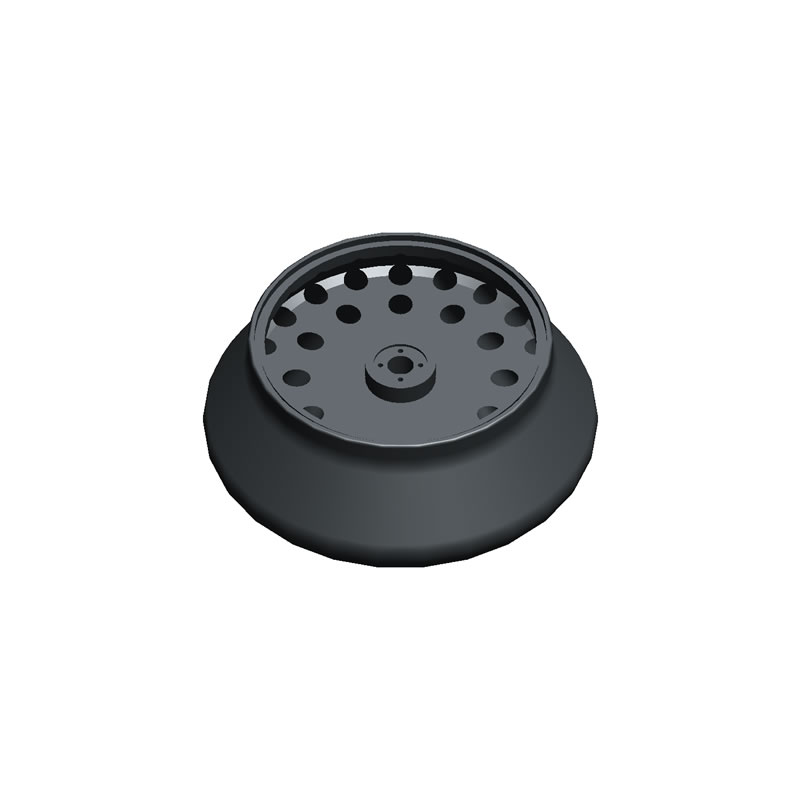

Angle rotor32×15ml7000r/min7300xgPP/PC tube

NO.4

555

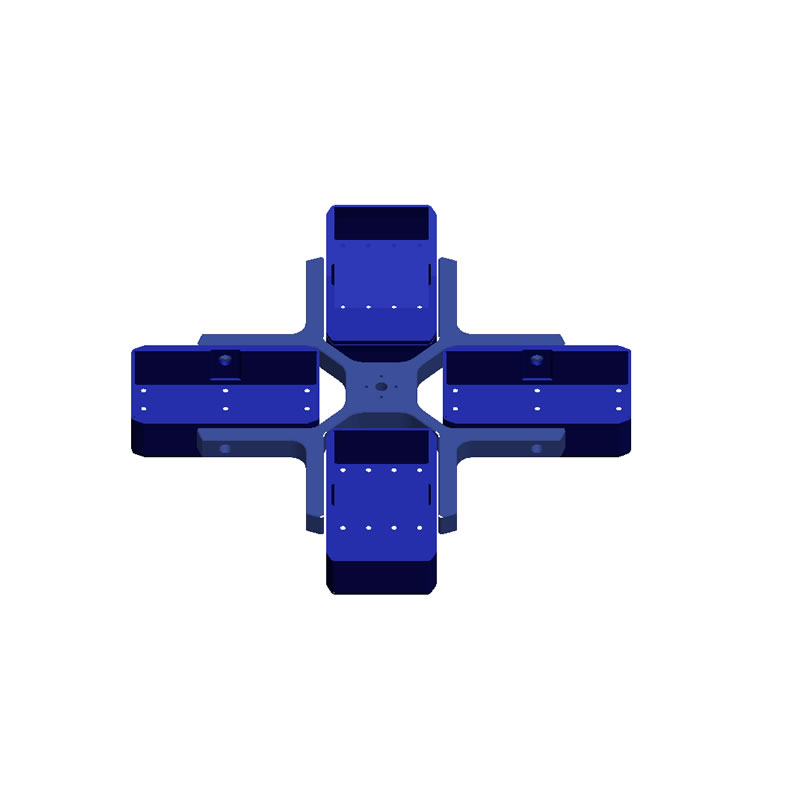

Swing bucket4×1000ml4000r/min3578xgPP/PC tube
Adapter4×26×5/2mlPP/PC tube
Adapter4×13×15/10mlPP/PC tube
Adapter4×5×50mlPP/PC tube
Adapter4×3×100mlPP/PC tube

NO.5

444

Microplate rotor4×2×96well plate4200r/min2859xg
Adapter4×32×1.5mlPP/PC tube

1.Professional centrifuge manufacturer, competitive price.

2.ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.

3.Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.

4.We can also offer customized solutions for clients' special requirements.

5.Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
