Low Speed Laboratory Centrifuge Machine 6000Rpm Tabletop
| Applications: | Hospitals,Veterinary clinics,Food labs,Universities & colleges, Pharmaceutical labs, Cell culture labs,Infant stations |
| Max.Speed | 6000rpm |
| Max.RCF | 4588xg |
| Max.Capacity | 24*15ml fixed angle rotor |
| Matched Rotors | Fixed angle rotors |
| Display | LCD |
| Model Number: | KC-60X |
| Certification: | CE, ISO13485,ISO9001, SFDA |
| Warranty | 1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty. |
- Description
- Technical Specifications
- Rotors and Accessories
- Competitive Advantage

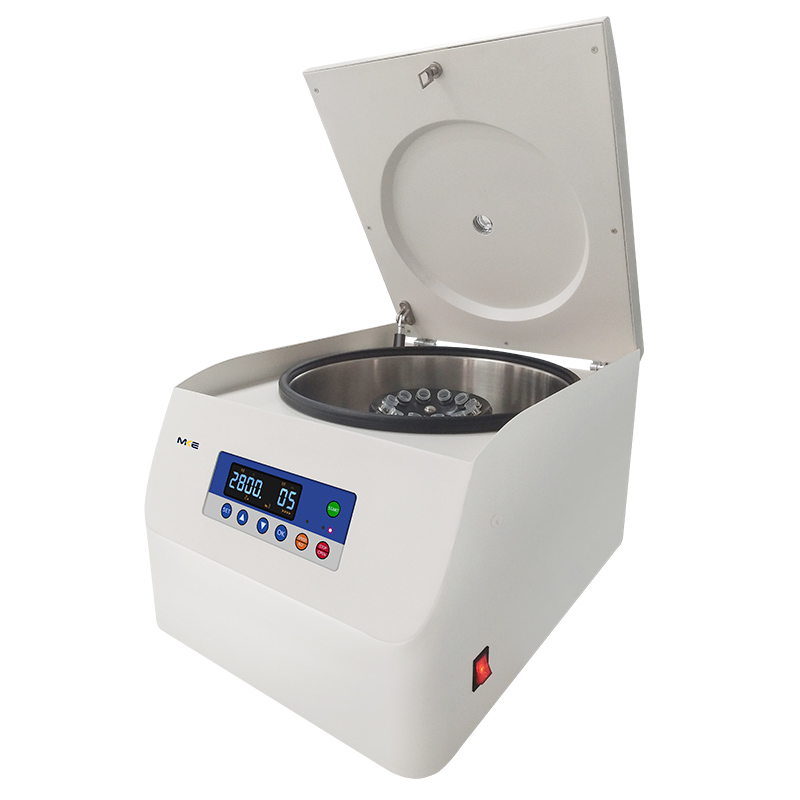

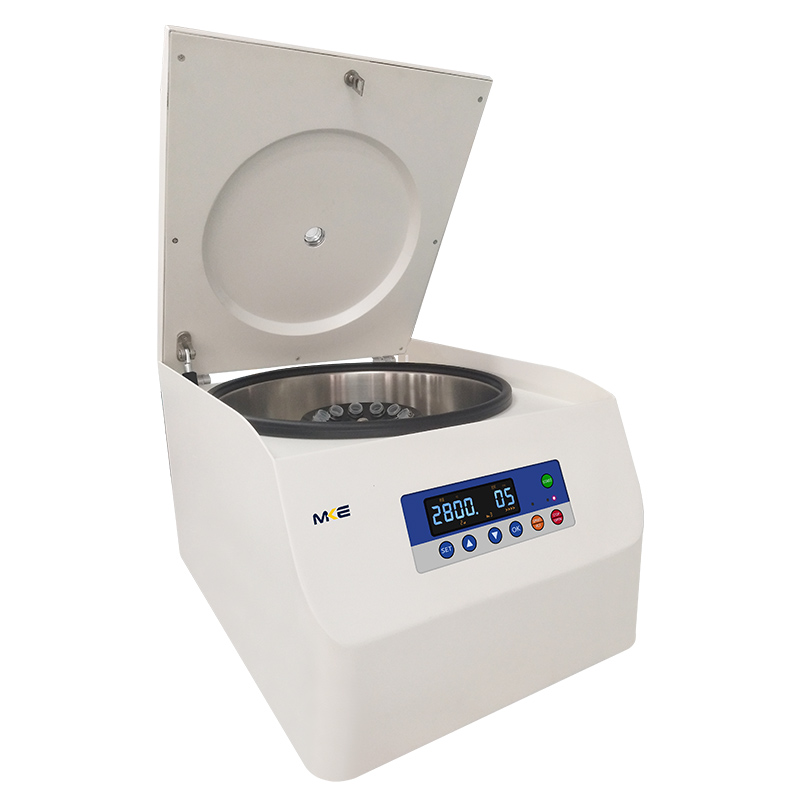

The benchtop centrifuge KC-60X combines advanced technology with high capacity.
It is available with numerous fixed-angle rotors, along with various adapters. The extensive range of accessories can accommodate tubes and flasks from 2 ml to 15 ml.
The maximum RCF of more than 4387 xg is suitable for many application areas in clinical diagnostics, veterinary medicine, pharmaceutics, environmental analysis and industrial production, as well as universities and research facilities.
Design
● Metal housing, metal lid, and 304# stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.
● Observations window on lid for speed calibration and noise measurement.
● Microprocessor control with frequency conversion A.C. motor drive
● LCD Display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.
● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.
User friendly
● Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.
● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.
● Automatic lid-locking and holding during rotor run
● Easily exchangeable rotors
● Automatic troubleshooting with indication of error code and alarm on the screen.
● “Mute”patent technology. Noise level lower than 55 decibel at the highest rotational speed.
Safety
● Produced according to international safety regulations (e.g. IEC 61010)
● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
● Emergency lid-lock release when power failure.
● Gas hinge for lid drop protection.
● Safety protections are made for the over speed etc to ensure the man machine safety.
| Speed range(rpm) | 0-6000rpm adjustable | Speed accuracy | ±10rpm |
| Max Capacity(ml) | 24*15ml | RCF range (xg) | 0-4588xg adjustable |
| Display | LCD | Time range | 1s-99minutes |
| Noise(dBA) | ＜55dB(A) | Acceleration /Deceleration rates | 0-- 9 |
| Dimension(mm) | 420x320x270mm | Motor | Frequency Converter motor |
| Net weight(without rotor) | 18KGS | Power supply | AC220V,50HZ,10A,200W |
| No. | Item | Capacity | Max. rotational speed | Max. RCF | Note |
NO.1 | Angle rotor | 12×5/10/15ml | 6000r/min | 4588xg | PC/PP tube |
| Adapter | 12×2ml | Vacuum blood collection tubes | |||
NO.2 | Angle rotor | 6×50ml | 5000r/min | 3354xg | PC/PP tube bottom |
| Adapter | 6×15/10ml | PC/PP tube | |||
| Adapter | 6×5ml | Vacuum blood collection tubes | |||
NO.3 | Angle rotor | 18×10/5ml | 4500r/min | 2717xg | PC/PP tube/Vacuum blood collection tubes |
| Adapter | 18×2ml | Vacuum blood collection tubes | |||
NO.4 | Angle rotor | 24×15/10/5ml | 4000r/min | 2160xg | PC/PP tube/Vacuum blood collection tubes |
| Adapter | 24×2ml | Vacuum blood collection tubes | |||
 | |||||
