Benchtop Refrigerated Centrifuge Low Speed Large Capcity 3000Ml Biosafe Lab Centrifuge

Applications:Hospitals, Veterinary Clinics, Food Labs, Universities & Colleges, Pharmaceutical Labs, Cell Culture Labs
Max.Speed6000rpm
Max.RCF6080xg
Max.Capacity4*750ml
Matched RotorsFixed angle rotor, swing bucket with chamber wind cover, air tightness bucket with wind cover
DisplayLCD
Model Number:TBS6AR-L(old model:MK540R)
Certification:CE, ISO13485,ISO9001, SFDA
Warranty1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty.
  • Description
  • Technical Specifications
  • Rotors and Accessories
  • Competitive Advantage

Low speed refrigerated centrifuge TBSA6-L is typically used in scientific research and medical laboratories to separate substances of different densities in a sample. The refrigeration feature allows for temperature control during the separation process, which is important for maintaining the integrity of certain samples.

Design

● Metal housing, metal lid, and stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.

● Observations window on lid for speed calibration and noise measurement.

● Microprocessor control with frequency conversion A.C. motor drive

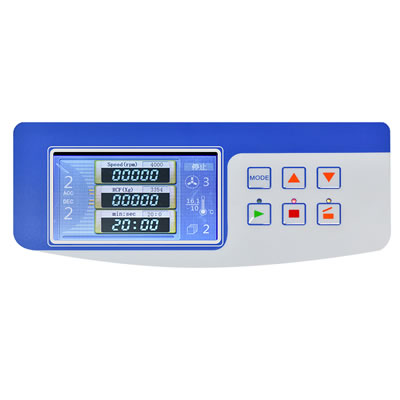

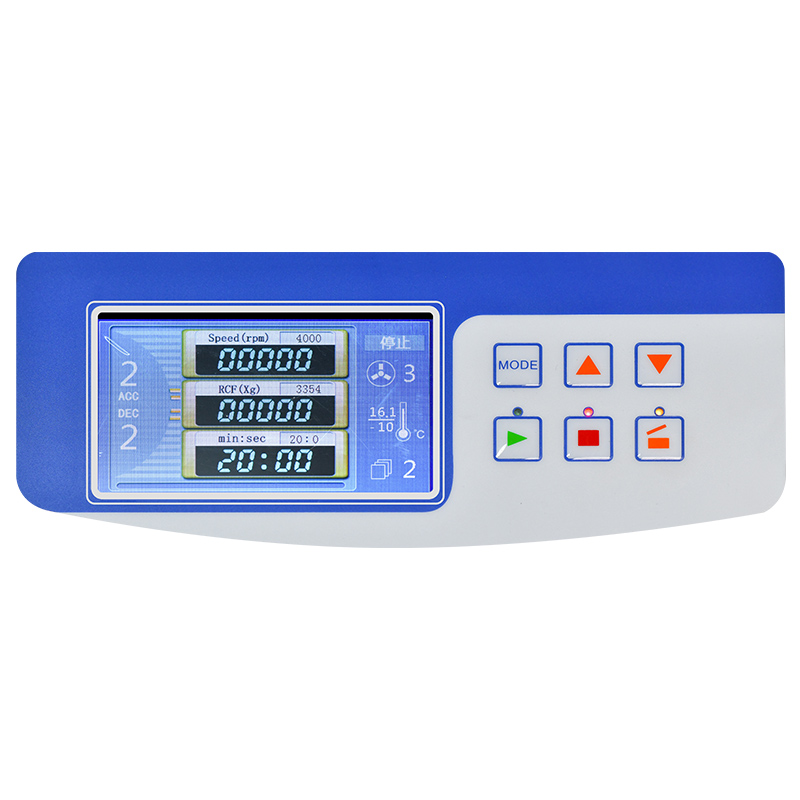

● LCD Display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.

● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.

● Bio-safety:gas-tight rotating head that can be sterilized at high temperature, centrifugual cavity with ultraviolet sterilization function, enter the sterilization state after turning on the machine.

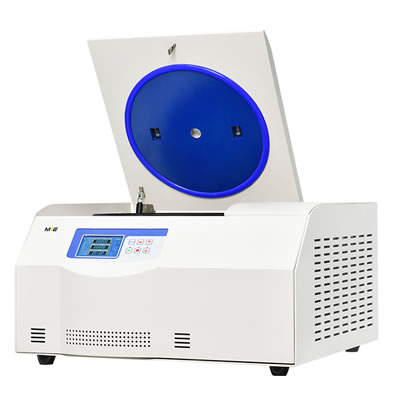

TBS6AR-L Low-Speed Refrigerated Centrifuge

User friendly

● Produced according to international safety regulations (e.g. IEC 61010)

● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.

● Emergency lid-lock release when power failure(very useful in an unexpected power interruption).

● Gas hinge for lid drop protection.

● Safety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.“Mute”patent technology. Noise level lower than 58 decibel at the highest rotational speed.

● Automatic rpm/rcf conversion.

● Automatic rotor identification system, coded rotor identification prevents the rotor from over speeding.

TBS6AR-L Low-Speed Refrigerated Centrifuge

Safety

● Produced according to international safety regulations (e.g. IEC 61010)

● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.

● Emergency lid-lock release when power failure.

● Gas hinge for lid drop protection.

● Safety protections are made for the over speed etc to ensure the man machine safety.

TBS6AR-L Low-Speed Refrigerated Centrifuge
Speed range(rpm)0-6000rpm adjustableTime range1-99minutes 59s adjustable
Max Capacity(ml)4*750mlSpeed accuracy±10r/min
RCF range (xg)0-6080xg adjustableACC/DEC1-10 rates
Temperature control range-20℃~+40℃Temperature control accuracy±1℃
Noise(dBA)≦58dB(A)Net weight(without rotor)100KGS
Power supplyAC220V,50HZ,10A, 1600WDimension(mm)670x740x370mm(LxWxH)

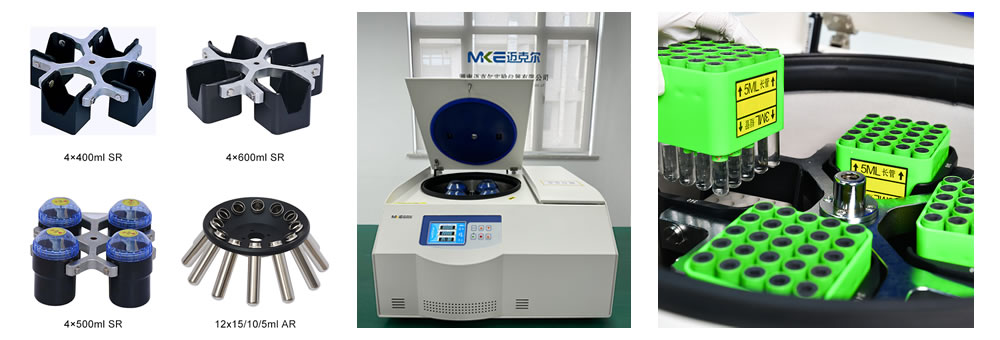

No.ItemMax. capacityMax.speedMax.RCFNote

NO.1

2

Angle rotor12x15/10/5ml6000r/min6080xgPP/PC tube
Adapter12x2mlPP/PC tube

NO.2

116

Swing bucket4x400ml4000r/min3050xgSquare cup
Adapter4x16x5/2mlVacuum blood collection tubes
Adapter4x9x15/10mlPP/PC tube
Adapter4x4x50mlPP/PC tube
Adapter4x100mlPP/PC tube

NO.3

115

Swing bucket4x600ml4000r/min3354xgSquare cup
Adapter4x25x5/2mlVacuum blood collection tubes
Adapter4x12x15/10mlPP/PC tube
Adapter4x5x50mlPP/PC tube
Adapter4x4x100mlPP/PC tube

NO.4

112

Swing bucket4×500ml4000r/min3354xgAir tightness round cup
Adapter4×24x5/2mlPP/PC tube
Adapter4×13x15/10mlPP/PC tube
Adapter4×4x50mlPP/PC tube
Adapter4×2x100mlPP/PC tube
未命名-3

1.Professional centrifuge manufacturer, competitive price.

2.ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.

3.Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.

4.We can also offer customized solutions for clients' special requirements.

5.Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
