HOT PRODUCTS

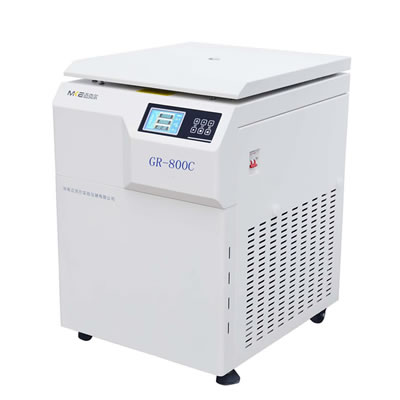

Large Capacity Refrigerated Centrifuge Low Speed with Swing Rotor
| Applications: | Industrial labs,Hospitals, Veterinary Clinics, Food Labs, Universities & Colleges, Pharmaceutical Labs, Cell Culture Labs |
| Max.Speed | 0-7000rpm adjustable |
| Max.RCF | 8897xg |
| Max.Capacity | 4×1200ml |
| Temperature control range | -20℃～+40℃ |
| Matched Rotors | Fixed angle rotors + Swing out rotor |
| Display | LCD |
| Model Number: | GR-800C |
| Certification: | CE, ISO13485,ISO9001, SFDA |
| Warranty | 1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty. |
- Description
- Technical Specifications
- Rotors and Accessories
- Competitive Advantage
Floor Standing Refrigerated Centrifuge GR-800C can process a volume of up to 4 liters, with Swing bucket 4x1200ml and Fixed angle rotor 4x500ml, offering a complete solution in separation of samples which are to be centrifuged for blood bank centre, research labs, clinics, bio-technology, industry and hospitals.
Design
● Autoclave-able steel body and stainless steel chamber with super hard aluminum alloy rotor for good sealing and sterilization resistance.
● Microprocessor control , high power AC frequency conversion motor direct drive, high accuracy and low noise, with long life span.
● Observations window on lid for speed calibration and noise measurement.
● Touch color large screen display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.
● Large capacity rotor body with windshield, reduce rotor resistance, extend the service life of the motor.
● The rotor is made of super hard aluminium alloy by special technology, with good sealing performance and unlimited high temperature and high pressure sterilization resistance.
● Double layers sealing ring of silica gel for the centrifuge lid and the instrument to keep long good sealing.
● 3 levels damping for anti vibration to achieve the best centrifugal effect. Adapters of 0.5-500 ml are available for different experiments.
User friendly
● CFC-free cooling system with high efficiency environmental protection refrigeration system and dual circuit control for precise temperature control
● Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.
● Provides the 10-speed acceleration and deceleration curves, to effectively avoid secondary sedimentation, with better centrifugation effect.
● Automatic lid-locking and holding during rotor run
● Easily exchangeable rotors, special rotor connector which makes it easy to load and unload rotor.
● Self-diagnostic system with high-strength chamber-coating and protective
● "Mute" patented technology, the highest speed operation is less than 58 decibels.
● Automatic rpm/rcf conversion
● Automatic rotor identification system, coded rotor identification prevents the rotor from over speeding.
Safety
● Produced according to international safety regulations (e.g. IEC 61010)
● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
● Automatic rotor locking function, no need to tighten the rotor head, automatic rotor identification system to prevent the wrong rotor on the run, effective protection of personnel safety and stability of the centrifuge.
● Emergency lid-lock release when power failure(very useful in an unexpected power interruption).
● Gas hinge for lid drop protection.
● Equipped with door cover protection, over speed, over current and advanced electronic unbalance detection system and other safety design, can be real-time monitoring of the centrifuge process to ensure the safe operation of the instrument.
| Speed range(rpm) | 0-7000rpm adjustable | Speed accuracy | ±20r/min |
| Max Capacity(ml) | 4x1200ml | Temperature range(℃) | -20℃~+40℃ adjustable |
| RCF range (xg) | 0-8897xg adjustable | Temperature accuracy | ±1℃ |
| Time range | 1-99min adjustable | Acceleration/Deceleration rates | 1-- 10 |
| Noise(dBA) | ＜60dB(A) | Daily-use program | 30 |
| Dimension | 790×670×900(L×W×H) | Net weight(without rotor) | 190KGS |
| Display | Touch LCD screen | Power supply | AC220V,50HZ,16A,2200W |
| Control&drive microprocessor | High precision and low noise AC frequency conversion motor direct drive Microprocessor control | ||
| No. | Rotor | Capacity | Max.speed | Max.RCF | Note |
NO.1
| Angle rotor | 4×500ml | 7000r/min | 8897xg | PP/PC tube |
| Adapter | 4×100ml | PP/PC tube | |||
| Adapter | 4×3×50ml | PP/PC tube | |||
| Adapter | 4×8×15/10ml | PP/PC tube | |||
NO.2
| Angle rotor | 18×50ml | 7000r/min | 7489xg | PP/PC tube |
| Adapter | 18×15ml | PP/PC tube | |||
| Adapter | 18×10ml | PP/PC tube | |||
| Adapter | 18×1.5ml | PP/PC tube | |||
NO.3
| Swing bucket | 4×1000ml | 4500r/min | 5025xg | PP/PC tube |
| Adapter | 4×26×5/2ml | PP/PC tube | |||
| Adapter | 4×15×15/10ml | PP/PC tube | |||
| Adapter | 4×5×50ml | PP/PC tube | |||
| Adapter | 4×3×100ml | PP/PC tube | |||
| NO.3 | Swing bucket | 4×1200ml | 4500r/min | 5127xg | Blood bag liner cup |
| Adapter | 4×500ml | Blood bag liner cup | |||
| Adapter | 4×2×200ml | Blood bag liner cup | |||
| NO.4 | Swing bucket | 4×1000ml | 4000r/min | 3667xg | PP/PC tube |
| Adapter | 4×49×5ml | PP/PC tube | |||
| Adapter | 4×24×15/10ml | PP/PC tube | |||
| Adapter | 4×10×50ml | PP/PC tube | |||
| Adapter | 4×6×100ml | PP/PC tube |
1.Professional centrifuge manufacturer, competitive price.
2.ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.
3.Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.
4.We can also offer customized solutions for clients' special requirements.
5.Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
