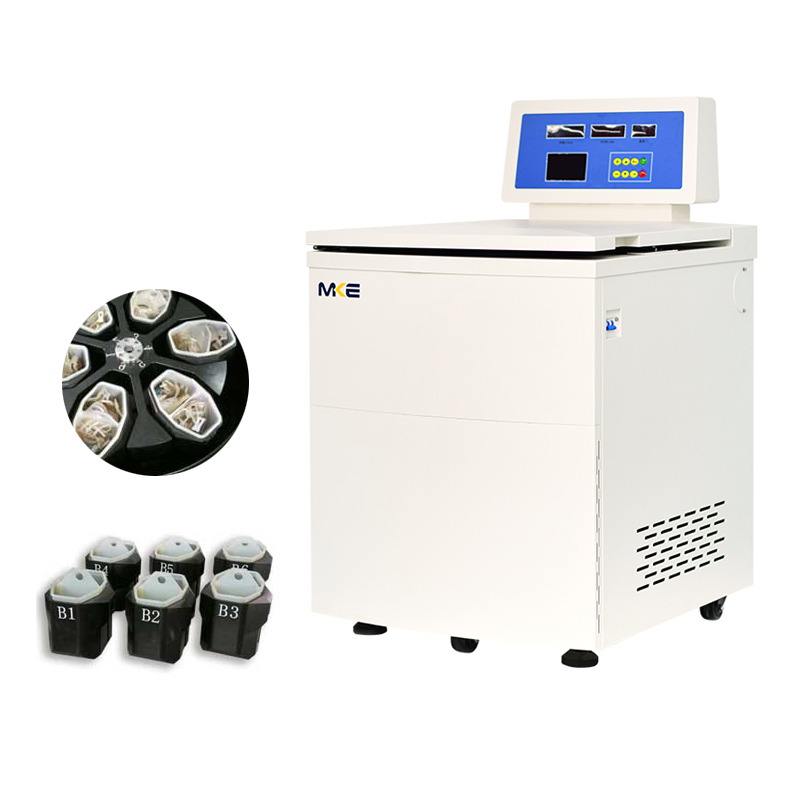

Refrigerated Laboratory Centrifuge 500ml Blood Bags Centrifuge 6x1000ml Bottle

Applications:Blood banks, transfusion facilities,Industrial labs,Hospitals, Veterinary Clinics, Food Labs, Universities & Colleges, Pharmaceutical Labs, Cell Culture Labs
Max.Speed0-6000rpm adjustable
Max.RCF6880×g
Max.Capacity6x1200ml
Temperature control range-20℃~+40℃
Matched RotorsFixed angle rotors + Swing out rotor
DisplayLCD
Model Number:FR6-B6 (old model:DL-6MB)
Certification:CE, ISO13485,ISO9001, SFDA
Warranty1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty.
  • Description
  • Technical Specifications
  • Rotors and Accessories

Compact floor standing refrigerated centrifuge FR6-B6 (old model:DL-6MB) is specially designed for universal use in blood banks, clinical laboratories, serology investigations, molecular biology, serum separation, pharmaceutical applications, where repeatability, precision and reliability of speed, time, temperature, acceleration and deceleration are significant factors in obtaining perfect separations of the distinct blood fractions.

Design

● High-quality steel structure with a built-in blast-proof steel chamber, 304# stainless steel chamber are autoclave-able , resistant detergents and disinfection liquids.

● Equipped with an high-efficiency compressor, dual circuits for cooling and heating, and can achieve rapid temperature changes to meet requirements for platelet separation.

● Observations window on lid for speed calibration and noise measurement.

● Microprocessor control , AC variable frequency motor drive.

● Touch LCD screen,which allows the operator to control the configuration parameters easily.The speed, timer, RCF, temperature, rotors , program(Memory) , Acceleration & Deceleration, and Error code information or alarm on the screen.

● Large capacity rotor body with windshield, reduce rotor resistance, extend the service life of the motor.

● The door cover and body are equipped with double-layer silicone seal ring

● Swing-out rotor head, buckets and adapters made of high-density material.

● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.

● Horizontal rotor optimized for blood banks, capable of simultaneously separating 8x450ml triple or quadruple blood bags.

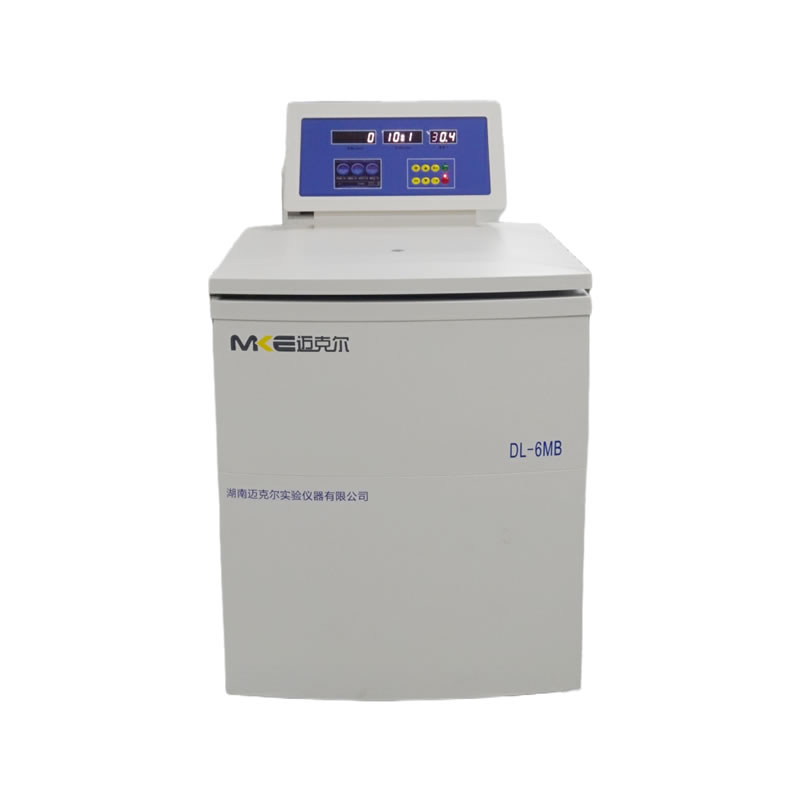

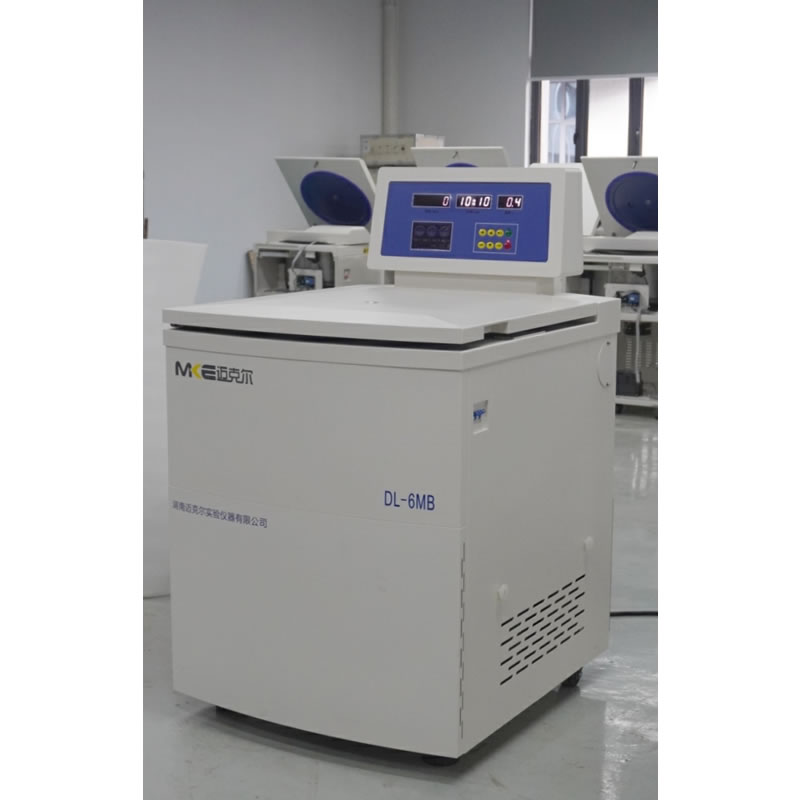

Refrigerated Laboratory Centrifuge DL-6MB

User friendly

● CFC-free compressor with pre-cooling function, double-cycle refrigeration, heating and cooling double-loop control, ±1℃ high temperature accuracy. Temperature range from -20°C to 40°C ,temperature sensor inside the chamber.

● Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.

● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.

● Automatic lid-locking and holding during rotor run

● Easily exchangeable rotors, special rotor connector which makes it easy to load and unload rotor.

● Automatic troubleshooting with indication of error code and alarm on the screen.

● “Mute”patent technology. Noise level lower than 58 decibel at the highest rotational speed.

● Automatic rpm/rcf conversion

● Automatic rotor identification system, coded rotor identification prevents the rotor from over speeding.

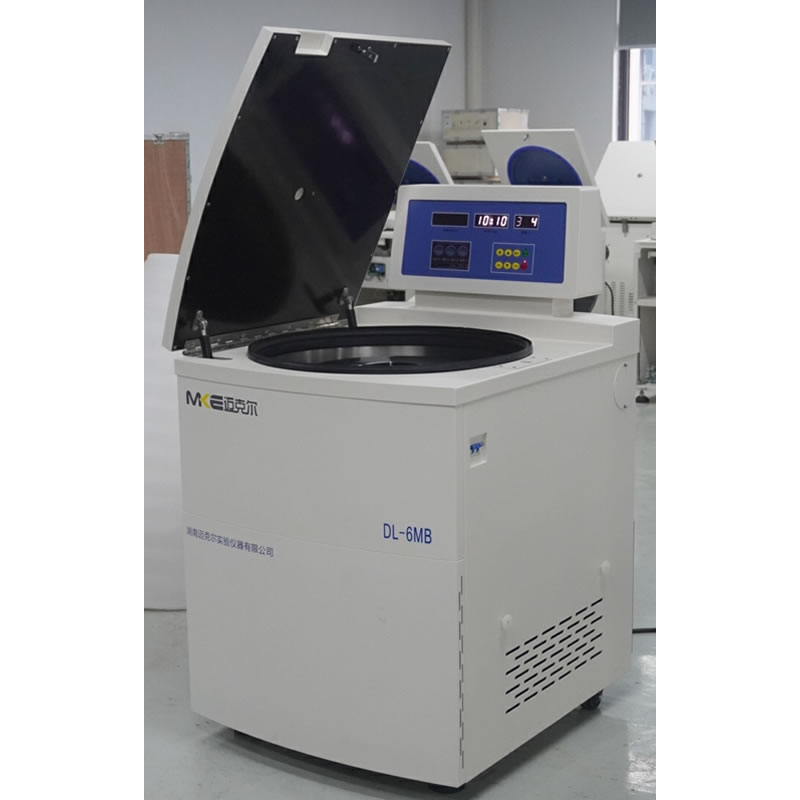

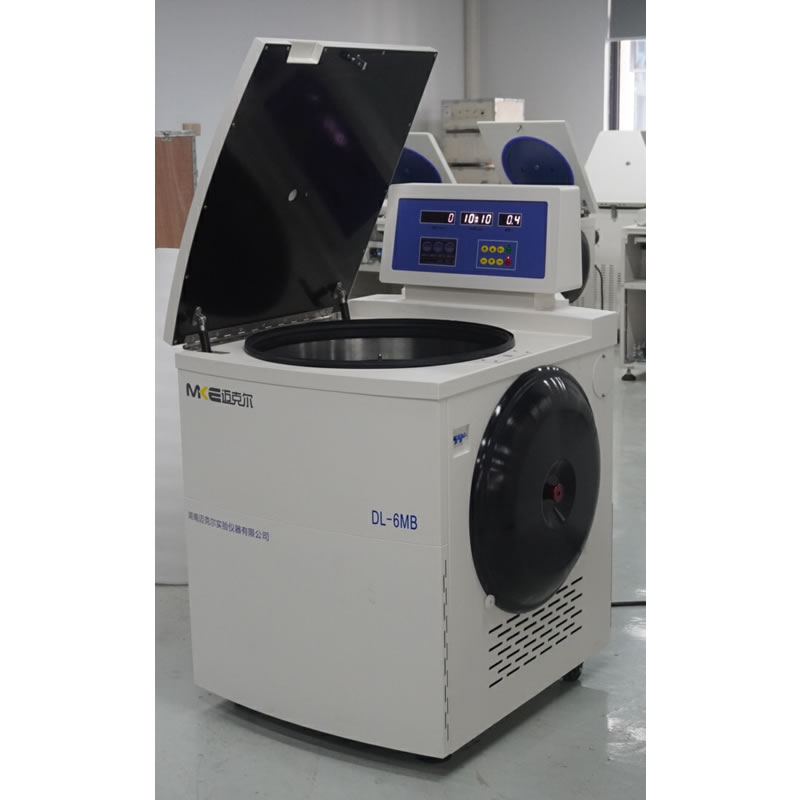

Refrigerated Laboratory Centrifuge DL-6MB

Safety

● Safety and Standards Certification: CE

● Product Safety: EN61010-1 and EN 61010-2-020 ,

● Electromagnetic Compatibility: EN 61326-1

● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.

● Emergency lid-lock release when power failure(very useful in an unexpected power interruption).

● Gas hinge for lid drop protection.

● Safety protections are made for the over speed, over heating(motor, chamber), over-temperature, unbalance, electronic door lock and other safety protection to ensure the safety of man and machine.

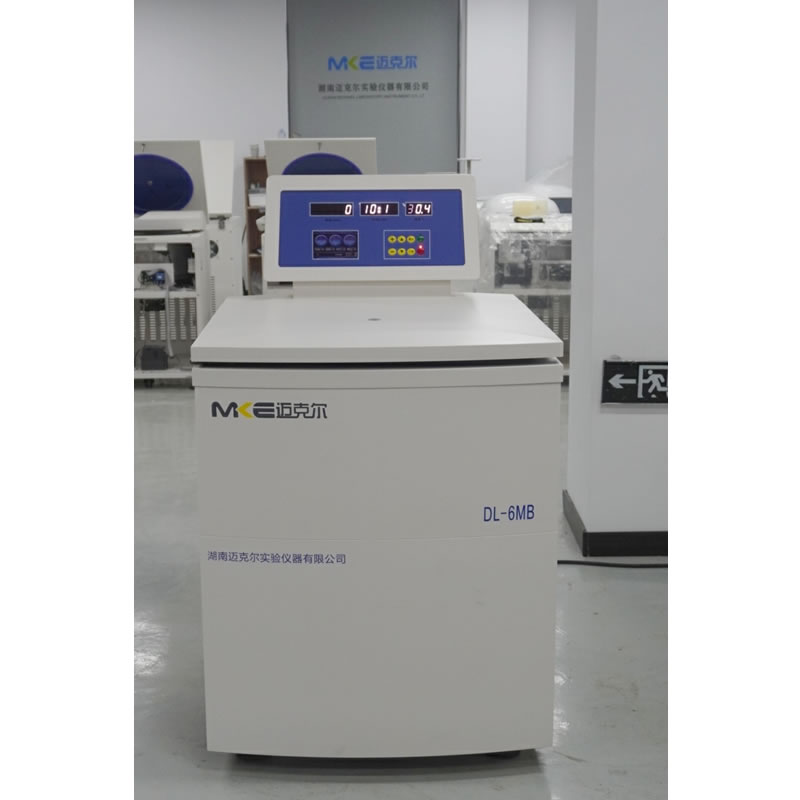

Refrigerated Laboratory Centrifuge DL-6MB
Max. speed6000rpm adjustableMax.rcf6880×g
Speed accuracy±20r/minMax. capacity6x1200ml
Timer range0~99h 59min adjustableDaily-use program30
DisplayLCDAcceleration/ Deceleration rates10/10
Temp.range-20℃~+40℃ adjustableTemp accuracy±1℃
Drive SystemAC variable frequency motor driveNoise<58db
Power supplyAC220V, 50Hz, 30A, 2/1.5kwNet Weight280kg
Dimension840×730×1220mm(L×W×H)
No.RotorCapacityMax.speedMax. RCFNote

NO.1

3



Fixed Angle Rotor6×500ml6000r/min6880xgPP/PC tube

NO.2

4

Swing Rotor6×1200ml4200r/min5600xgOval cup

NO.3

5

Swing Rotor6×1000ml4200r/min5600xgRound cup

NO.4

2

Swing Rotor4×1500ml4200r/min5600xgOval cup
