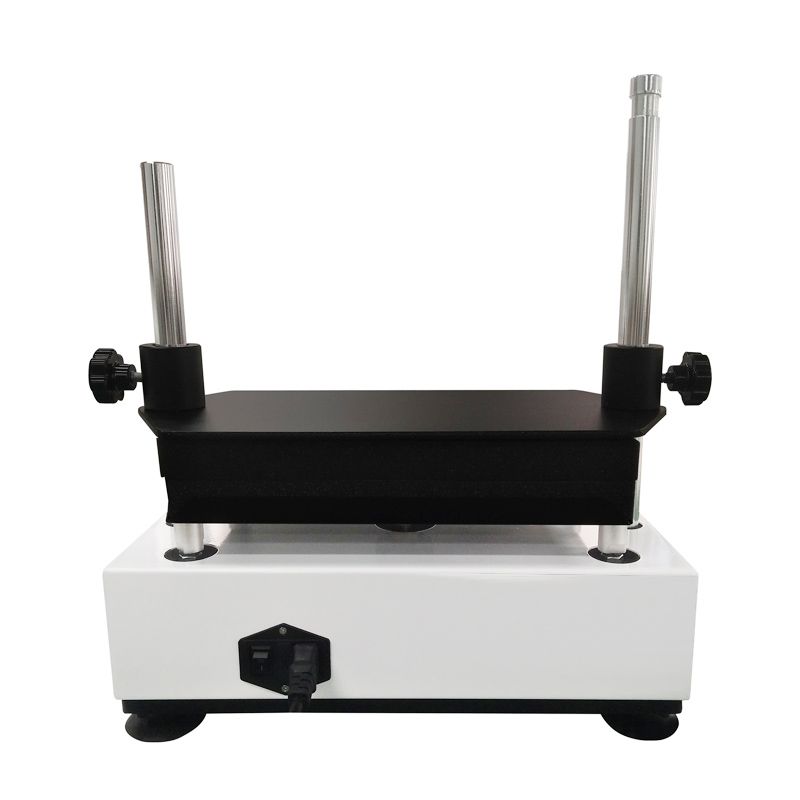

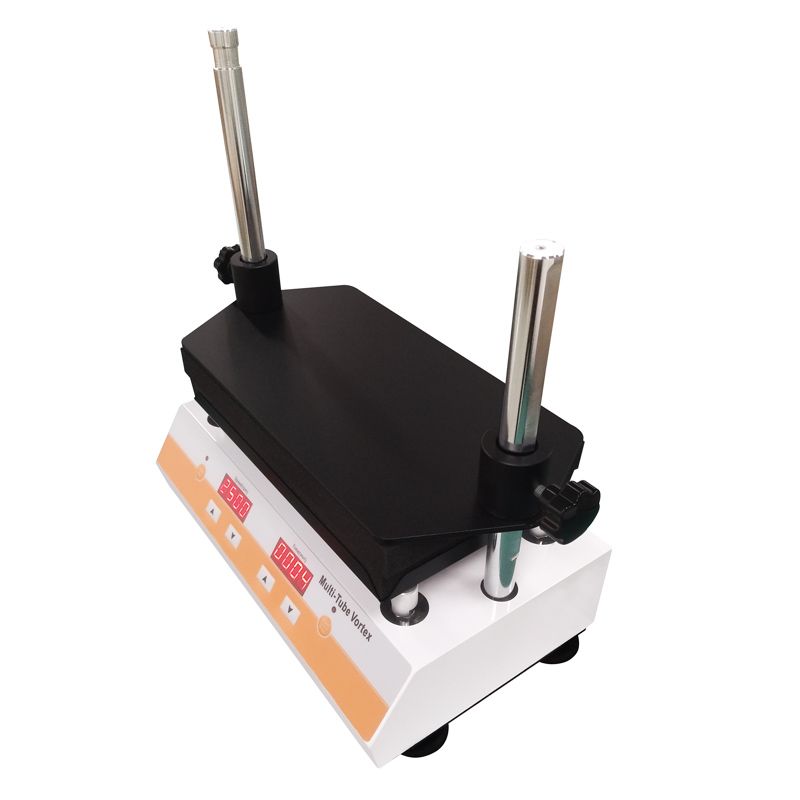

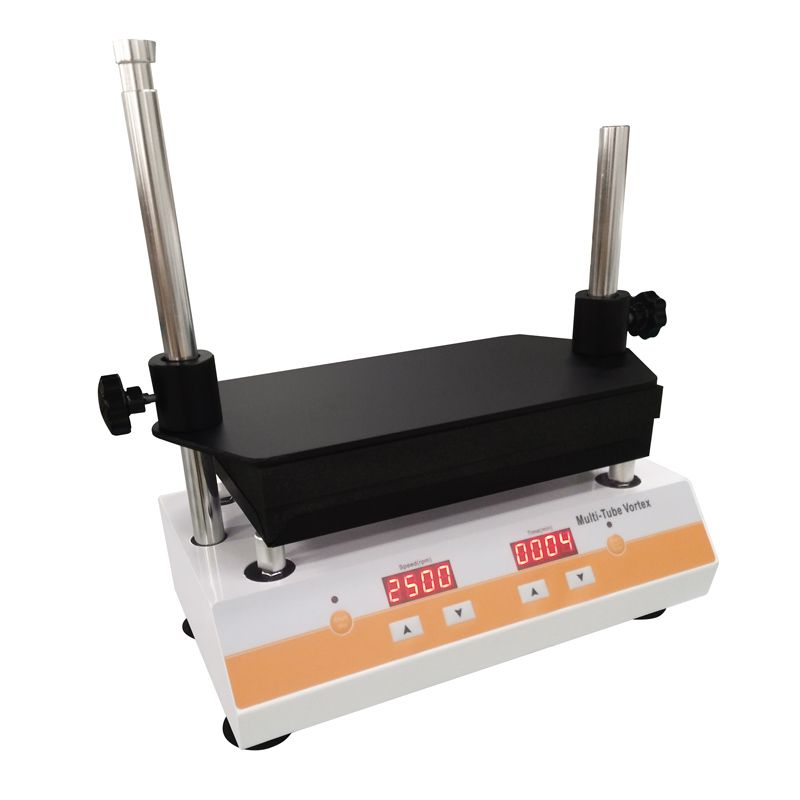

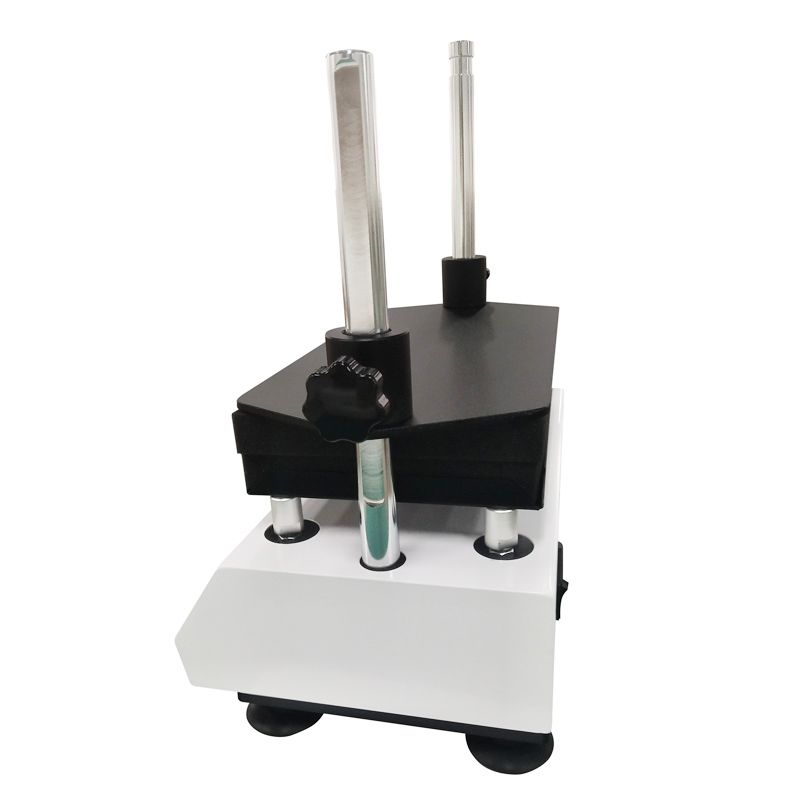

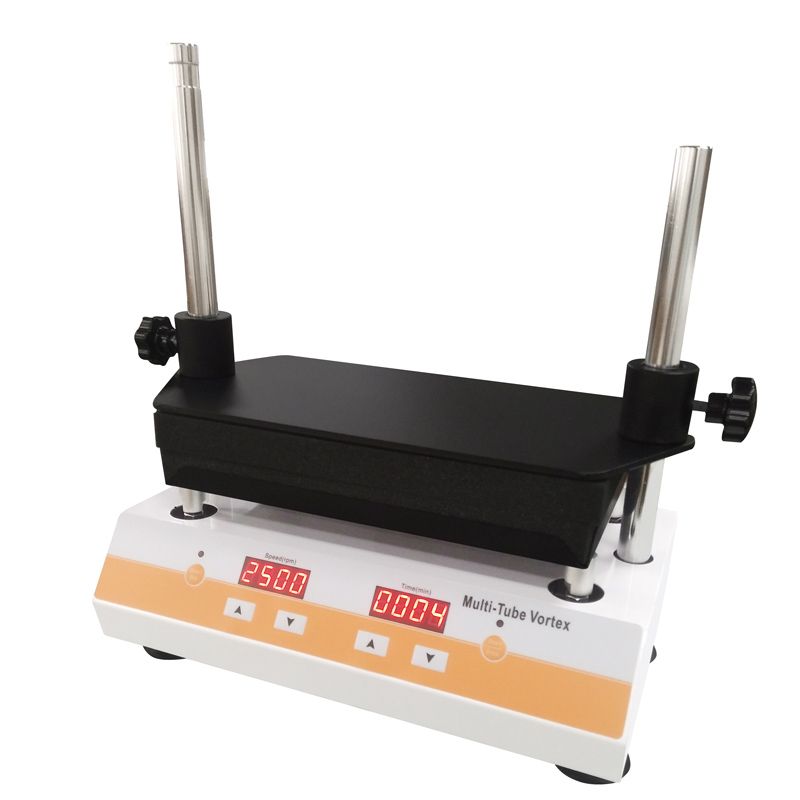

MDH12 Multi-Tube Vortex Mixer
| Applications: | For the food safety test of pesticide residue, veterinary drug residue, food additives |
| Place of Origin: | China |
| Brand Name: | MKE |
| Model Number: | MDH12 |
| Certification: | CE, ISO13485,ISO9001:2015 |
| Warranty | 1 year warranty for the whole machine. |
- Description
- Video
- Technical Specifications
- Competitive Advantage
MDH12 multi-tube vortex mixer is mainly for the food safety test of pesticide residue, veterinary drug residue, food additives, and the drug analysis and R&D. Unmatched advantages in handling big quantities of samples. Time and labor saved. Automatic mixing improves the repeatability of experimental methods and the recovery rate of tested samples.
| Minimum Order Quantity: | 1 |
| Price: | To be negotiated |
| Packaging Details: | Plywood Box |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300sets/month |
● One time 50 samples can be mixed. Standard supply is 10 ml x 50 holes, 15 ml x 50 holes, 20 ml x 50 holes. Non-standard size can be ordered for different tube requirements.
● User-friendly program design. Continuous/time setting/ touch 3 operation modes set for more convenience. Operation ends with beeping sound.
● Perfect structure design ensures sufficient counterweight and circular eccentric balanced operation. Stable and quiet working platform for different samples mixing.
Parts:
| Item | Sizes | Note | |
| MDH12-1 |  | 10mlx50 hole(diameter 10mm ) | Standard |
| MDH12-2 |  | 15mlx50hole (diameter 15mm ) | Standard |
| MDH12-3 |  | 20mlx50hole (diameter 20mm) | Standard |
| Control mode | PWM stepless speed adjustment | Operation mode | Continuous/time setting/ touch |
| Vibration mode | Orbit | Orbit diameter | 3.6 mm |
| Rotational speed | 500 ~ 2500 r/min | Rotational speed accuracy | ±15rpm |
| Time function / display | Digital timing 1s-999min; continuous, time setting, touch | Speed adjustment/display | Increments of 10 rpm/ all sections |
| Min. speed acceleration time | ≈15 seconds | Min. speed deceleration time | ≈13 seconds |
| Max. Load | 5kg | Power supply | AC100-250V/50/60Hz |
| Overall power | 60W | Overall dimensions/Weight | 240×420×430mm(L×W×H)/13kg |
1.Professional manufacturer, competitive price.
2.ISO9001:2015 Certification, CE Certification, all machines undergo strict quality testing and good packaging before transportation.
3.Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.
4.We can also offer customized solutions for clients' special requirements. Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
