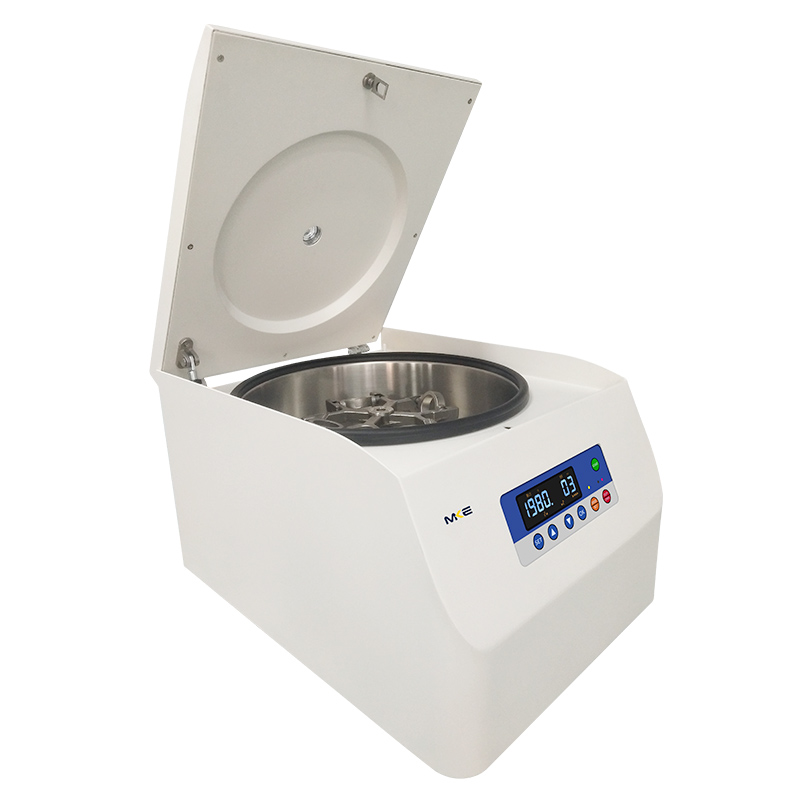

Benchtop Centrifuge with Low Speed and Robust Construction for Longevity

Applications:Hospitals,Veterinary clinics,Food labs,Universities & colleges, Pharmaceutical labs, Cell culture labs,Infant stations
Max.Speed5000 rpm
Max.RCF4053xg
Max.Capacity4*100ml swing out rotor
Matched RotorsFixed angle rotors + Swing out rotor
DisplayLCD
Model Number:T5-L (old model:KC-50X)
Certification:CE, ISO13485,ISO9001, SFDA
Warranty1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty.
  • Description
  • Video
  • Technical Specifications
  • Rotors and Accessories
  • Competitive Advantage

The benchtop centrifuge T5-L combines advanced technology with high capacity. It is available with numerous swing-out and fixed-angle rotors. It can fit tubes 15ml, 50ml and vacuum blood collection tubes. The extensive range of accessories can accommodate tubes and flasks from 2 ml to 100 ml.

The maximum RCF of 4,053 x g is suitable for many application areas in clinical diagnostics, veterinary medicine, pharmaceutics, environmental analysis and industrial production, as well as universities and research facilities.

Design

● Metal housing, metal lid, and 304# stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.

● Observations window on lid for speed calibration and noise measurement.

● Microprocessor control with frequency conversion A.C. motor drive

● LCD Display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.

● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.

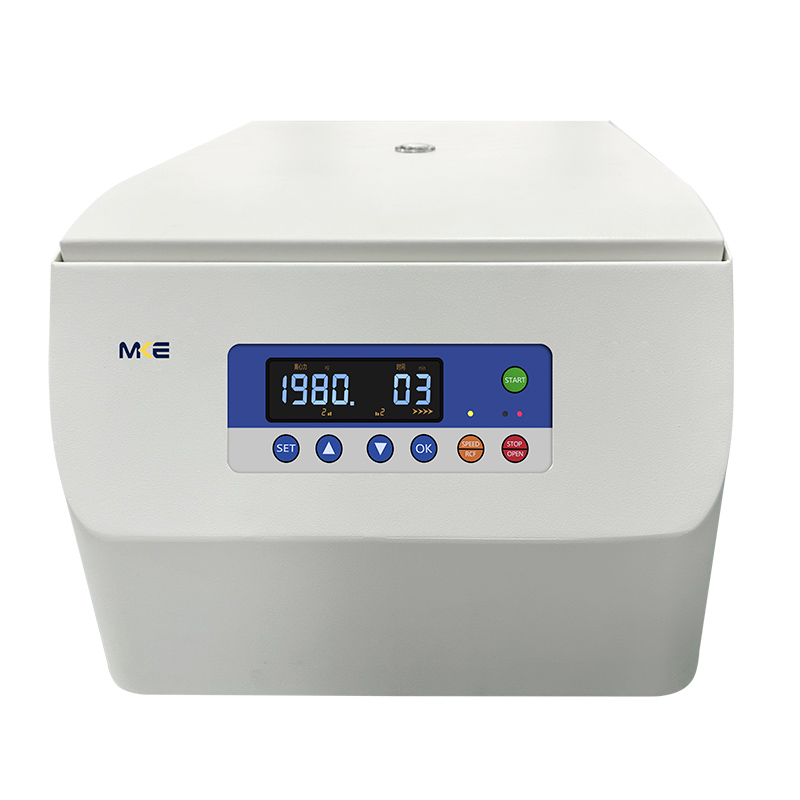

T5-L Lab Centrifuge Machine

User friendly

● Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.

● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.

● Automatic lid-locking and holding during rotor run

● Easily exchangeable rotors

● Automatic troubleshooting with indication of error code and alarm on the screen.

● “Mute”patent technology. Noise level lower than 55 decibel at the highest rotational speed.

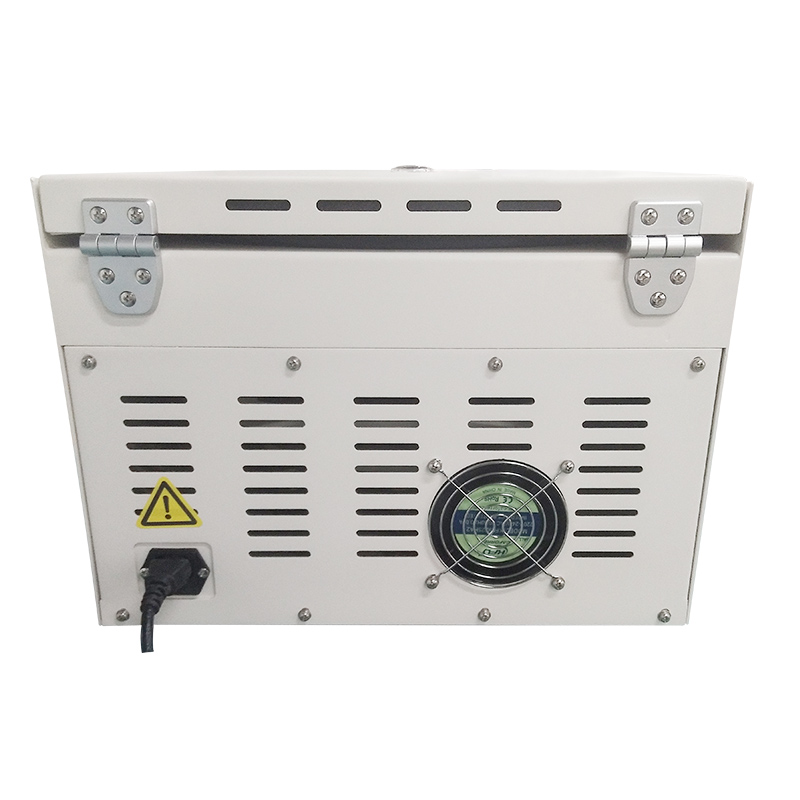

T5-L Lab Centrifuge Machine

Safety

● Produced according to international safety regulations (e.g. IEC 61010)

● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.

● Emergency lid-lock release when power failure.

● Gas hinge for lid drop protection.

● Safety protections are made for the over speed etc to ensure the man machine safety.

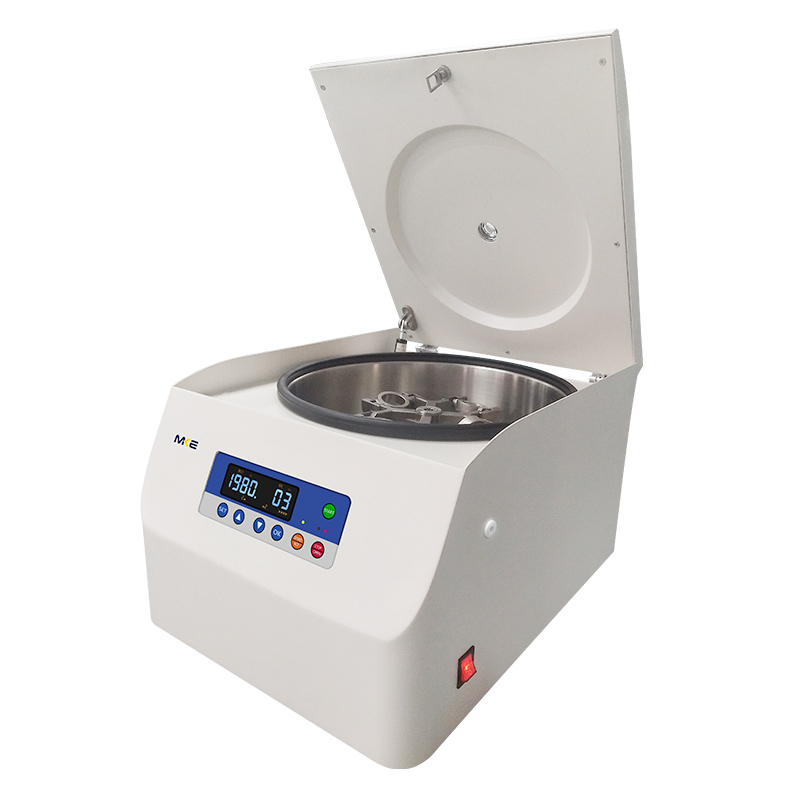

T5-L Lab Centrifuge Machine

Speed range(rpm)0-5000rpm adjustableSpeed accuracy±10rpm
Max Capacity(ml)4*100mlRCF range (xg)0-4053xg adjustable
DisplayLCDTime range0-99minutes 59 s
Noise(dBA)≦55dB(A)Acceleration /Deceleration rates0-- 9
Dimension(mm)500x400x300mmMotorFrequency Converter motor
Net weight(without rotor)25KGSPower supplyAC220V,50HZ,5A,250W
No.ItemCapacityMax. speedMax. RCFNote
NO.13Angle rotor12×15/10ml5000r/min3047xgPP/PC tube
Adapter12×5/2mlVacuum blood collection tube
NO.24Angle rotor6×50ml5000r/min3354xgPP/PC tube
Adapter6×15/10mlPP/PC tube
Adapter6×5/2mlVacuum blood collection tube
NO.35Angle rotor24×15/10ml5000r/min3354xgPP/PC tube
Adapter24×5mlVacuum blood collection tube
Adapter24×2mlVacuum blood collection tube
Adapter24×1.5mlPP/PC tube
NO.46Swing rotor24×15/10ml5000r/min4053xgPP/PC tube
Adapter24×5mlVacuum blood collection tube
Adapter24×2mlVacuum blood collection tube
Adapter24×1.5mlPP/PC tube
NO.57Swing rotorSteel frame rotor4000r/min2593xgPP/PC tube
Frame4×6×15mlPP/PC tube
Frame4×50/100mlPP/PC tube
Adapter4×1×15/10mlVacuum blood collection tube
Adapter4×3×5/2mlVacuum blood collection tube
Adapter4×4×1.5mlPP/PC tube
未命名-4

1. Professional centrifuge manufacturer, competitive price.

2. ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.

3. Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.

4. We can also offer customized solutions for clients' special requirements.

5. Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
