Low Speed Centrifuge 100mm 75mm Blood Collection Tube Separation Simultaneously

Applications:Industrial labs,Hospitals, Veterinary Clinics, Food Labs, Universities & Colleges, Pharmaceutical Labs, Cell Culture Labs
Max.Speed6000rpm
Max.RCF6080xg
Max.Capacity4*1000ml
Matched RotorsFixed angle rotor, swing bucket
DisplayLCD
Model Number:FRBSA6(old model:MK650R)
Certification:CE, ISO13485,ISO9001, SFDA
Warranty1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty.
  • Description
  • Video
  • Technical Specifications
  • Rotors and Accessories
  • Competitive Advantage

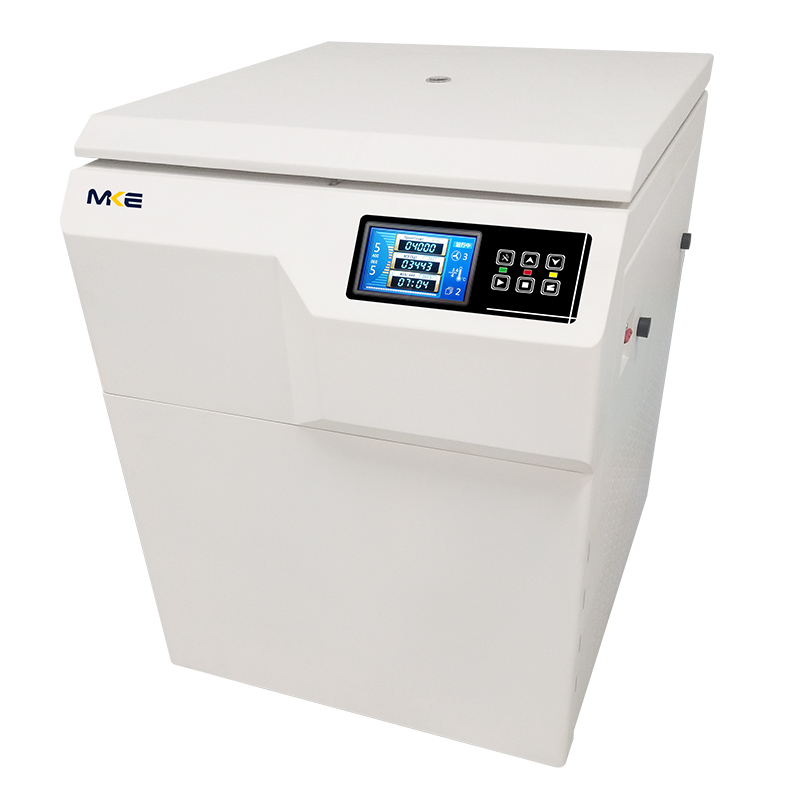

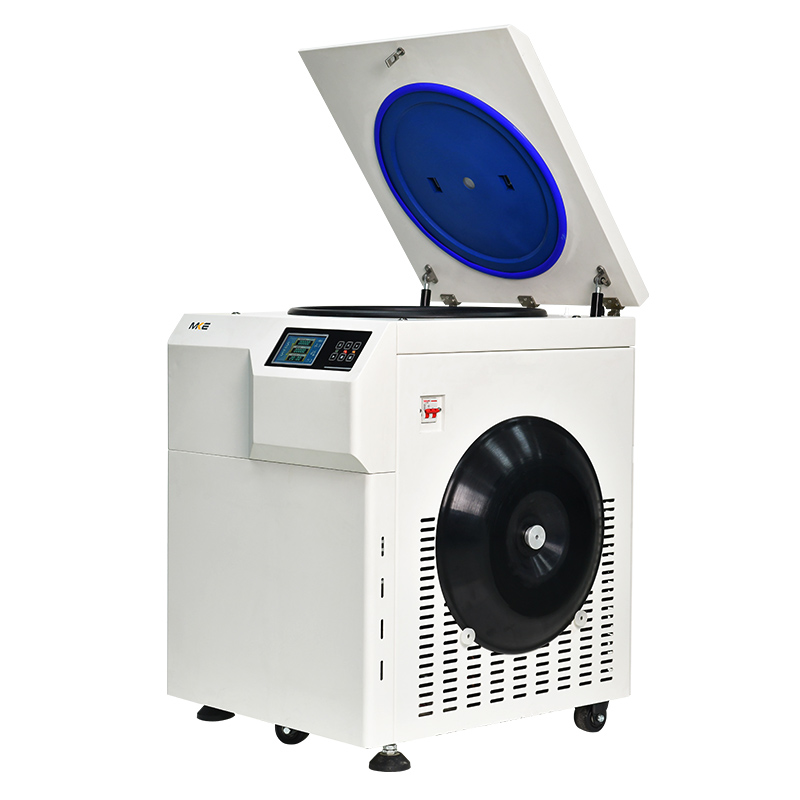

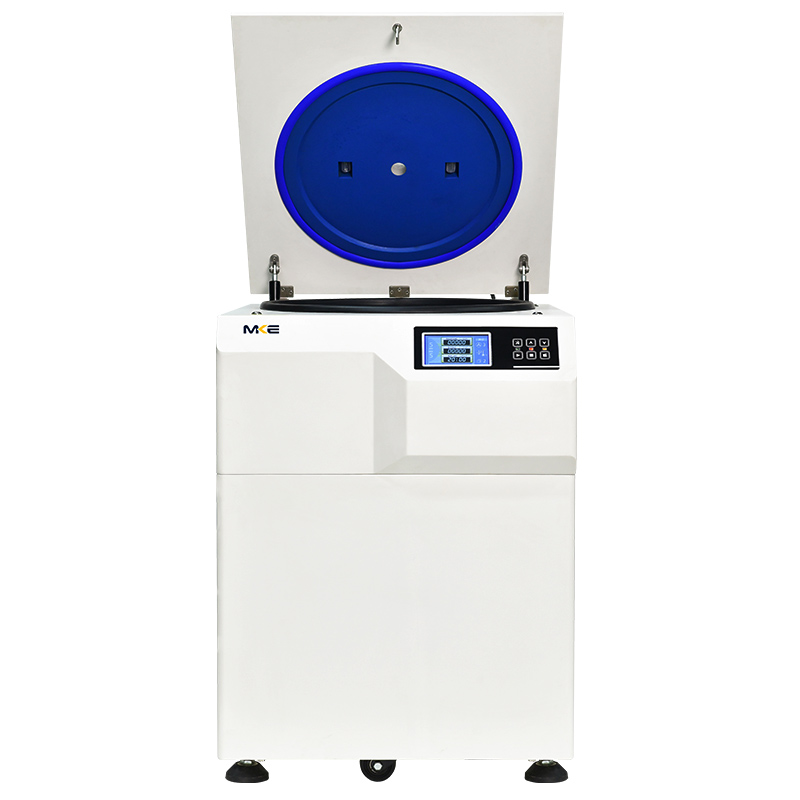

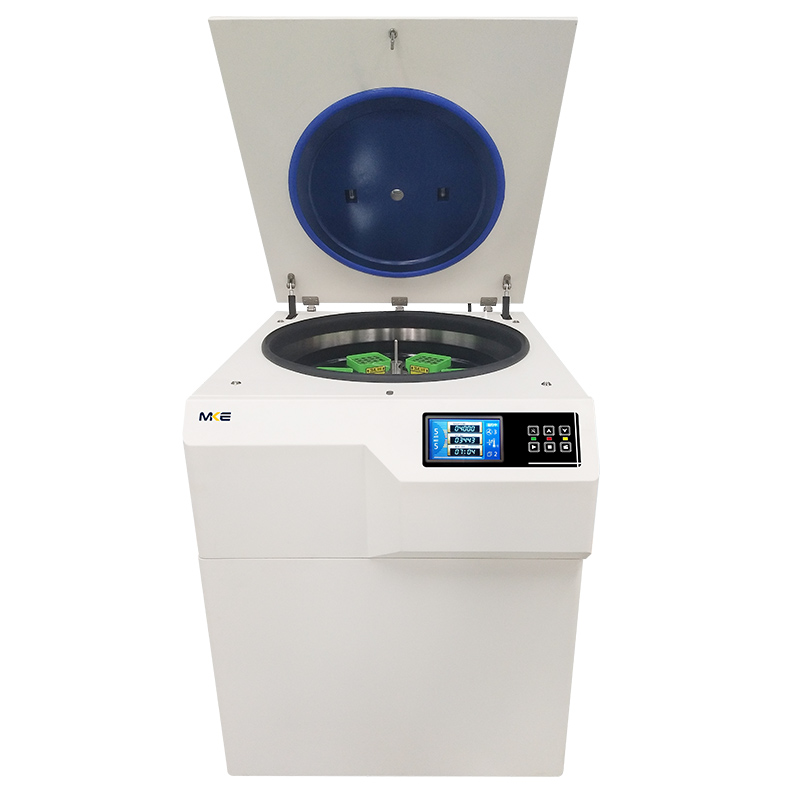

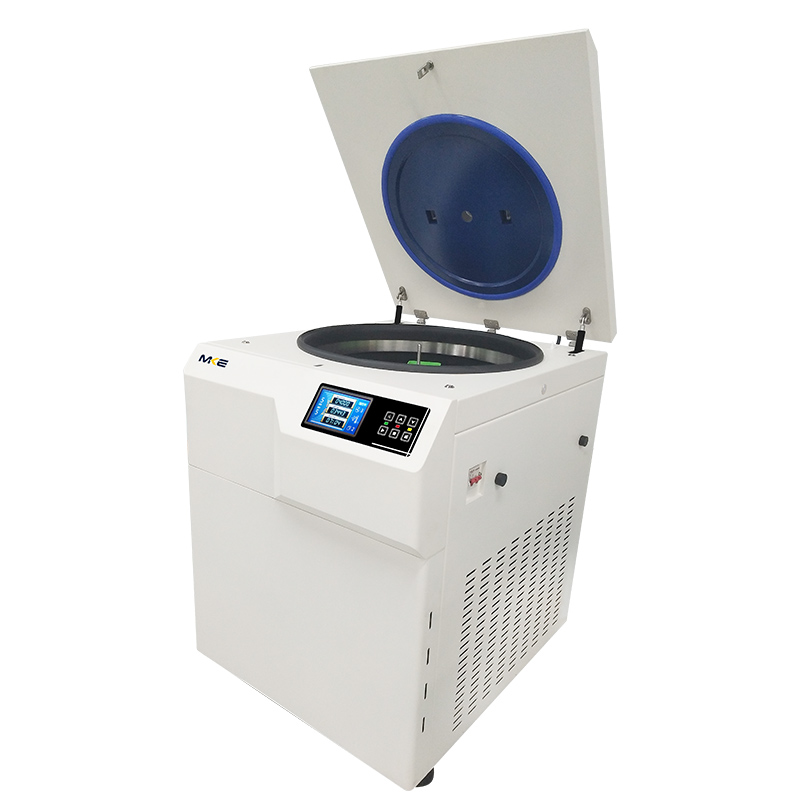

Floor standing refrigerated centrifuge FRBSA6(old model:MK650R) which can process the large capacity fixed rotor such as4*1000ml and can also process the swing out rotor ,widely used in the the fields of blood stations, pharmaceutical factories, biochemistry, biological products, etc. It is the ideal instrument for blood separation, protein precipitation and cell collection and conforms to CE security certification, ISO9001 and 13485 quality certification.

Design

● Metal housing, metal lid, and stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.

● Observations window on lid for speed calibration and noise measurement.

● Microprocessor control with frequency conversion A.C. motor drive

● LCD Display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.

● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.

● Bio-safety:gas-tight rotating head that can be sterilized at high temperature, centrifugual cavity with ultraviolet sterilization function, enter the sterilization state after turning on the machine.

● Multi-layers design for adapter, workable for 100mm and 75mm tube, automatically take off the lid, improve efficiency.

● Bio-safety: gas-tight rotating head that can be sterilized at high temperature, centrifugal cavity with ultraviolet sterilization function, enter the sterilization state after turning on.

FRBSA6 refrigerated Centrifuge

User friendly

● Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.

● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.

● Automatic lid-locking and holding during rotor run

● Easily exchangeable rotors, special rotor connector which makes it easy to load and unload rotor.

● Automatic troubleshooting with indication of error code and alarm on the screen.

● “Mute”patent technology. Noise level lower than 55 decibel at the highest rotational speed.

● Automatic rpm/rcf conversion

● Automatic rotor identification system, coded rotor identification prevents the rotor from over speeding.

● CFC free refrigeration system, Pre-cooling feature, Precise temperature control up to – 20°C.

FRBSA6 refrigerated Centrifuge

Safety

● Produced according to international safety regulations (e.g. IEC 61010)

● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.

● Emergency lid-lock release when power failure(very useful in an unexpected power interruption).

● Gas hinge for lid drop protection.

● Safety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.

FRBSA6 refrigerated Centrifuge

Speed range(rpm)0-6000rpm adjustableTime range1-99minutes 59s adjustable
Max Capacity(ml)4*1000mlSpeed accuracy±10r/min
RCF range (xg)0-6080xg adjustableACC/DEC1-10 rates
Temperature control range-20℃~+40℃Temperature control accuracy±1℃
Noise(dBA)≦58dB(A)Net weight(without rotor)200KGS
Power supplyAC220V,50HZ,10A, 1000WDimension(mm)750x620x900mm(LxWxH)

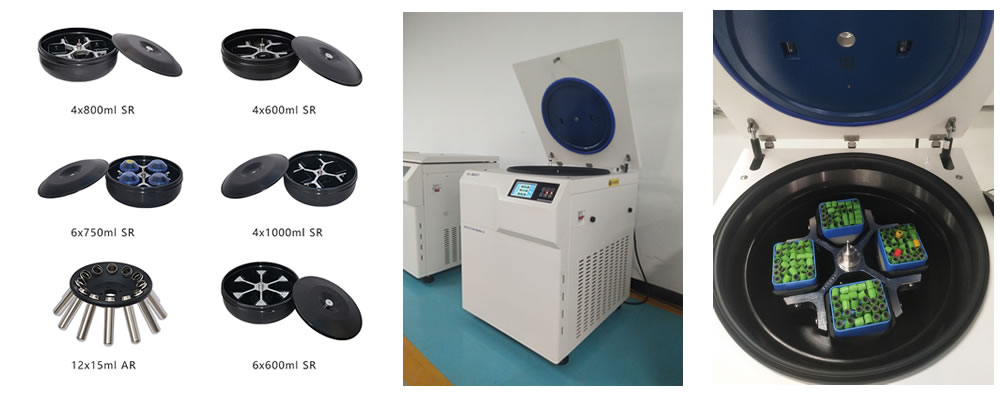

No.ItemMax. capacityMax.speedMax.RCFNote

NO.1

2

Angle rotor12x15/10/5ml6000r/min6080xgPP/PC tube
Adapter12x2mlPP/PC tube

NO.2

13

Swing bucket4x600ml4000r/min3354xgSquare cup with wind cover
Adapter4x25x5/2mlVacuum blood collection tubes
Adapter4x12x15/10mlPP/PC tube
Adapter4x5x50mlPP/PC tube
Adapter4x4x100mlPP/PC tube

N0.3

14

Swing bucket4×800ml4000r/min3443xgSquare cup with wind cover
Adapter4×30×5/2mlVacuum blood collection tubes
Adapter4×16×15/10mlPP/PC tube
Adapter4×6×50mlPP/PC tube
Adapter4×4×100mlPP/PC tube

NO.4

10

Swing bucket6×600ml4000r/min3400xgSquare cup with wind cover
Adapter6×25×5/2mlVacuum blood collection tubes
Adapter6×12×15/10mlPP/PC tube
Adapter6×5×50mlPP/PC tube
Adapter6×4×100mlPP/PC tube

NO.5

15

Swing bucket4×1000ml4000r/min3578xgOval cup with wind cover
Adapter4×42×5/2mlVacuum blood collection tubes
Adapter4×23×15/10mlPP/PC tube
Adapter4×7×50mlPP/PC tube
Adapter4×4×100mlPP/PC tube

NO.6

06

Swing bucket4×750ml4000r/min3443xgGas tightness cup with wind cover
Adapter4×28×5/2mlVacuum blood collection tubes
Adapter4×15×15/10mlPP/PC tube
Adapter4×5×50mlPP/PC tube
Adapter4×3×100mlPP/PC tube
未命名-3

1.Professional centrifuge manufacturer, competitive price.

2.ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.

3.Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.

4.We can also offer customized solutions for clients' special requirements.

5.Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
