HOT PRODUCTS

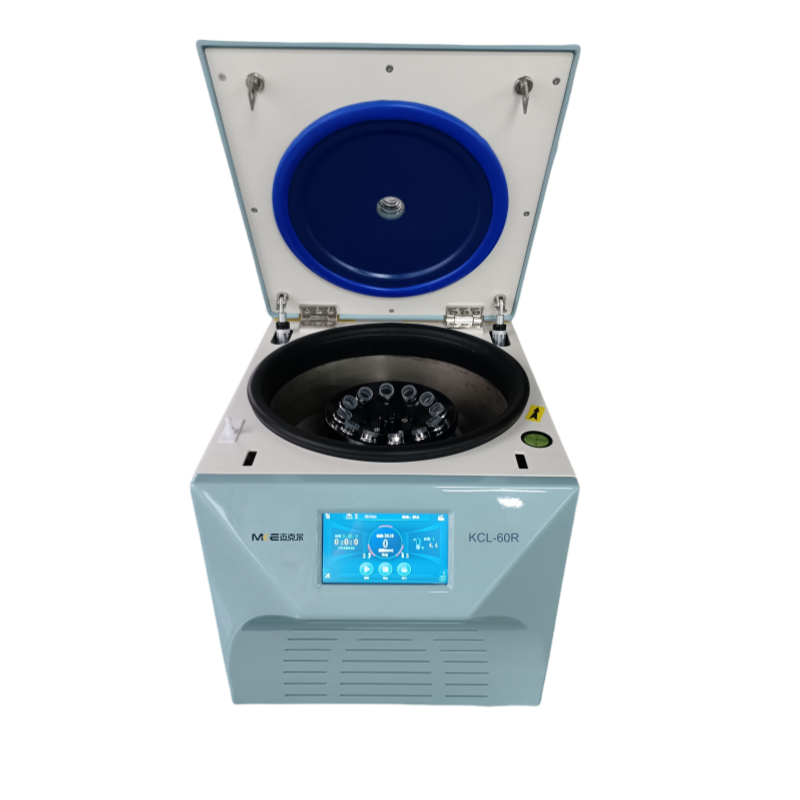

Benchtop Low Speed Micro Refrigerated Centrifuge
| Applications | Blood collection trolleys, Blood collection houses |
| Max.Speed | 6000rpm |
| Max.RCF | 4860xg |
| Max.Capacity | 4*100mlswing bucket rotor |
| Matched Rotors | Fixed angle rotors +Swing outrotor |
| Display | TFT touch five-inch colour screen display |
| Model Number: | KCL-60R |
| Certification: | CE, ISO13485,ISO9001, SFDA |
| Warranty | 1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty. |
- Description
- Technical Specifications
- Rotors and Accessories
- Competitive Advantage
Blood collection trolleys or houses may be used by a variety of personnel, somicrocentrifugeKCL-60Rdesigned for this purpose are typically fast and efficient, with high spin speeds and short cycle times,easy to use and intuitive.
It haspre-programmed settings that make it easy to spin the blood correctly.Itprocess blood quickly to ensure that it remains viable for medical use.
Design
Metal housing, metal lid, and stainless steel centrifuge chamberareautoclave-ableand resistant detergents and disinfection liquids.
Observationswindow on lid for speed calibration and noise measurement.
Microprocessor control withfrequency conversion A.C. motor drive.
Adopt high efficiency environmental protection refrigeration system, no environmental pollution, high precision temperature control.
Touch five-inch colour screen display all parameters of the instrument operation, the user can set the centrifugal speed and centrifugal time arbitrarily.
Centrifuge operating system with a password to prevent misuse, external USB interface, can track and trace more than 1000 sets of centrifugal data.
Light weight, small size, simple, beautiful and generous appearance, unique suction cup feet can firmly grasp the placement surface, even when driving without worrying about centrifuge movement.
Four suction cup feet can be adjusted high and low, while the centrifuge built-in level, blood collection vehicle in the case of uneven ground can still adjust the centrifuge to a stable state of use, the best centrifugal effect, the use of safer.
Equipped with 4 x 100ml horizontal rotor, optional nucleic acid centrifuge tubes, vacuum blood collection tubes, 15ml, 10ml, 8ml, 5ml, 2ml and other centrifuge tube adapters.
User friendly
CFC free refrigeration system,Pre-cooling feature,Precise temperature control up to –9°C.
Programmable and storable, stores up to 1000 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.
Automatic lid-locking and holding during rotor run.
Easily exchangeable rotors.
Automatic troubleshooting with indication of error code and alarm on the screen.
The highest speed operation noise is less than 50 decibels.
Safety
Produced according to international safety regulations (e.g. IEC 61010)
Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
Emergency lid-lock releasewhen power failure.
Gas hinge for lid drop protection.
lSafety protections are made for the over speed, over heating(motor, chamber), imbalance etc to ensure the man machine safety.
| Speed range(rpm) | 0-6000rpm adjustable | Time range | 1s-99minutes adjustable |
| Max Capacity(ml) | 4*100ml | Speed accuracy | ±10r/min |
| RCF range (xg) | 0-4860xg adjustable | ACC/DEC | 1-10rates |
| Temperature control range | -10℃～+40℃ | Temperature control accuracy | ±1℃ |
| Noise(dBA) | ＜50dB(A) | Net weight(without rotor) | 42KGS |
| Power supply | AC220V,50HZ,10A,500W | Dimension(mm) | 640x340x370mm(LxWxH) |
| No. | Item | Max. capacity | Max.speed | Max.RCF | Note |
 | Angle rotor | 24x15/10/5ml | 6000r/min | 4860xg | PP/PC tube |
| Adapter | 24x2ml | PP/PC tube | |||
 | Swingrotor | steel frame rotor | 5000r/min | 3437xg | PP/PC tube |
| Swing frame | 4x100ml | ||||
| Swing frame | 4x5x5ml | PP/PC tube | |||
| Adapter | 4x4x8/10ml | PP/PC tube |
1. Professional centrifuge manufacturer, competitive price.
2. ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.
3. Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.
4. We can also offer customized solutions for clients' special requirements.
5. Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
