HOT PRODUCTS
Floor Standing Large Capacity Centrifuge 6*1000ml 10000rpm Pre-cooling Function
| Applications: | Industrial labs,Hospitals, Veterinary Clinics, Food Labs, Universities & Colleges, Pharmaceutical Labs, Cell Culture Labs |
| Max.Speed | 10000rpm |
| Max.RCF | 17800xg |
| Max.Capacity | 6×1000ml |
| Temperature control range | -20℃～+40℃ |
| Matched Rotors | Fixed angle rotors |
| Display | LCD |
| Model Number: | GR-10C |
| Certification: | CE, ISO13485,ISO9001, SFDA |
| Warranty | 1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty. |
- Description
- Technical Specifications
- Rotors and Accessories
- Competitive Advantage
Floor standing refrigerated centrifuge GR-10C which can process the large capacity fixed rotor such as 6*1000ml and can also process the swing out rotor ,widely used in the the fields of blood stations, pharmaceutical factories, biochemistry, biological products, etc. It is the ideal instrument for blood separation, protein precipitation and cell collection and conforms to CE security certification, ISO9001 and 13485 quality certification.
Design
● Autoclave-able steel body and stainless steel chamber with super hard aluminum alloy rotor for good sealing and sterilization resistance.
● Microprocessor control, frequency conversion motor drive .
● Observations window on lid for speed calibration and noise measurement.
● Touch color large screen display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.
● With wind cover shield, which covers the rotor and helps to prevent air currents from affecting the specimens being processed.
● The rotor is made of super hard aluminium alloy by special technology, with good sealing performance and unlimited high temperature and high pressure sterilization resistance.
● The door cover and body are equipped with double-layer silicone seal ring
User friendly
● CFC-free cooling system with high efficiency environmental protection refrigeration system and dual circuit control for precise temperature control
● Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.
● Provides the 10-speed acceleration and deceleration curves, to effectively avoid secondary sedimentation, with better centrifugation effect.
● Automatic lid-locking and holding during rotor run
● Easily exchangeable rotors, special rotor connector which makes it easy to load and unload rotor.
● Self-diagnostic system with high-strength chamber-coating and protective
● "Mute" patented technology, the highest speed operation is less than 58 decibels.
● Automatic rpm/rcf conversion
● Automatic rotor identification system, coded rotor identification prevents the rotor from over speeding.
Safety
● Produced according to international safety regulations (e.g. IEC 61010)
● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
● Automatic rotor locking function, no need to tighten the rotor head, automatic rotor identification system to prevent the wrong rotor on the run, effective protection of personnel safety and stability of the centrifuge.
● Emergency lid-lock release when power failure(very useful in an unexpected power interruption).
● Gas hinge for lid drop protection.
● Equipped with door cover protection, over speed, over current and advanced electronic unbalance detection system and other safety design, can be real-time monitoring of the centrifuge process to ensure the safe operation of the instrument.
| Max. Speed | 10000rpm | Motor | AC frequency conversion motor, direct drive |
| Speed accuracy | ±10rpm | Screen | Touch LCD color+digital screen |
| Max.Capacity | 6x1000ml | Control | advanced CPU control system |
| Max. RCF | 17800xg | Timer range | 1~99min |
| Daily use program | 30 | Temp accuracy | ±1℃ |
| Temp.range (at RT 25℃) | -20℃~+40℃ | Acceleration/Deceleration Rate | 10 |
| Noise | 65~68dB(A) | Power supply | AC220v 50Hz 30A,6500w |
| Net weight | 280kg | Dimension | 860×730×1200mm(L×W×H) |

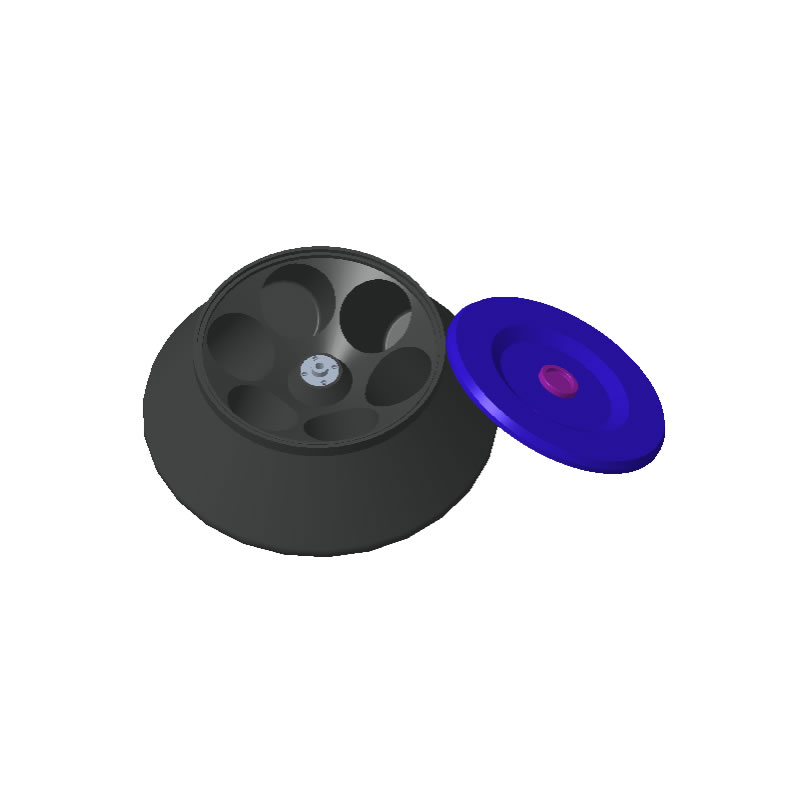

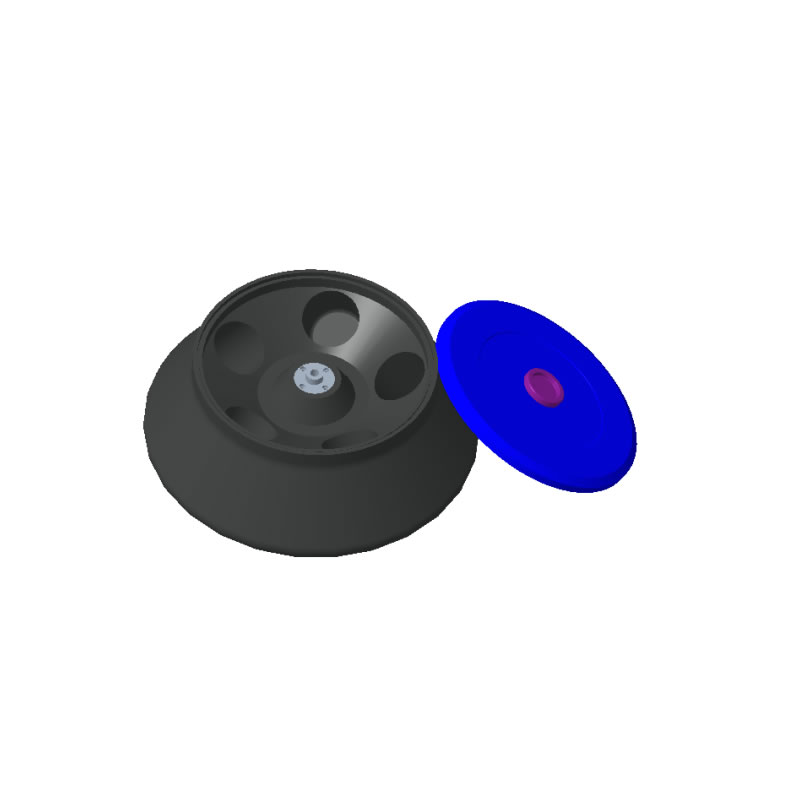

| No. | Rotor | Capacity | Max.speed | Max. RCF | Note |
NO.1
| Fixed Angle Rotor | 6×500ml | 10000r/min | 17800xg | PP/PC tube |
NO.2
| Fixed Angle Rotor | 6×1000ml | 8000r/min | 14472xg | PP/PC tube |
1.Professional centrifuge manufacturer, competitive price.
2.ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.
3.Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.
4.We can also offer customized solutions for clients' special requirements.
5.Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
